VS: Amplifier/vacuum station VS28_V2

Amplifier/vacuum station in metal casing, completely assembled and ready for use, consisting of:

- 10m power adaptor (earthed plug, CEE socket)
- Manual/automatic operation
- Stepless speed controller from 20-100%

Ideal for the following:
- Construction site cleaning, vacuuming of materials, suction of material dust during blowing-process
- Element removal
- Amplification of insulation blowing machines

Technical details:
- Dimensions: approx. 482x358x418 (LxWxH)
- Electrical connection: 230V~, 16A (fusing: Type B/Type C/screw-/melting fuse)
- Conveying pressure: approx. 320mbar (adjustable)
- Negative pressure: max. approx. 280mbar (adjustable)
- Air flow (nominal/gauged): 440/360m³/h
- Electrical power requirement: 2.8kW
- Weight: approx. 19,5kg
- Complete separation of working and cooling air, therefore better collector cooling
- Motor and electrical areas less vulnerable to dirt
- Less deformation with high levels of negative pressure (i.e. with suction operation)

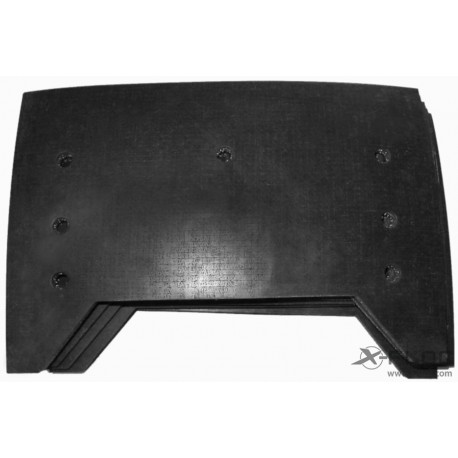

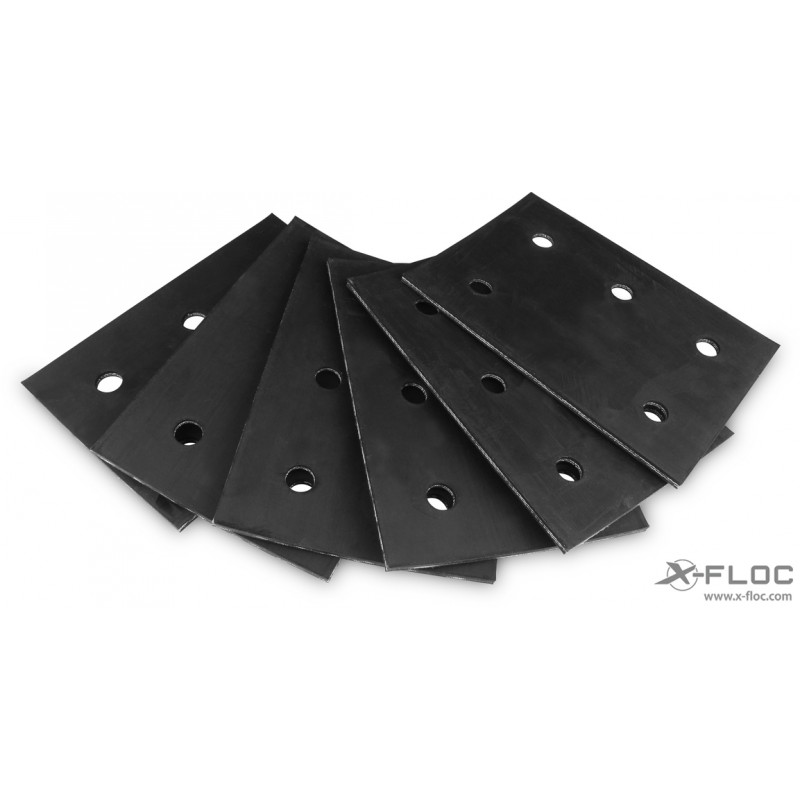

- Large filter area with easily replaceable filter mats

Optional:
- Mains voltage display, display of the applied supply voltage (prod. No. 4604)
- Compact amplifier/vacuum unit (2.8kW)- complete set (product no. 2886)

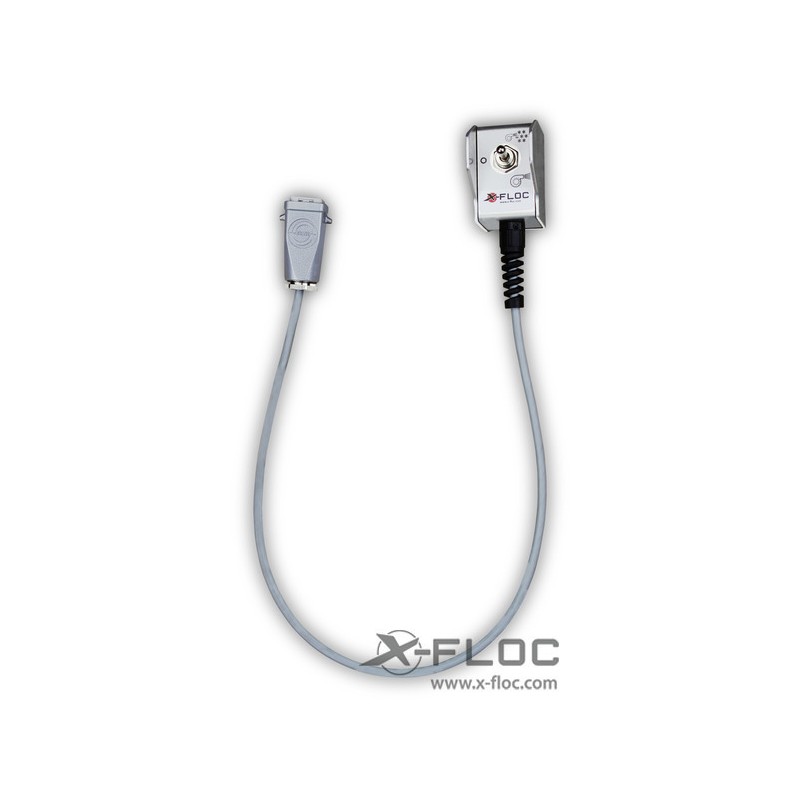

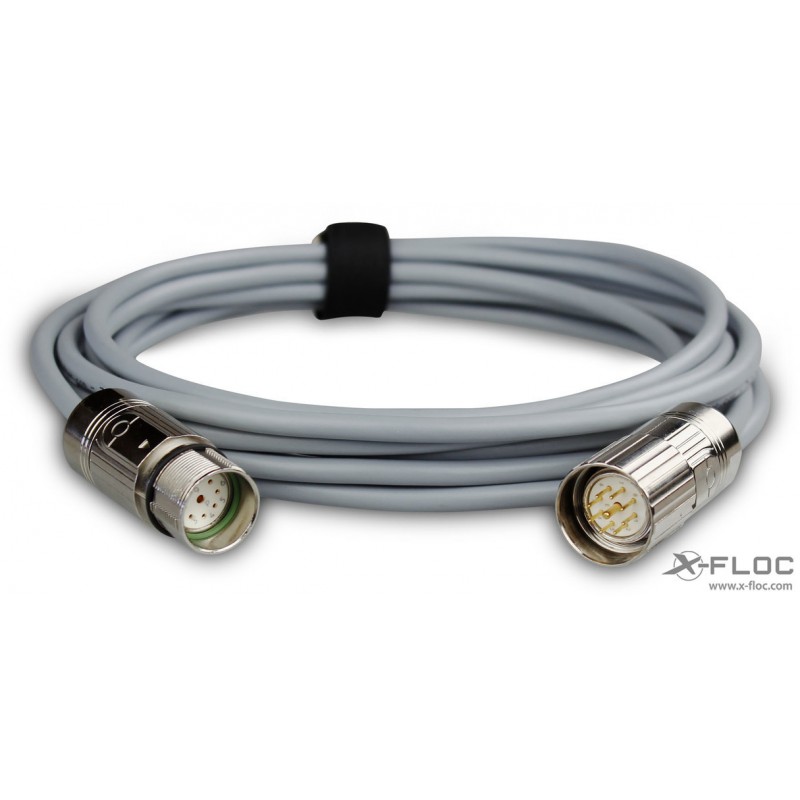

- Connection cable for automatic operation with blowing machine: L 10m, 25m, 50m
- Suction drum V 115l (product no. 1160)
- Suction drum V 250l (product no. 1160)
- Y-piece NW63/75-75 stainless steel (product no. 2221)
- VS: Connecting Set for Amplifier NW63/NW75-NW75 (product no. 4934)
- Preparation for cable / radio operation (prod no. 3864)

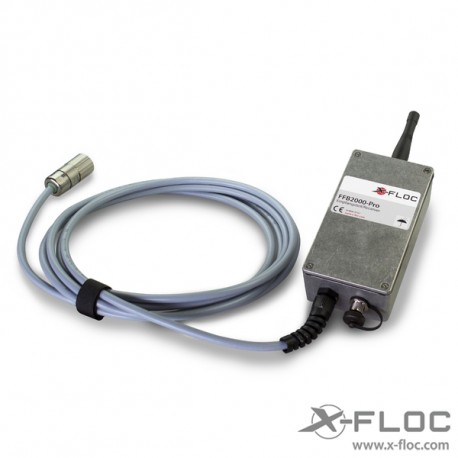

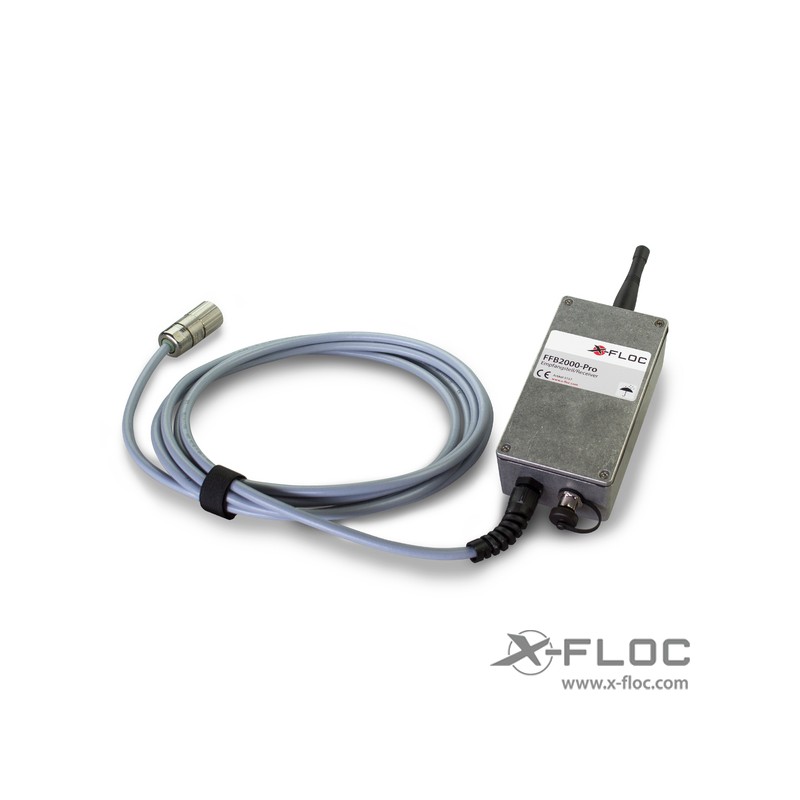

- FFB 500 - Radio remote control bidirectional (prod no. 6708 only in connection with prod no. 3864)
