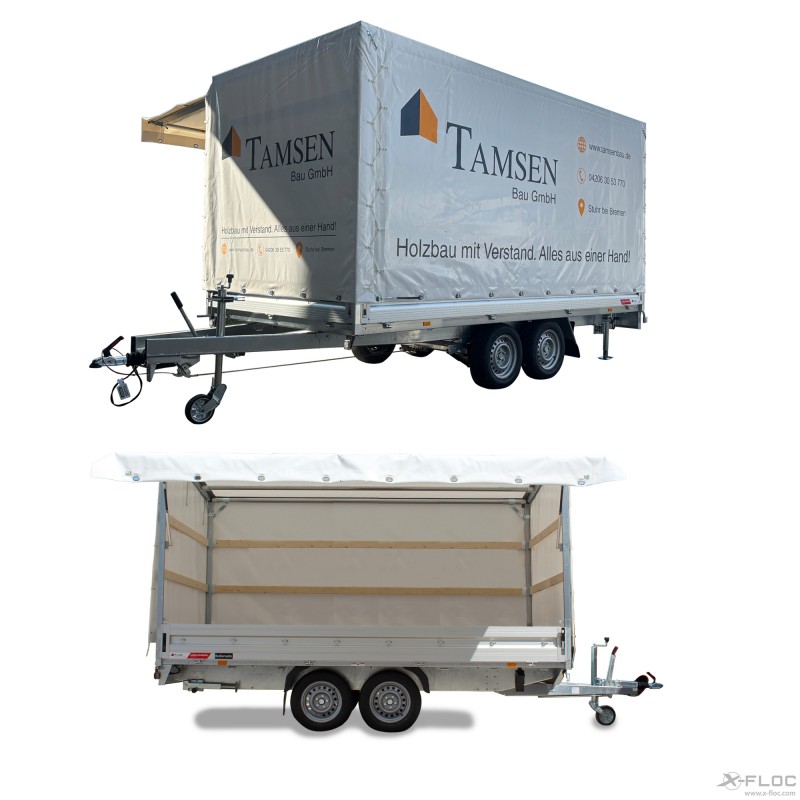

EMB: Blow-in mobile trailer tandem high-loader tarpaulin L 4.26m

Vehicle trailer with a tandem axle and a tarpaulin structure, customized for conversion into an X-Floc insulation material blow-in mobile unit. The tandem axle gives the trailer very good road holding, high stability, and the necessary payload capacity to be optimally used as a blow-in mobile unit. The structure, with the robust tarpaulin digitally printed on all four sides and the vending flap on the passenger side, protects the blowing machine technology from external weather influences such as rain, snow, and UV radiation, and allows quick access to the machine technology, the blowing tools, and any insulation material carried along. The high-quality, stable jockey wheel and the two rear telescopic crank supports ensure a secure stand on every construction site. Equipping the vehicle with shock absorbers not only qualifies it for a maximum speed of 100km/h but also provides improved driving stability and clean road holding.

----------------------------------------------------------------------
Advantages:
- Stable design for 100 km/h approval
- Integrated fold-up side flap over the entire passenger side
- Torsion-resistant longitudinal beam chassis for high directional stability
- Closed, fully welded, and hot-dip galvanized steel frame profile for optimal stability
- Reinforced automatic jockey wheel (Load capacity: 500kg)
- Anodized aluminum side walls, fully foldable and removable
- Robust and rust-free recessed stainless steel locks
- Four plug-in steel corner posts for high loads
- Optimized lashing eyes for maximum utilization of the platform area
- 8 foldable lashing recessed pockets, mounted flush in the floor frame profile
- Lashing recessed pockets each loadable up to 600 daN (kg) and DEKRA certified

----------------------------------------------------------------------
Technical Data/Scope of Delivery:
- Platform high-loader tandem
- Max. permissible total weight: 2,600kg (different weights on request)
- Platform size internal dimensions: 4260mm×2040mm×350mm (L x W x Side wall height)
- Lashing rings, 4 units/side
- Internal height of the canopy frame: 2080mm
- Aluminum side walls, foldable on all sides with a practical one-hand grip
- Platform height: 700mm
- Tires: 185/65R14
- Incl. CoC document (Certificate of Conformity) for registration in all EU member states
- Empty weight including tarpaulin structure approx. 850kg
- Incl. Telescopic crank supports at the rear
- Fold-up canopy frame (passenger side)
- Equipped with wheel shock absorbers (100km/h approval possible)
- CoC document for registration in all EU member states
- Drawbar lock for increased anti-theft protection (Material: galvanized, robust steel, includes lock and 2 keys)
- 4-sided, digital tarpaulin printing (details see below)
- 2-step aluminum platform steps, working height 400mm

----------------------------------------------------------------------
Vehicle Options/Accessories:
- Trailer: Additional lashing rings for trailer L4.26m, 2,600kg (UH) (Item No. 14148)
- Trailer: Fold-up canopy frame for trailer L4.26m, 2,600kg (UH) (Item No. 14150)

-------------------------------------------------------------------------
Options / Alternative:
- Trailer: Advertising print tarpaulin 3-sided (UHK) (Item No. 14152)
- Trailer: Advertising print tarpaulin 4-sided (UHK) (Item No. 14151)
