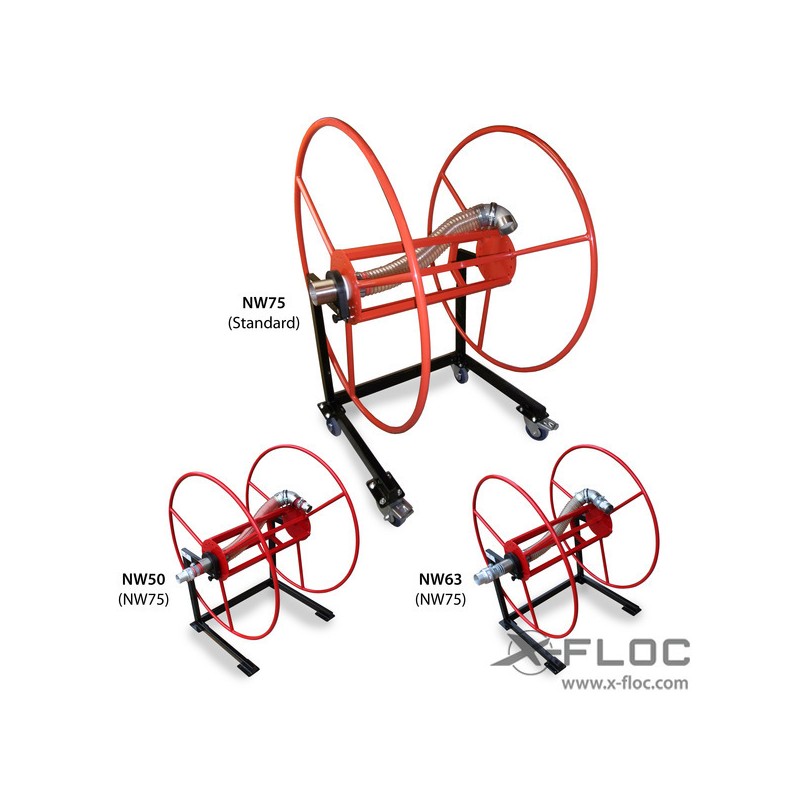

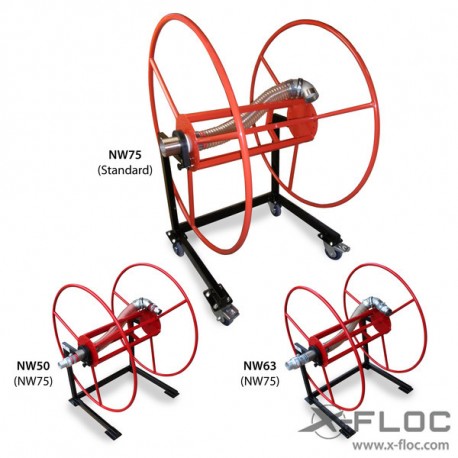

Hose reel D1000 plus

For practical rolling up and storage of delivery and blow-in hoses up to a maximum length of 130 metres, depending on the diameter. The hose diameters can be combined as required. The reel can be attached to the ceiling, wall or floor or fitted with castors.
The hose reel consists of
- a black, powder-coated steel frame with screw-on plates for ceiling, wall or floor mounting, or optionally available fixed/ swivel castors
- a red, powder-coated reel, which can be locked in the frame using locking bolts and whose lateral connection piece can be positioned on the left or right.

---------------------------------------------------------------
Technical data:
- Material: Steel
- Surface: Powder-coated
- Dimensions (WxDxH): 835 x 1154 x 1000 mm (height with castors approx. 1281 mm)
- Connection piece: NW75/3.0
- Empty weight: approx. 35kg (without castors)
- Capacity: Blowing/conveying hose NW50 (2): approx. 110m/130m
Blowing/conveying hose NW63 (2½): approx. 70m/90m
Blowing/conveying hose NW75 (3): approx. 60m/60m
Injection/conveying hose NW90 (3½): approx. 50m/50m

---------------------------------------------------------------
Accessories:
- Hose reel: NW75 (3) accessory set for connection to the blowing machine (art. no. 5845)
- Hose reel: Reel set, 2x steering/2x support (art. no. 8400)
- Hose reel: Reel set, 4x steering (art. no. 8401)
---------------------------------------------------------------
Alternative:
- Hose reel D 1000 plus (NW90) (art. no. 11948)

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Please specify the desired position of the hose connection when ordering:
(view of the unwinding side of the reel)
- left
- right
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
