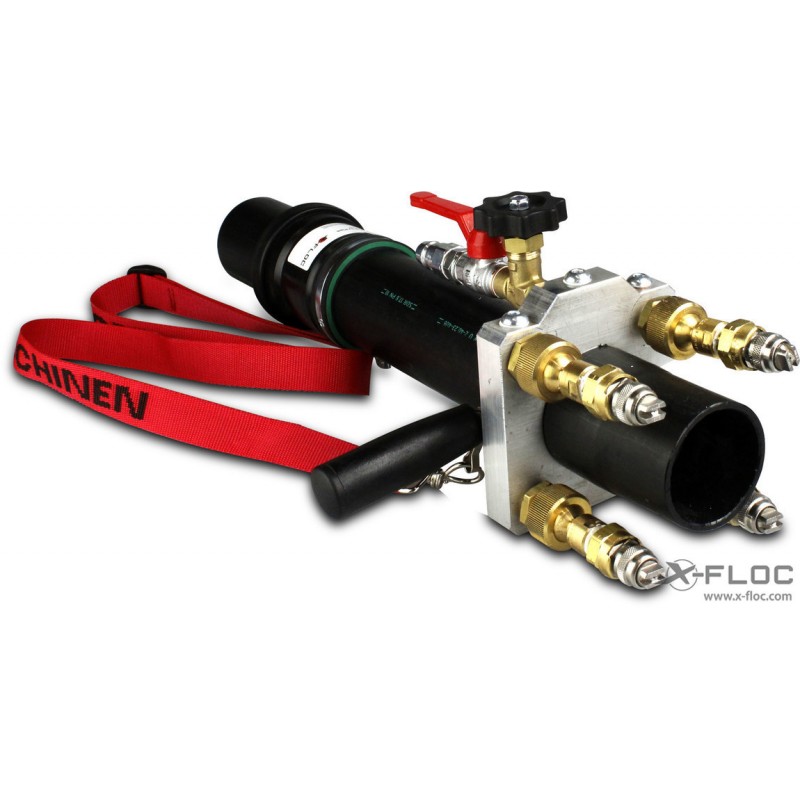

FSE: Spray pipe / Terminator NW63 (2½''), M03

Spray head with handle, one gate valve for opening, closing and regulating, completely assembled stainless steel nozzle set with ball-and-socket joint, ready for connection to a high pressure pumping system of up to 50bar, operating instructions.
Dimensions.: L approx. 750mm, D 63mm
Area of application:
- Damp open spraying of domed roofs.
- open spraying on to a wall
- open spraying on to ceilings possible in conjunction with adhesive.
Moisture input can be regulated by approx. 15-20% (based on cellulose) (before approx. 10-12%, after approx. 25-30% moisture content)
Function desciption:
The material flow (NW63, 2 ½'' hose connection) is aligned through the 2 ½'' terminator main pipe and then moistened and accelerated by the externally mounted spray nozzles (approx. 10-40 bar water pressure is recommended). It is then possible to spray the evenly moistened material over long distances with minimal dust creation.
Field of application: Large open partitions, church arches, stud walls, termoträ spraying, etc.
