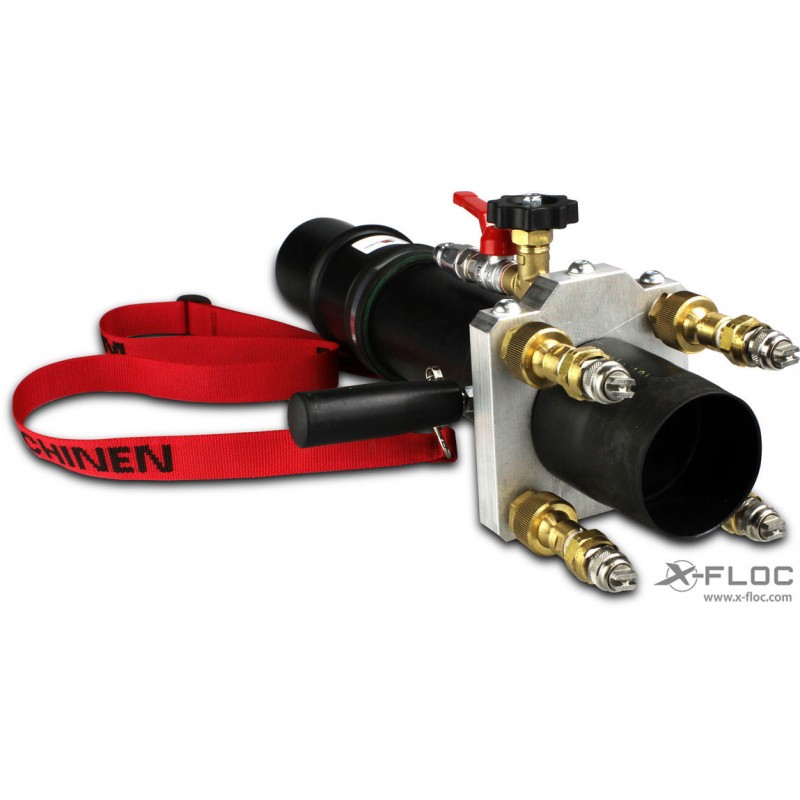

FSE: Spray pipe / terminator NW75 (3''), M03

Spray head with handle, one gate valve for opening, closing and regulating, completely assembled stainless steel nozzle set with ball-and-socket joint, ready for connection to a high pressure pumping system of up to 50bar, operating instructions. Warranty in conjunction with the X-Floc high pressure piston pump.
Dimensions: L approx. 400mm (variable), D 75mm
Area of application:
- Damp open spraying of domed roofs.
- open spraying on to a wall
- open spraying on to ceilings in conjunction with adhesive.
Moisture input can be regulated by approx. 15-20% (based on cellulose) (before approx. 10-12%, after approx. 25-30% moisture content)
Function desciption:
The material flow (NW75, 3" hose connection) is aligned through the terminator main pipe and then moistened and accelerated by the externally mounted spray nozzles (approx. 10-40 bar water pressure is recommended). It is then possible to spray the evenly moistened material over long distances with minimal dust creation.
Field of application: Large open partitions, church arches etc.
See operating instructionsB
