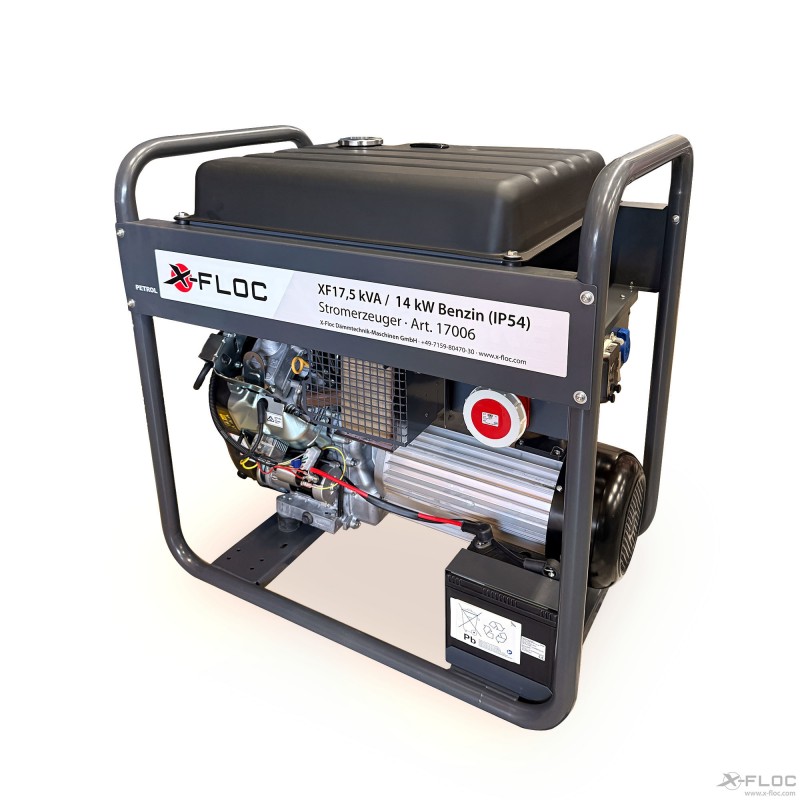

Power Generator XF17,5kVA/14kW Petrol (IP54)

Generator for operating an X-Floc insulation blowing machine and other suitable machines and consumers. Synchronous generator with protection class IP54.
As one of the few generators on the market, this unit features AVR voltage regulation across all three phases, making it completely independent of unbalanced loads and capable of handling unbalanced loads without any issues. Thanks to the integrated insulation monitoring, this generator provides outstanding protection for both operators and machinery against injuries and damage caused by potential insulation faults; the number of machines connected to the generator and the cable lengths are no longer limited.

----------------------------------------------------------------------
Features:
- Electric starter (starter battery included)
- AVR voltage regulation (electronic, +-1% tolerance, three-phase regulated)
- Insulation monitoring (no earth spike required!)
- Robust frame (transport wheel set optionally available)
- Clear and protected control and connection panel
- Fuel valve (fuel tap)
- Overload and low-oil protection
- Unbalanced load independent operation
- Oil warning light (LED)
- Ground terminal
- Complies with EU directives for noise and safety

----------------------------------------------------------------------

Connections:
- 1x 400V / 32A CEE socket
- 1x 230V / 32A CEE socket
- 1x 230V / 16A Schuko socket

Technical Data:
- 3-phase output (400V) Maximum output: 19.5 kVA / Continuous output: 17.5 kVA (14 kW)
- 1-phase output (230V) Maximum output: 8.0 kW / Continuous output: 7.2 kW
- Frequency: 50 Hz
- Engine: B&S VANGUARD (31 HP)
- Engine speed: 3000 rpm
- Cooling: Air-cooled
- Fuel: Petrol (gasoline)
- Tank capacity: 45 l
- Fuel consumption: approx. 6.5 l/h at 100% load
- Sound pressure level: 72 dB(A) (7m)
- Protection class: IP54 (certified)
- Dimensions: 900x580x890 mm (LxWxH)
- Net weight: approx. 190 kg

----------------------------------------------------------------------

Suitable for the following machine types (examples):
- EM100, EM100 + VS33, EM100 + VS55M, EM100 + VS75M
- M99, M99 + VS33, M99 + VS55M
- M99-DS, M99-DS + VS33, M99-DS + VS55M
- M99-DS-Pro, M95-DS-Pro + VS33, M99-DS-Pro + VS55M
- M95-2x230V/6,6kW
- M95-400V/7,3kW + VS33
- EM320-2x230V
- EM365-400V
- EM430-400V, EM440, EM480

----------------------------------------------------------------------

Optional Accessories on Request (selection):
- Power adapter 400V/32A, 10m coil, CEE (Art. No. 6588)
- Power adapter 230V CEE-CEE, L 10m coil (Art. No. 1483)
- Power adapter 230V Schuko-CEE, L 10m coil (Art. No. 066)
- Power adapter 400V/32A - 400V/16A, with 1.5m connecting cable (Art. No. 9115)
- Power adapter distributor power strip 400V / 32A - 2x400V / 16A (Art. No. 7273)
- Power adapter distributor 400V-32A (Art. No. 3404)
