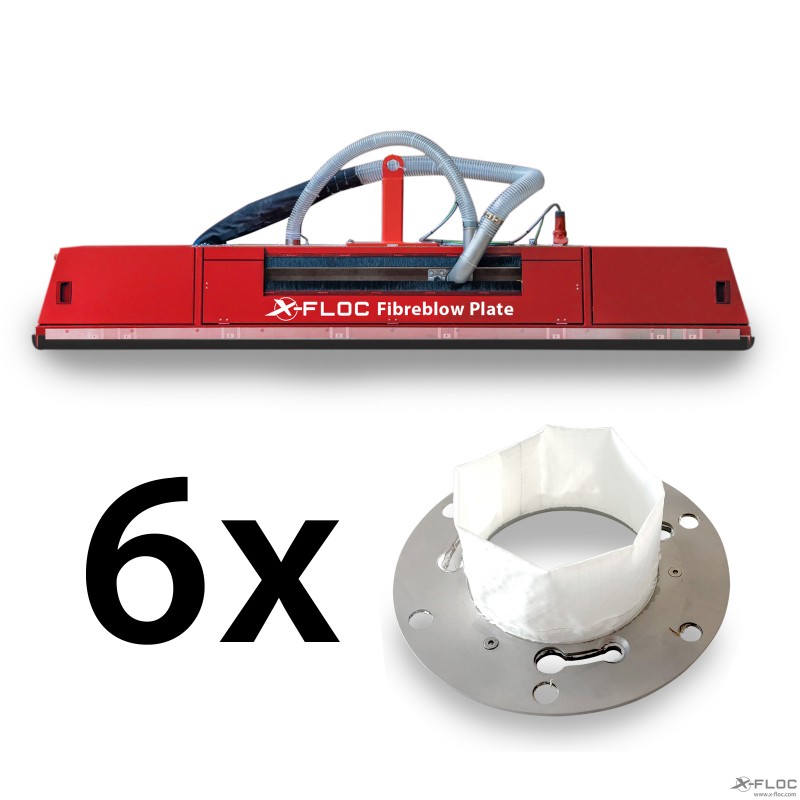

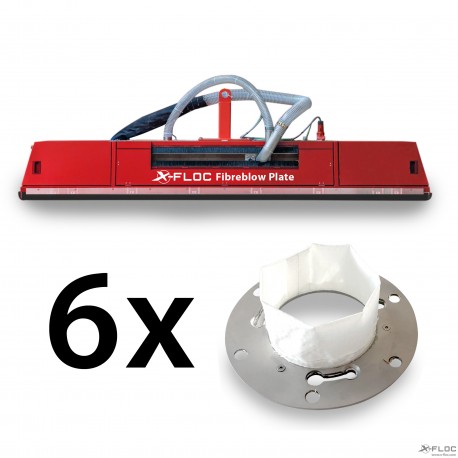

Fibreblow Premium Plate P6

The X-Floc Fibreblow® Premium Plate is the powerful heart of a modern, economical insulation process using loose insulation materials such as wood fibre, cellulose or glass fibre. With a length of just over 3 metres and 6 outlets, the P6 is easy to handle.
Specially developed for carpenters, binders and prefabricated house builders, it enables fully automated, low-dust and extremely fast filling of open cavities ideal for the industrial prefabrication of wall, roof or ceiling elements.
The patented technology ensures process reliability, consistently high execution quality and real time savings in production a clear competitive advantage for your company.

-------------------------------------------------
Product features:
- Patented Röckli material outlet to minimise pile formation (less than 1 cm with the right Röckli selection for each compartment thickness)
Röckli Medi (30 mm length) recommended for compartments from 140 mm to 200 mm are included
- Extremely low-dust blowing process thanks to built-in dust collection and collection system
- Time-saving handling thanks to laser-assisted, fast positioning, e.g. via hall or gantry crane
- Automatic insulation material configuration thanks to software algorithm developed by X-Floc engineers (optional)
- Manual software configuration for two insulation materials included, additional options available
- Remote maintenance module enables secure access to the Fibreblow Premium Line control system by our service team (optional)
- Automated filling process via manually selectable connections
- Logging of material consumption in combination with Feeder Drop or Feeder Lift, output via USB or network (data logging)
- Efficient insulation with up to 1,200 kg/h at 200 mm insulation thickness (wood fibre)
- Additional air blower (booster) for better compaction, e.g. when processing wood fibre (optional)
- Varia nozzles (external) for optimised edge and corner filling (optional)

-------------------------------------------------
Technical data:
- Number of outlet nozzles: 6
- Weight approx. 480 kg
- Dimensions: 3,300 × 900 × 460 mm
- Connected load: 400 V / 16 A / 50 Hz
- Stop: Hall or gantry crane (partially or fully automatic bridge possible)

-------------------------------------------------
Options:
- Fibreblow Premium Plate: Varia connection (item no. 13587)
- Fibreblow Premium Plate: Booster (item no. 13588)
- Fibreblow Premium Line: Automatic insulation configuration (item no. 13590)
- Fibreblow Premium Line: Manual insulation configuration (item no. 13730)
- Fibreblow Premium Line: Remote system maintenance (item no. 13626)
- Fibreblow Premium Line: Remote touch panel (item no. 13625)
- Fibreblow Premium Line: Connection package for processing bridge (item no. 13752)
- Fibreblow Premium Plate: Röckli Mini (15 mm length) recommended for compartments up to 140 mm (item no. 13845)
- Fibreblow Premium Plate: Röckli Maxi (50 mm length) recommended for compartments from 200 mm (item no. 13569)

-------------------------------------------------

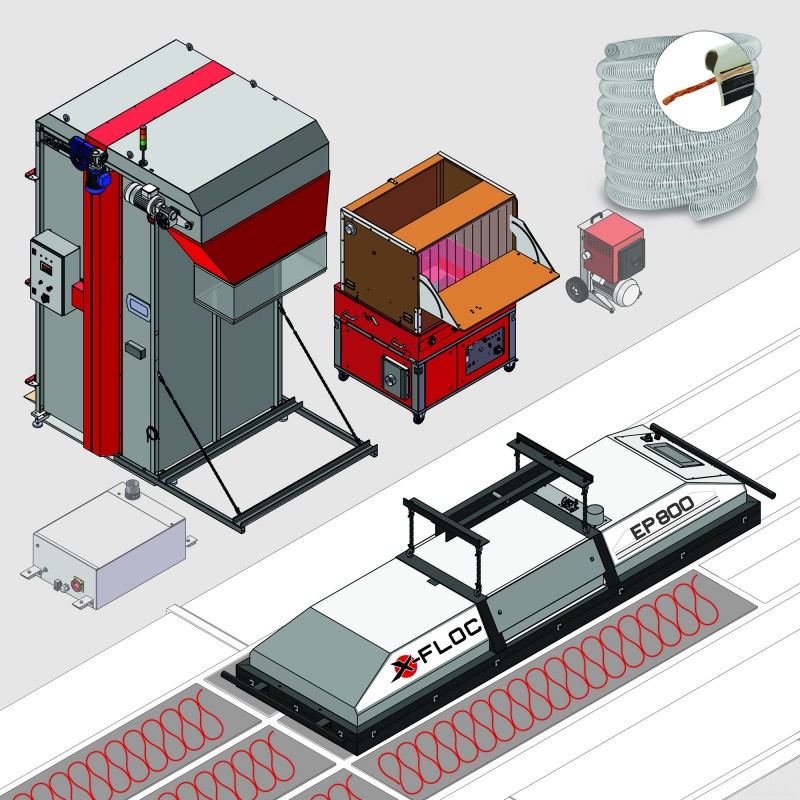

Recommended insulation material machines:
- Fibreblow Premium Drop (item no. 13567)
- Fibreblow Premium Lift (item no. 13568)
-------------------------------------------------
Note: If Röckli is too long, it may cause blockages during the insulation process.
