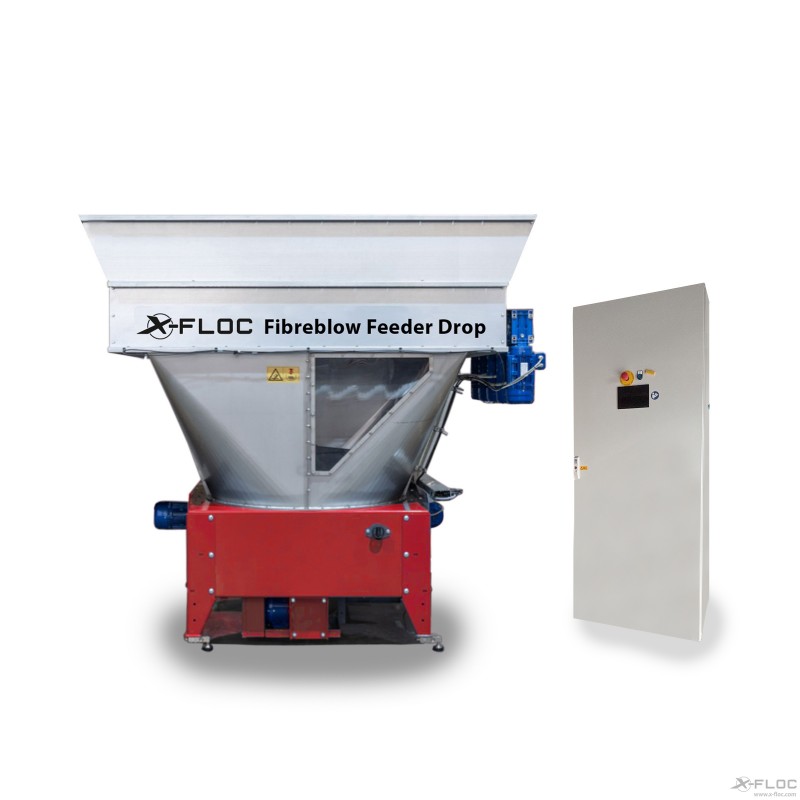

Fibreblow® Premium Feeder Drop

The X-Floc Fibreblow® Premium Feeder Drop is the perfect solution for feeding insulation material to a Fibreblow® Premium Plate without interruption. Four horizontal, individually driven toothed rollers gently shred both large and small bales, break them up and feed the material to the rotary feeder via the first-in-first-out feeder.
The integrated blowing module ensures the right amount of insulation material is conveyed.
The height of the Fibreblow® Premium Feeder Drop and thus the filling volume can be variably adapted to requirements, either via suitable metal frames or installation in individual material feed solutions.
-------------------------------------------------
Product features:
- Vertical, scalable material feed with adjustable infeed height (standard: approx. 2.75 m)
- The number of large bales that can be fed varies between three and six, depending on the configuration.
- Four powerful toothed rollers reliably shred the bales
- Agitator with 3 kW drive and transfer hopper for even material flow
- Thanks to fine shredding and the first-in-first-out principle, the insulation material is treated particularly gently as the shear stress on the fibers is reduced
- Turbine module (5.5 kW) and large rotary valve for conveying the material to the blowing plate
- Weighing system, consisting of four weighing cells and suitable measuring electronics for evaluation
- Low maintenance due to the use of particularly robust components
- Continuous operation and high availability thanks to optimized design
- Modern switchgear with intelligent control system and sophisticated safety concept
- Remote maintenance software for monitoring and diagnosis of the Fibreblow® Premium Feeder Drop by X-Floc
-------------------------------------------------
Technical data:
- Material volume: approx. 2 m³ (standard)
- Material capacity: depending on material, e.g. wood fiber up to 1,200 kg/h
- Connected load: 32 A / 400 V / 50 Hz
- Dimensions (L×W×H): 2,810 × 1,666 × 2,771 mm (including one raised attachment as standard)
- Weight: approx. 1,440 kg
- Control via external touchscreen control cabinet

-------------------------------------------------
Options:
- Fibreblow Premium Feeder Drop: Raised attachment (art. No. 13589)
