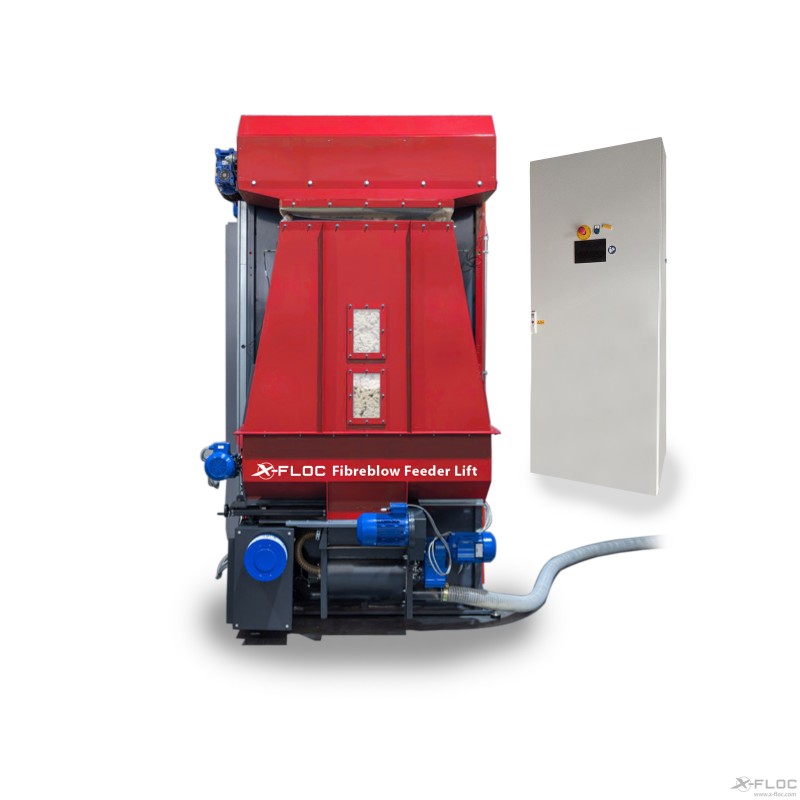

Fibreblow Premium Feeder Lift

The X-Floc Fibreblow® Premium Feeder Lift is the perfect solution for feeding insulation material to a Fibreblow® Premium Plate using large bales or small bales stacked on a pallet. An overhead milling unit breaks up the compressed material and it is fed to the fine loosening and rotary valve via a vertical hopper. The integrated blowing module ensures the right amount of insulation material is conveyed.
-------------------------------------------------
Product features:
- Material feed via standard pallet and lifting table
- Powerful milling unit reliably shreds the bales
- Transfer hopper for even material flow
- Fine shredding according to the first-in-first-out principle for particularly gentle treatment of the insulating material
- Turbine module (5.5 kW) and large rotary valve for conveying the material to the blowing plate
- Weighing system, consisting of four weighing cells and suitable measuring electronics for evaluation
- Low maintenance due to the use of particularly robust components
- Design optimized for continuous operation and high availability
- Modern switchgear with intelligent control system and sophisticated safety concept
- Remote maintenance software for monitoring and diagnosis of the Fibreblow® Premium Feeder Lift by X-Floc

-------------------------------------------------
Technical data:
- Material volume: approx. 2.5 m³ (depending on pallet load)
- Material capacity: depending on material, e.g. wood fiber up to 1,200 kg/h
- Connected load: 32 A / 400 V / 50 Hz
- Dimensions (L×W×H): 2,410 × 1,600 × 3,400 mm
- Weight: approx. 2,065 kg
- Control via touchscreen

-------------------------------------------------
