Fibreblow® Premium Material Launcher

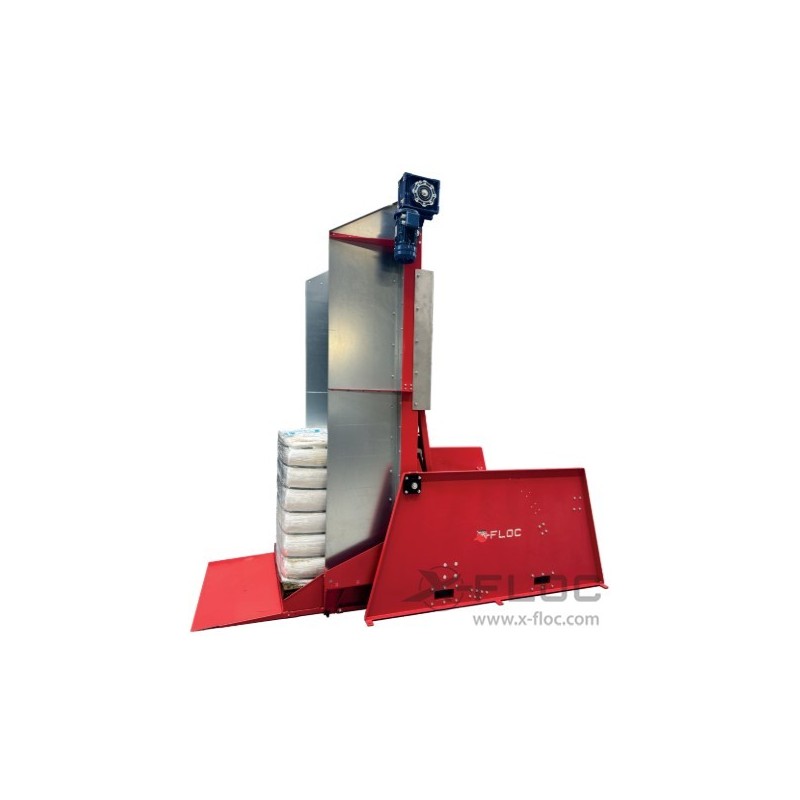

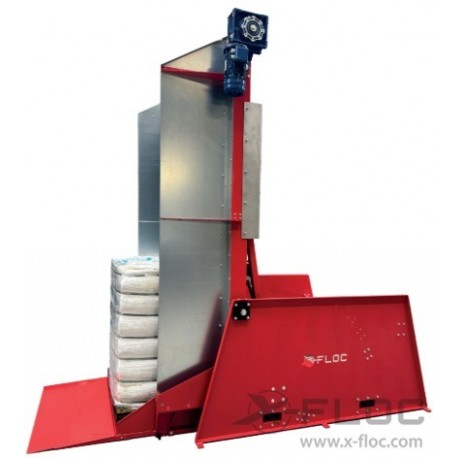

Fibreblow® Premium Material Launcher "The X-Floc Fibreblow® Premium Material Launcher is the first-class material conveyor belt that enables safe and, above all, continuous feeding of the Fibreblow® Premium Feeder Drop.

-------------------------------------------------
Product Features:
- Seamless material flow made possible through continuous feeding
- Powerful conveyor belt and practical material storage buffer in one single unit
- Operator protection through ergonomic loading that eliminates safety risks
- Full insulation flexibility, regardless of whether the material is expanding or dimensionally stable
- Integrates smoothly into any production layout, whether at ground level or on a second tier

-------------------------------------------------
Material Loading Sequence:
1) Vertical Positioning: The conveyor table is initially positioned vertically, allowing for particularly easy and ergonomic loading of pallets via forklift or crane.
2) Horizontal Tilting: After loading, the conveyor table can be tilted into the horizontal position. The integrated floor opening facilitates the quick and safe removal of pallets and packaging materials.
3) Automated Transport: The conveyor table then automatically transports the material onto a secondary conveyor belt. This is where intermediate storage and controlled feeding into the Feeder Drop take place, ensuring a continuous and smooth material flow.

-------------------------------------------------
Technical Data:
- Weight: approx. 1,300 kg
- Dimensions (L×W×H): 4,341×1,620×2,022 mm (horizontal) | 2,989×1,620×4,421 mm (vertical)
- Conveyor belt width: 1,400 mm
- Connected load: 400 V / 32 A / 50 Hz

-------------------------------------------------
Options:
- Fibreblow® Premium Material Conveyor Belt, L 1m (Art. No. 15177)
