Details

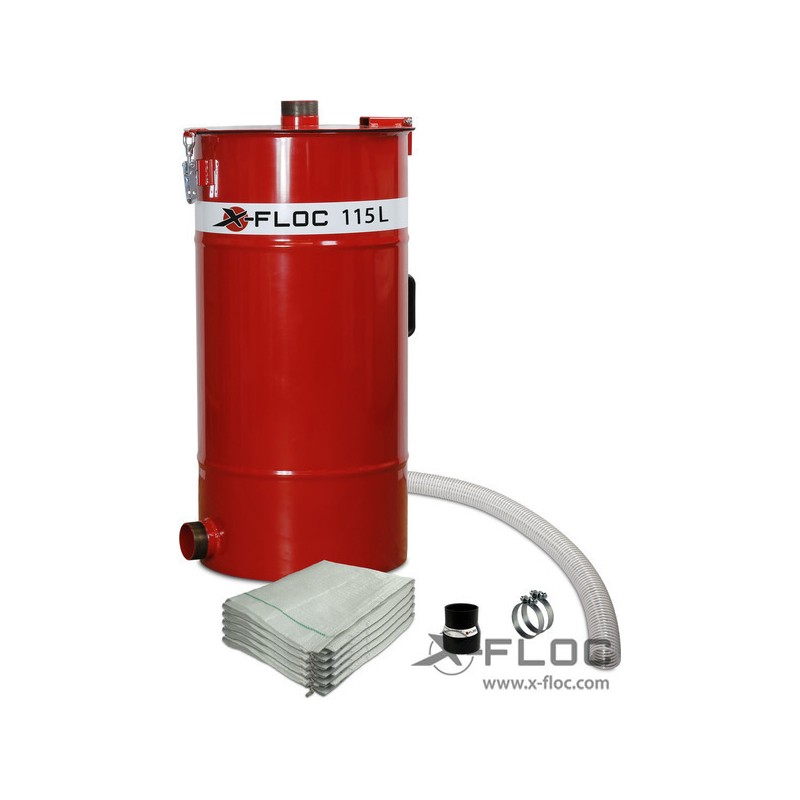

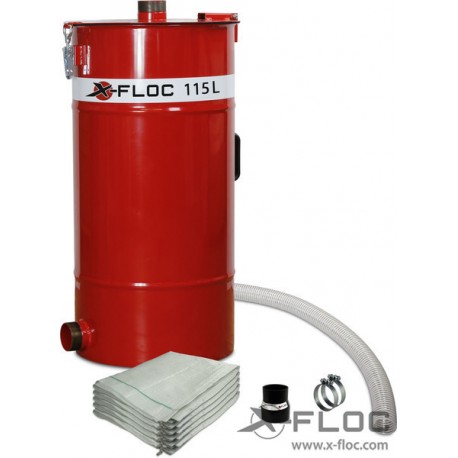

Suction drum for cleaning or deconstruction in connection with a suitable blow-in machine or an amplifier suction station consisting of:
- Swivelling lid with quick release fastener
- Dimensions: approx. 460x910mm (DxH)
- Weight: approx. 20kg
- Max. permissible negative pressure: -0.5bar
- Material suction connection: NW75 (3'')
- Connection air suction: NW75 (3'')
- Bag made of PP-tape fabric 70x110cm (5 pieces art.-no. 1085)
- 1,5m delivery hose NW75
- Hose clamp NW75 (3''), quick-release clamp with hook (2 pieces item no. 223)
- Reducing piece PE NW75-63 (item no. 3768)
Notes:
- In conjunction with the suction drum, all injection machines with sealed suction filter system (example M99, EM3XX, EM4XX, EM5XX) can be used for cleaning or deconstruction work.
- On request, reducer PE NW75-63 (art. No. 3768) can be replaced by reducer PE NW75-50 (art. No. 3769) (please specify when ordering).
Options:
- EM4XX: Reducer tube PE 90-76 with O-Ring (prod. No. 5145)
Typical key figures for the suction of cellulose:
Filling of approx. 12kg/bag is achieved after approx. 2.5 minutes, bag change requires approx. 20 seconds. This corresponds to a suction capacity of approx. 255 kg/h.
