FFB 500 - Radio remote control bidirectional

Bidirectional radio remote control for controlling X-Floc insulation blowing machines and fibre switch cascades
------------------------------------------------------------------------------
Suitable for
- Insulation blowing machines with control circuits
- Fibre switch cascades
------------------------------------------------------------------------------
Advantages
- Robust plastic housing
- Light and handy design
- High range
- Possibility to choose between two operating frequencies
------------------------------------------------------------------------------
Hand-held control:
- Dimensions (WxHxD): 62x111x18mm
- Weight: approx. 80g (without batteries)
- Radio performance: 10dBm
- Operating frequencies (adjustable): 868,15 MHz, 868,45 MHz
- Range: approx. 180m in free field
- Batteries: 3x AAA micro cells
- Battery life: approx. 800 working hours
- Number of buttons: 8
- Battery- and radio contact LED
- Operation: Air ON, Material ON, Air and Material ON
- Key lock (against unintended input)
- Possible setting of the air- and materials start-up and shut-down delay times (09 sec.)
- Short circuit-, under- and overvoltage protected

Receiver:
- Dimensions (HxBxT): 81x120x46mm (without magnet foot and antenna)
- Weight: approx. 250g (without cable)
- Radio performance: 10 dBm
- Range monitoring with safety shut-down when exceeding
- Short circuit-, under- and overvoltage protected
------------------------------------------------------------------------------

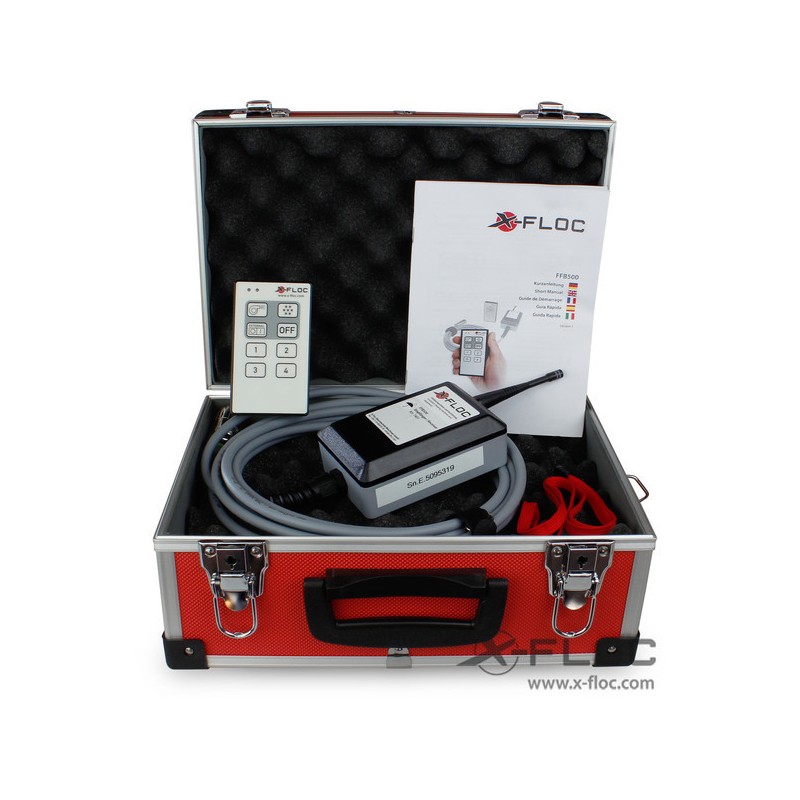

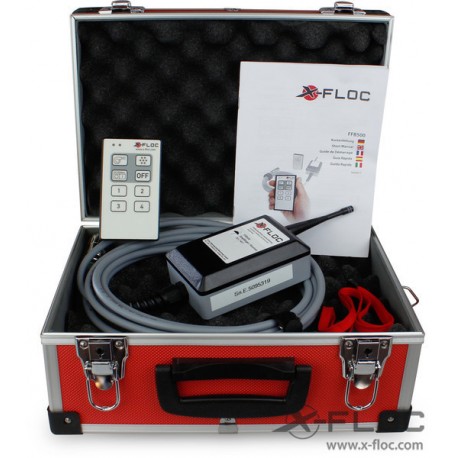

Scope of delivery
- Receiver with antenna
- Hand-held control
- Case
- Neck strap
- Operating Instructions
------------------------------------------------------------------------------
Options/alternatives:
- Hand-held control sport case (prod. No. 5016)
- Wrist strap L 21cm (prod. No. 7128)
- Control adapter 7+1 pin male to 8+1 pin female (item no. 7176, required for series M99B, M99C, M99D, M99E)
- Control cable 25m PUR, ring (10-core, contact plug/socket) (prod. No. 8087)
- Control cable 50m PUR, ring (10-core, contact plug/socket) (prod. No. 7208)
- FFB 500-922 - Radio remote control bidirectional (art. No. 8869, required for countries where the 922 MHZ band is released).
