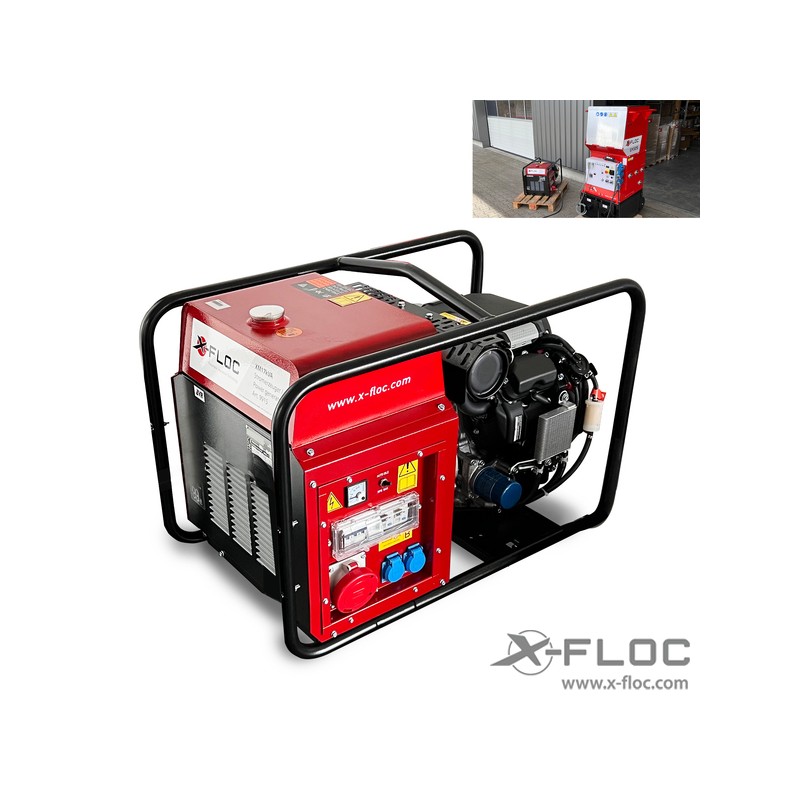

Power generator XM20kVA/16kW Diesel (IP23)

Power generator for operating an X-Floc insulation blowing machine and suitable machines.

------------------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Clearly arranged connection and control panel, can be secured with a lock
- Multiple (alarm) signalling, e.g. oil pressure, temperature, voltage etc.
- Central (crane) lifting eye
- Preparation for automatic emergency power supply EAS
- Very easy to maintain, the housing can be opened completely
- Conforms to EU directives for noise and safety

------------------------------------------------------------------------------
Technical data:
- Power 3-phase LTP: 20kVA (16kW), 400V, 28.9A
- Power 3-phase PRP: 18kVA (14.4kW), 400V, 26A
- Power 1-phase PRP: 7kVA , 230V, 30,4A
- Connections:
1x 400V/32A CEE
1x 400V/16A CEE
1x 230V/16A CEE
1x 230V/16A Schuko
- Engine speed: 1500 rpm
- Engine cooling: water
- Fuel: Diesel
- Tank capacity: 60l
- Running time at 75% PRP: approx. 17.5h
- Sound level (guaranteed / measured): 94 db(A) / 93 db(A)
- Protection class: IP23
- Dimensions: 1,720 x 1000 x 1,127 mm (L x W x H)
- Empty weight: approx. 610 kg

------------------------------------------------------------------------------
Optional accessories on request (selection):
- Remote control
- Lockable fuel filler cap
- earthing kit

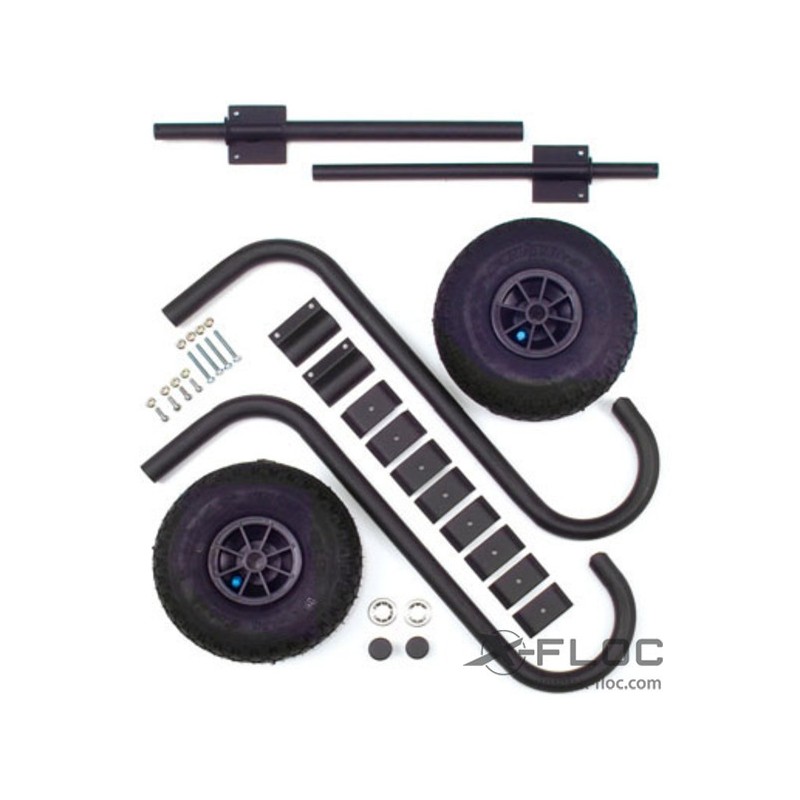

- construction site chassis
- road chassis
