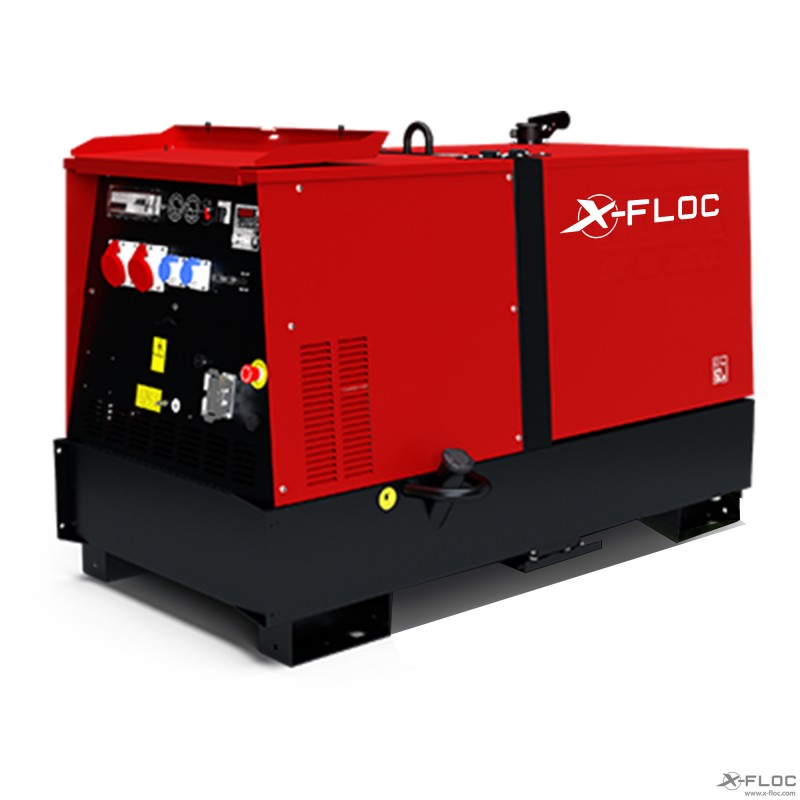

Generator XM11kVA/9,9kW Petrol (IP23)

Power generator for operating an X-Floc insulation blow-in machine and suitable machines and consumers.

----------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Clear and protected connection and control panel
- Operating hours counter
- Manually controllable throttle valve
- Air control
- Digital display: voltmeter, frequency meter, total hour meter, partial hour meter (resettable)
- (Alarm) signalling oil pressure (LED)
- Engine shuts down if insufficient oil is available
- Automatic fuse
- FI protection switch
- Central (crane) lifting eye
- Thermal protection switch for 230V / 16A socket protection
- Earth terminal
- Conforms to EU directives for noise and safety

----------------------------------------------------------------------
Technical data:
- Power 1-phase LTP: 11kVA (9.9kW), 230V, 47.8A
- Power 1-phase PRP: 10kVA (9kW), 230V, 43.5A
- Connections:
1x 230V/32A CEE
1x 230V/16A CEE
1x 230V/16A Schuko
- Motor speed: 3000 rpm
- Engine cooling: Air
- Fuel: petrol
- Tank capacity: 18 l
- Running time at 75% PRP: approx. 4.5h
- Sound level: 99 db(A)
- Protection class: IP23
- Dimensions: 935 x 525 x 645 mm (L x W x H)
- Empty weight: approx. 145 kg

----------------------------------------------------------------------
For example, suitable for the following machine types:
- EM100, EM100 + VS28, EM100 + VS33
- M99, M99 + VS28, M99 + VS33
- M99-DS, M99-DS + VS28, M99-DS + VS33
- M99-DS-Pro, M99-DS-Pro + VS28, M99-DS-Pro + VS33

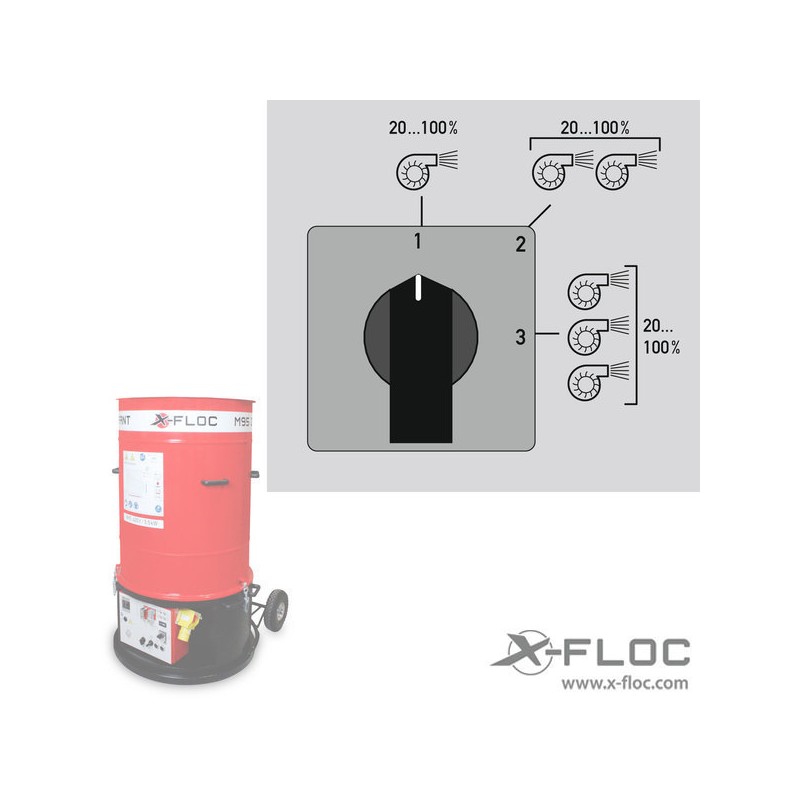

- M95, M95 + VS28,
- M95-3x230V/5.1kW, M95-400V/5.5kW, M95-2x230V/6.6kW
- EM360

----------------------------------------------------------------------
Optional accessories on request (selection):
- Power generator XM: Manual chassis (Art. no. 10395)
- Power generator XM: Lockable fuel tank cap (Art. no. 11424)
- Power generator XM: Earthing kit (Art. no. 11425)
- Power generator XM: Exhaust hose L approx. 1m, complete (Art.-No. 10292)
- Mains adapter 400V/32A-400V/16A, with connection cable 1.5m (Art. no. 9115)

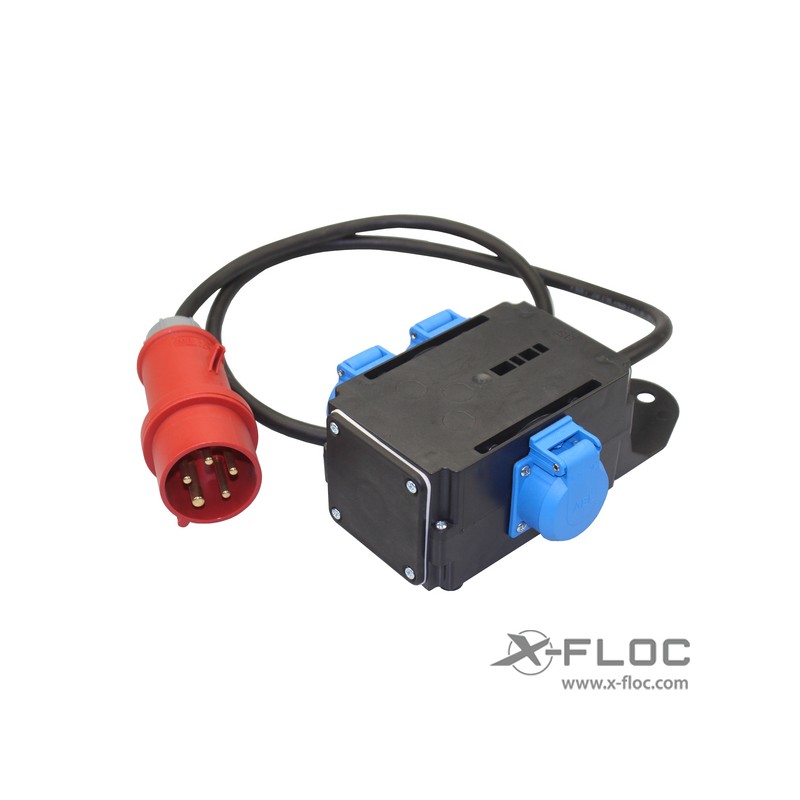

- Mains adapter, distributor 400V-CEE-1x 400V-CEE, 3x 230V-Schuko (with connection cable) (Art.-No.: 9482)
- Mains adapter, distributor 400V-CEE-3x 230V-Schuko (with connection cable) (Art.-No.: 9481)
- Mains adapter distributor socket strip 400V / 32A - 2x400V / 16A (Art. no.: 7273)
