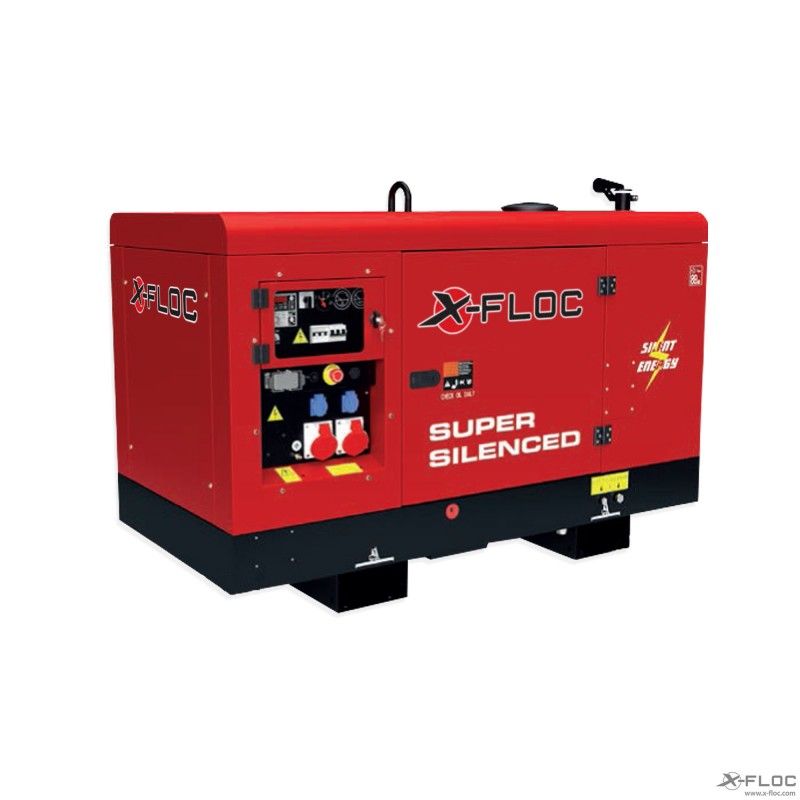

Power generator XM20kVA/16kW Diesel (Silent/IP44)

Power generator for operating an X-Floc insulation blow-in machine and suitable machines and consumers. The housing is soundproofed, so this power generator is particularly quiet in operation.

------------------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Clearly laid out connection and control panel, can be secured with a lock
- Particularly long running time (29.5h at 75% of PRP)
- Multiple (alarm) signalling, e.g. oil pressure, temperature, voltage etc.
- Central (crane) lifting eye
- Preparation for automatic emergency power supply EAS
- Enclosure shape and tight base provide increased protection against water ingress and liquid run-off (better environmental protection) and a high protection class (IP44)
- Very easy to maintain, the housing can be opened generously
- Conforms to EU directives for noise and safety

------------------------------------------------------------------------------
Technical data:
- Power 3-phase LTP: 20kVA (16kW), 400V, 28.9A
- Power 3-phase PRP: 18kVA (14.4kW), 400V, 26A
- Power 1-phase PRP: 7kVA , 230V, 30,4A
- Connections:
1x 400V/32A CEE
1x 400V/16A CEE
2x 230V/16A Schuko
- Engine speed: 1500 rpm
- Engine cooling: water
- Fuel: Diesel
- Tank capacity: 100l
- Running time at 75% PRP: approx. 29.5h
- Sound level (guaranteed / measured): 89 db(A) / 88 db(A)
- Protection class: IP44
- Dimensions: 1,835 x 900 x 1,264 mm (L x W x H)
- Empty weight: approx. 750 kg

------------------------------------------------------------------------------
Optional accessories on request (selection):
- Transport sledge
- Remote control
- earthing kit
- construction site chassis
- road chassis
