Zellofant M95-2x230V/6,6kW-SE insulation blowing machine

Insulation blowing machine for processing certified insulation materials, e.g. cellulose, wood fibre, mineral fibre as well as granules and other materials. Due to its compact design, the machine is ideally suited for mobile use on-site.

Important features:
The 3-stage material conditioning unit with one rotating shredding arm, one replacement grid and one rotating rake unit can easily break up and finely shred highly compacted processing materials (max. 165 kg/m³ packing density, humidity according to the limits given in the certification, but less than 15%.). The material flow volume can be set by the airlock rotors rotational speed (Optionally, an airlock feed gate is available.). Three high-powered radial fans generate the required air power effortlessly. All important machine settings can be set directly from the injection point by cable or radio remote control. The machine is equipped with two 230V/16A electrical connections.
For more information, see product data sheet.

Technical details:
- Power/material throughput: up to 980 kg/h, depending on application, material and delivery
- Hopper volume: 0,44 m³
- Dimensions: 800 x 1425 (D x H)
- Empty weight: 170 kg
- Filling height: 1425 mm
- Conditioning: 1x shredding arm, 1x replacement grid, 1x rake unit
- Material setting: controllable via control by setting the airlock rotors rotational speed or manually by setting the airlock feed gate (optional)
- Machine control: cable control KFB2000 (standard) or FFB2000/FFB2000-Pro (optional)
- Electrical connection: 2x 230V/50Hz (+/- 5%), each 16A (type B or C circuit breaker or slow blow screw in plug fuse)
- Inside the insulation blowing machine, frequency guided drives are installed. The electrical connection must be made according to the applicable national electrical regulations.
- Power rating: 6.6kW
- Blower: 3x high-powered radial fans with 5.1kW total power
- Conveying pressure: max. 420 mbar
- Air flow (nominal/gauged): 590/540 m³/h
- Outlet: NW75 (3'') (direct reduction/extension to NW63 (2,5), NW50 (2) or NW90 (3,5) possible)
- Airlock chamber ventilation for optimal processing throughputs
- Incoming air filter with quick fastener, NW90 intake air duct
(All values are approximate)

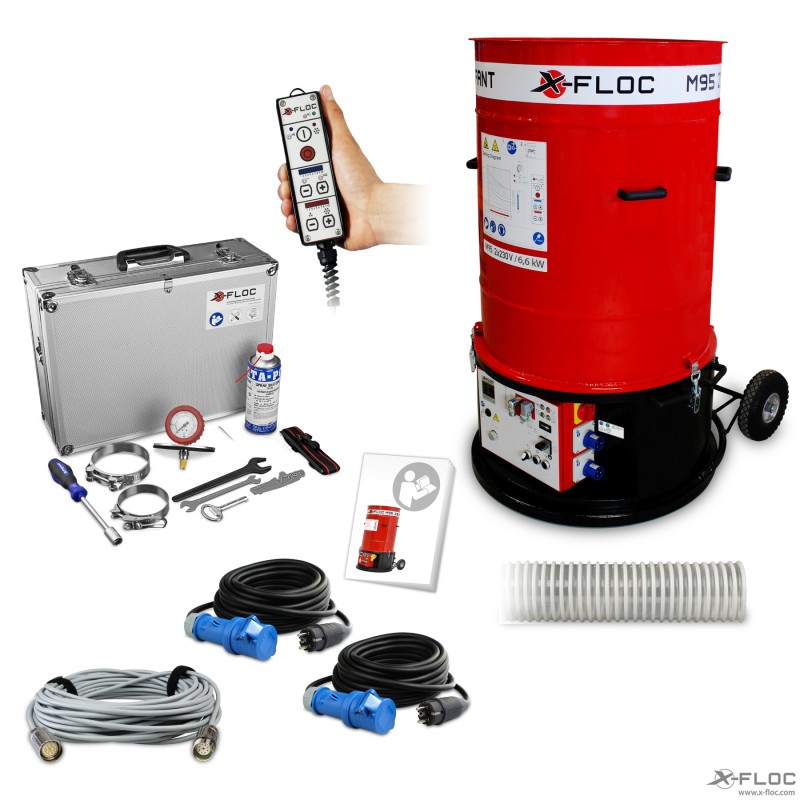

Scope of delivery:
- Fully functional insulation blowing machine, consisting of machine base with wheels and hopper
- Basic machine set, consisting of:

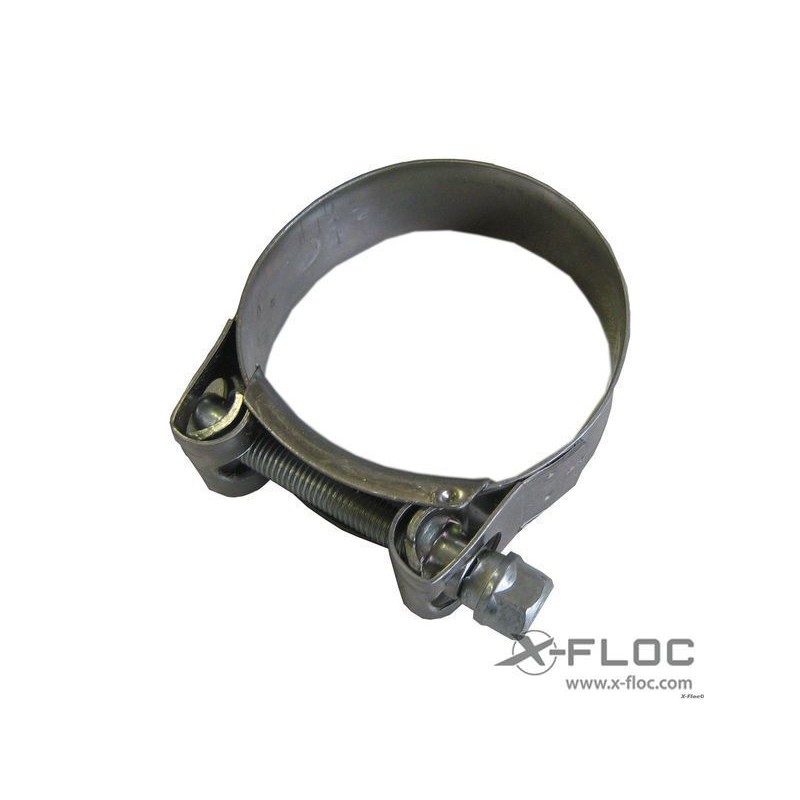

1x small-parts case with 1x cable remote control KFB2000 and carrying belt, 1x pressure gauge, 1x control cabinet key, 1x open-ended spanner SW24, 1x socket spanner SW13, 1x silicone spray, 1x double open-ended spanner SW 10x13, 1× 230V/10m power cable (earthed-CEE), 1x 50m control cable ring , approx. 2m NW90 air suction hose, 1x hose clamp NW90, 1x quick-connect hose clamp NW75, 1x spare air filter, machine folder incl. Operating instructions, inspection records and EC declaration of conformity

Optional equipment:
- NW90 discharge nozzle (instead of NW75): This increases the output or material throughput by approx. 35% to 1,320 kg/h (art. no. 7109)
- Radio remote control FFB2000 -Pro instead of cable remote control (prod. No. 5243 or 5154)
- Direct extension NW75-90 (3-3,5) (prod. No. 6746, conveyor line NW90 (3,5) necessary)

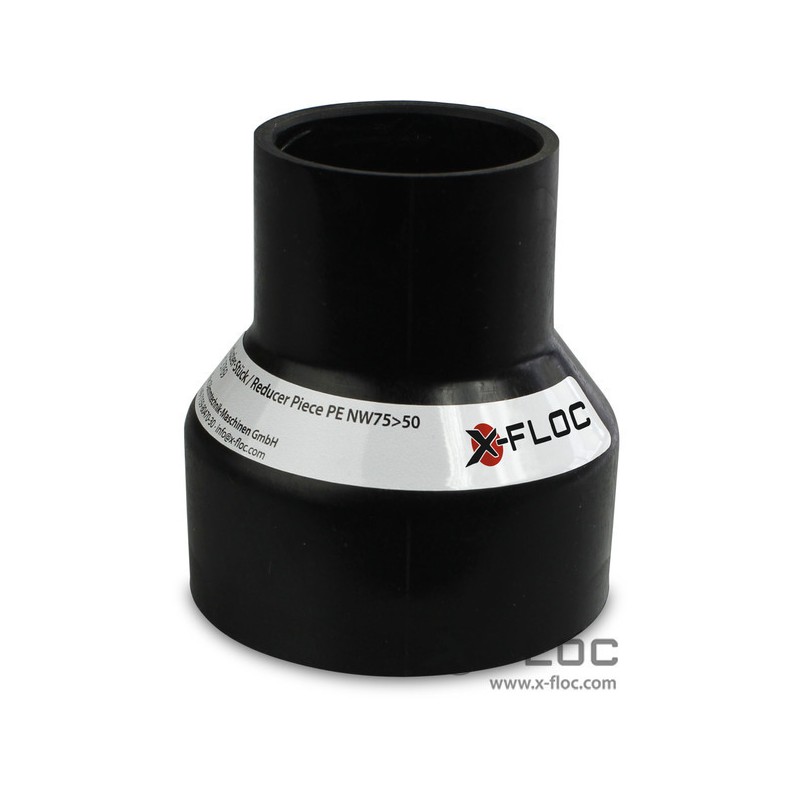

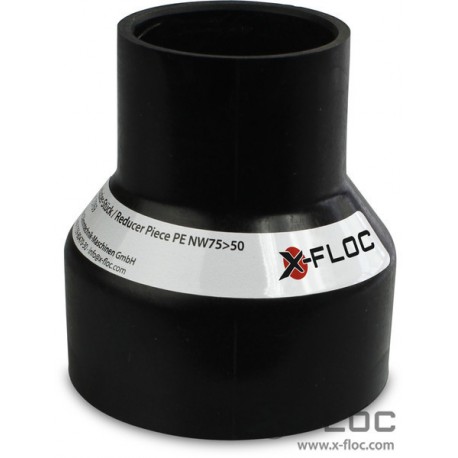

- Direct reducer NW75-63 (3-2,5) (prod. No. 526) or NW75-50 (3-2) (prod. No. 1972)
- Mains voltage display for 230V connection (prod. No. 4604)
- Airlock feed gate (prod. No. 3194)
- Quick coupling for outlet (prod. No. 172)
- Reinforced rotary airlock (prod. No. 6719)
- Airlock with outlet socket NW90 (3,5") (prod. No. 7109)

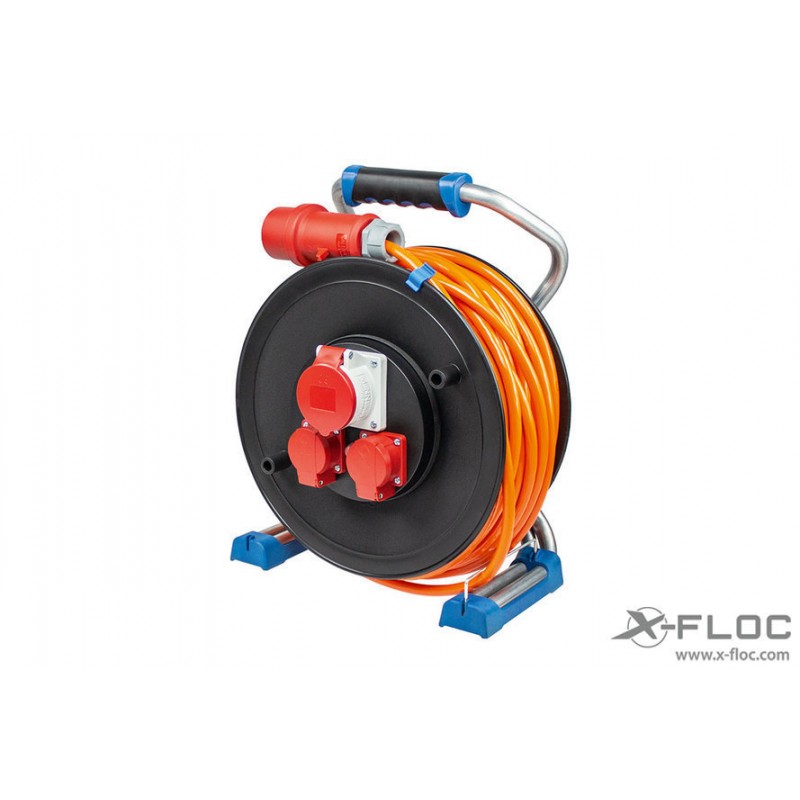

- 400V CEE / 3x 230V earthed power distribution cube (with connection cable) (prod. No. 9481)
- Amplifier-/vacuum stations
- Insulation blowing tools (various prod. No.)
- For more accessories, see price list / available on request
