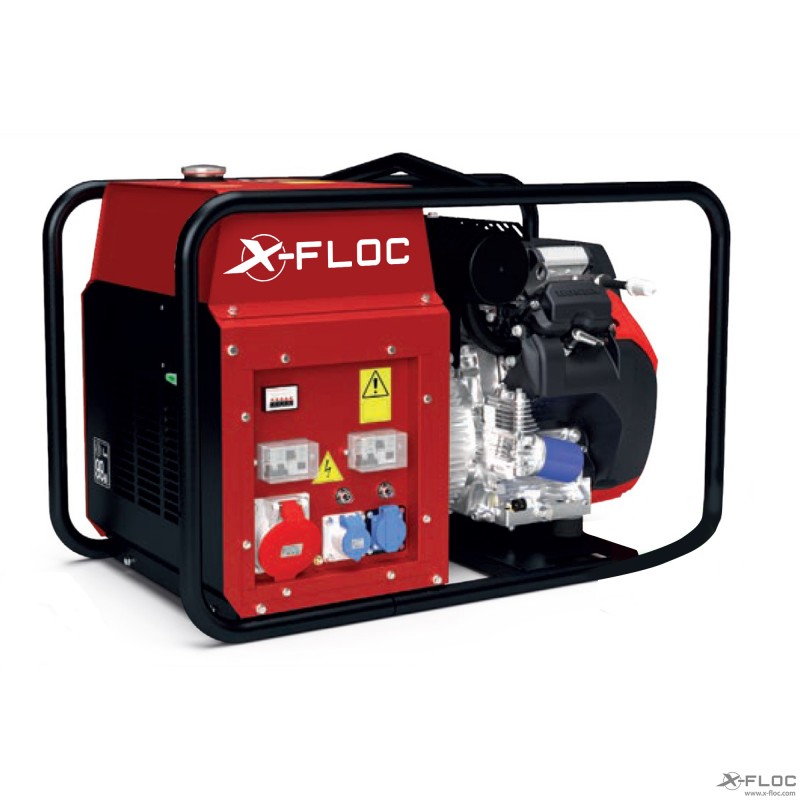

Power generator XM16.5kVA/13.2kW petrol (IP23)

Power generator for operating an X-Floc insulation blow-in machine and suitable machines and consumers with power-saving idling function.

----------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Sturdy frame with central lifting handle
- Clear and protected connection and control panel
- Fuel tap
- Hour meter
- Digital multifunctional element
- Voltmeter
- Frequency meter
- Total hour meter / partial hour meter (resettable)
- Oil warning light (LED)
- Idling function
- Earth terminal
- Conforms to EU directives for noise and safety

----------------------------------------------------------------------
Technical data:
- Power 3-phase LTP: 16.5kVA (13.2kW), 400V, 23.8A
- Power 3-phase PRP: 14.5kVA (11.6kW), 400V, 20.5A
- Power 1-phase PRP : 7.5kVA, 230V, 32.6A
- Connections:
1x 400V/32A CEE
2x 230V/16A CEE
- Motor speed: 3000 rpm
- Engine cooling: Air
- Fuel: petrol
- Tank capacity: 18 l
- Running time at 75% PRP: approx. 3.8 h
- Measured sound level: 99 db(A)
- Protection class: IP23
- Dimensions: 935 x 525 x 645 mm (L x W x H)
- Empty weight: approx. 155 kg

----------------------------------------------------------------------
For example, suitable for the following machine types:
- EM100, EM100 + VS28, EM100 + VS33, EM100 + VS55M, EM100 + VS75M
- M99, M99 + VS28, M99 + VS33, M99 + VS55M
- M99-DS, M99-DS + VS28, M99-DS + VS33, M99-DS + VS55M
- M99-DS-Pro, M99-DS-Pro + VS28, M95-DS-Pro + VS33, M99-DS-Pro + VS55M
- M95-230V/3.7kW, M95-230V/3.7kW + VS28, M95-230V/3.7kW + VS33,
M95-230V/3,7kW + VS55M
- M95-2x230V/5,1kW, M95-2x230V/5,1kW + VS25, M95-2x230V/5,1kW + VS33
- M95-400V/5,5kW, M95-400V/5,5kW + VS28, M95-400V/5,5kW + VS33
- M95-2x230V/6.6kW, M95-2x230V/6.6kW + VS28
- M95-400V/7.3kW
- EM320-2x230V, EM340-400V
- EM360-400V, EM360-400V + VS28, EM360-400V + VS33
- EM365-400V
- EM400-400V, EM430-400V, EM500

----------------------------------------------------------------------
Optional accessories on request (selection):
- Hand chassis
- Lockable fuel tank cap
- Earthing kit
