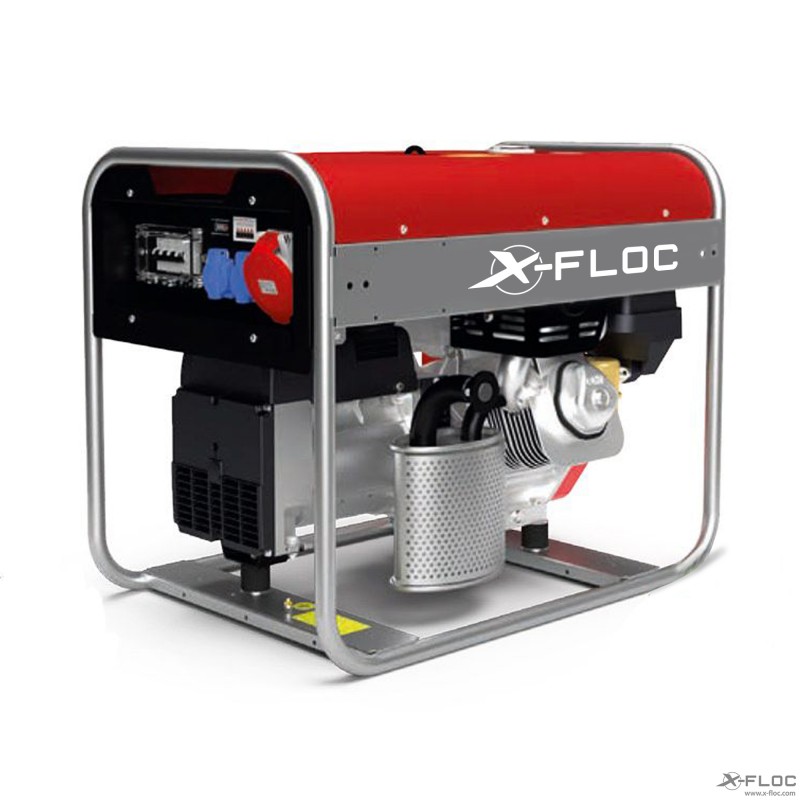

Power generator XM13kVA/10,4kW Petrol (IP23)

Power generator for operating an X-Floc insulation blow-in machine and suitable machines and consumers.

----------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Sturdy frame with central lifting bracket
- Clear and protected connection and control panel
- Operating hours counter
- Manually controllable throttle valve
- Air control
- Digital multifunctional element
- Voltmeter
-Frequency
- Oil warning light (LED)
- Engine shutdown in case of insufficient oil quantity
- Automatic fuse
- Ground fault circuit interrupter
- Earth terminal
- Conforms to EU directives for noise and safety

----------------------------------------------------------------------
Technical data:
- Power 3-phase LTP: 13kVA (10.4kW), 400V, 18.7A
- Power 3-phase PRP: 11.5kVA (9.2kW), 400V, 16.6A
- Power 1-phase PRP : 6kVA, 230V, 26A
- Connections:
1x 400V/32A CEE
2x 230V/16A CEE
- Motor speed: 3000 rpm
- Engine cooling: Air
- Fuel: petrol
- Tank capacity: 25 l
- Running time at 75% PRP: approx. 10.4h
- Measured sound level: 99 db(A)
- Guaranteed sound level: 96 db(A)
- Protection class: IP23
- Dimensions: 935 x 525 x 645 mm (L x W x H)
- Empty weight: approx. 142 kg

----------------------------------------------------------------------
Beispielsweise geeignet für folgende Maschinentypen:
- EM100, EM100 + VS28, EM100 + VS33, EM100 + VS55M
- M99, M99 + VS28, M99 + VS33,
- M99-DS, M99-DS + VS28, M99-DS + VS33,
- M99-DS-Pro, M99-DS-Pro + VS28, M95-DS-Pro + VS33
- M95-230V, M95-230V + VS28, M95-230V + VS33,
- M95-2x230V, M95-400V, M95-400V, M95-400V
- EM 320-2x230V, EM 325-3x230V
- EM 340-400V, EM 345-400V+230V (u.v.)
- EM 360-400V, EM 365-400V+230V
- EM400-400V
- EM430-400V
- EM440-3x230V (u.v.)

----------------------------------------------------------------------
Optional accessories on request (selection):
- Power generator XM: Manual chassis (Art. No. 10395)
- Power generator XM: Lockable fuel tank cap (Art. No. 11424)
- Power generator XM: Earthing kit (Art. No. 11425)
- Power generator XM: Exhaust hose L approx. 1m, complete (Art.-No. 10292)
- Mains adapter 400V/32A-400V/16A, with connection cable 1.5m (Art. No. 9115)

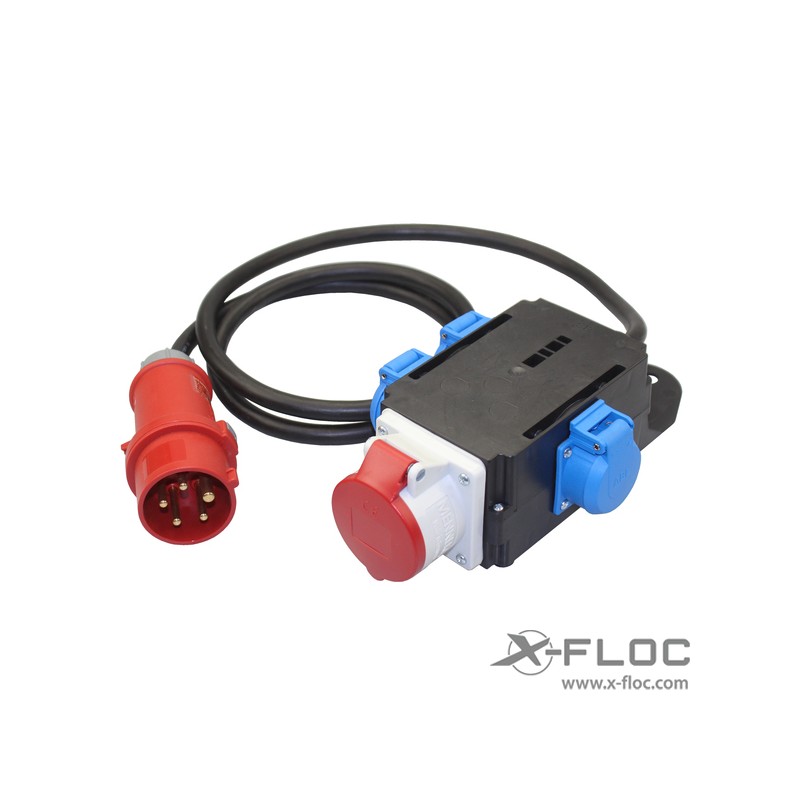

- Mains adapter, distributor 400V-CEE-1x 400V-CEE, 3x 230V-Schuko (with connection cable) (Art.-No.: 9482)
- Mains adapter, distributor 400V-CEE-3x 230V-Schuko (with connection cable) (Art.-No.: 9481)
- Mains adapter distributor socket strip 400V / 32A - 2x400V / 16A (Art. No.: 7273)
