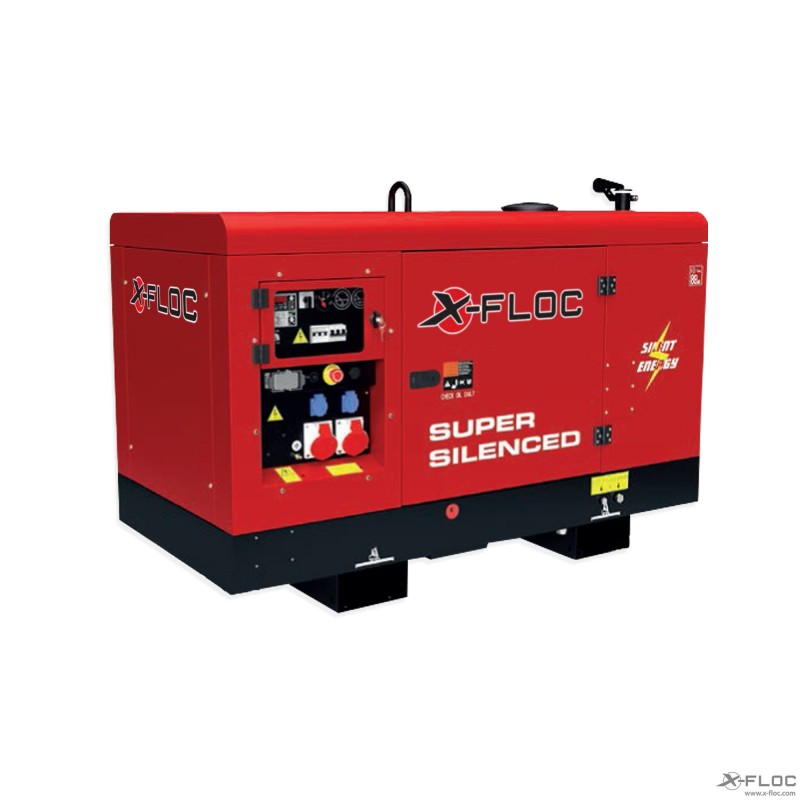

Power generator XM8.0kVA/6.4kW

Compact power generator for operating an X-Floc insulation blowing machine and suitable machines and consumers.
With self-regulating, three-phase synchronous generator, large-capacity tank and oil quantity monitoring.

------------------------------------------------------------------------------
Features:
- Voltage regulation (electronic)
- Clearly laid out connection and control panel
- Display for fuel, operating hours and voltage
- Central (crane) lifting eye
- Very easy to maintain, the housing can be opened completely
- Complies with EU directives for noise and safety

---------------------------------------------------------------------
Technical data:
- 3-phase LTP power: 8kVA (6.4kW), 400V, 11.5A
- 3-phase PRP power: 7kVA (5.6kW), 400V, 10.1A
- Power 1-phase PRP: 3.5kVA, 230V, 15.2A
- Connections:
1x 400V/16A CEE
1x 230V/16A CEE
1x 230V/16A Schuko
- Motor speed: 3000 rpm
- Engine cooling: air
- Fuel: petrol
- Tank capacity: 20 litres
- Running time at 75% PRP: approx. 8.5h
- Sound level value (guaranteed / measured at a distance of m): 97 db(A) / 72 db(A)
- Protection class: IP23
- Dimensions: 770 x 520 x 630 mm (L x W x H)
- Unladen weight: approx. 83 kg

----------------------------------------------------------------------
Suitable for the following machine types, for example:
- EM100
- M99, M99-DS and M99-DS-Pro
- VS28, VS33 and VS55
- M95-230V-3.6kW, M95-230V-3.7kW, M95-2x230V-5.1kW
- M95-400V/5.5kW+6.6kW (still to be verified)

---------------------------------------------------------------------
Optional accessories:
- XM power generator: CTM8000L manual trolley (item no. 12052)
- Version with 2x Schuko socket (on request)
- RCD circuit breaker (on request)
