EM 480 16A/32A (400V/14kW) High-performance insulation blowing machine

High-performance blowing machine for professional processing of building authority approved thermal insulation materials such as cellulose, wood fibre, rock wool and many more. The machine is optimised for stationary factory use and mobile construction site use.

Important features:
The two-stage loosening unit, consisting of four rotating shredding shafts and a chopping unit, is capable of easily breaking up and finely pulping highly compressed processing materials (max. 200kg/m³ packing density). The material feed rate can be conveniently selected in approx. 20 stages by positioning the electric sluice gate via the cable or radio remote control (optional). A 5-stage, specially developed high-performance turbine (7.8 kW) effortlessly generates the required air output. All important machine settings for the blowing process can be selected directly from the blowing location via cable or radio remote control.
The machine is equipped with 2 power connections and can be operated with either a 16A or 32A power supply.
Effective turbine output when using the 16A connection: appr. 6.5kW
Effective turbine power when using the 32A connection: appr. 7.8kW

Technical data:
- Capacity/material throughput: up to 2,400 kg/h (based on cellulose) depending on application, material and feed
- Filling container volume: 1.0 m³
- Dimensions: 1300 x 1020 x 1800 (L x W x H)
- Empty weight: 423kg
- Filling height: 1260 mm
- Loosening: 4x shredding shafts, 1x shredding unit
- Material setting: remote-controlled via electric gate valve
- Machine control: KFB2000 cable control (standard) or FFB2000/FFB2000-Pro (optional)
- Electrical connection: 1x 400 V/50 Hz/3x16A/N/PE or 1x 400 V/50 Hz/3x32A/N/PE (+/- 5%) (fuse protection C-automatic or fusible link)
- Frequency-controlled drives are integrated in the blowing machine. The electrical connection must be made in accordance with the applicable national electrical regulations.
- Rated power: 13.2 kW
- Air generator: 1x 5-stage turbine 6.5 kW with 16 A and 7.8 kW with 32 A power connection
- Dynamic pressure: max. 620 mbar at 16A or max. 720 mbar at 32A
- Effective air volume: max. 330 m³/h at 16A or max. 380 m³/h at 32A
- Airlock volume: 20 litres
- Outlet connection: NW90 (3 1/2'') (direct reduction to NW75 (3'') optional)
- Airlock chamber ventilation for optimised throughput capacity

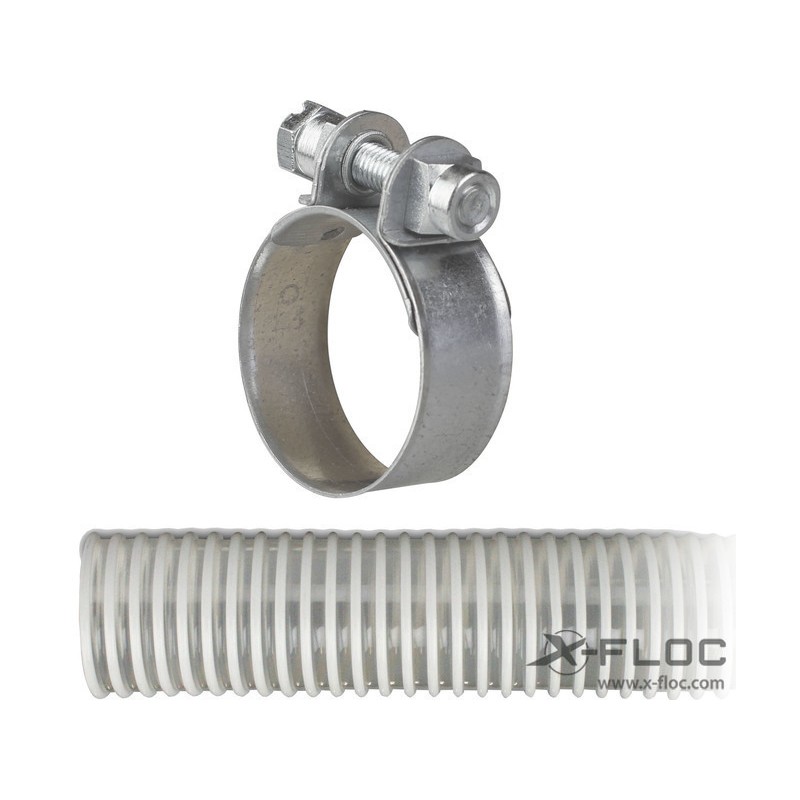

- Intake air filter with quick-release fastener, intake connection NW90
(All values are approximate)

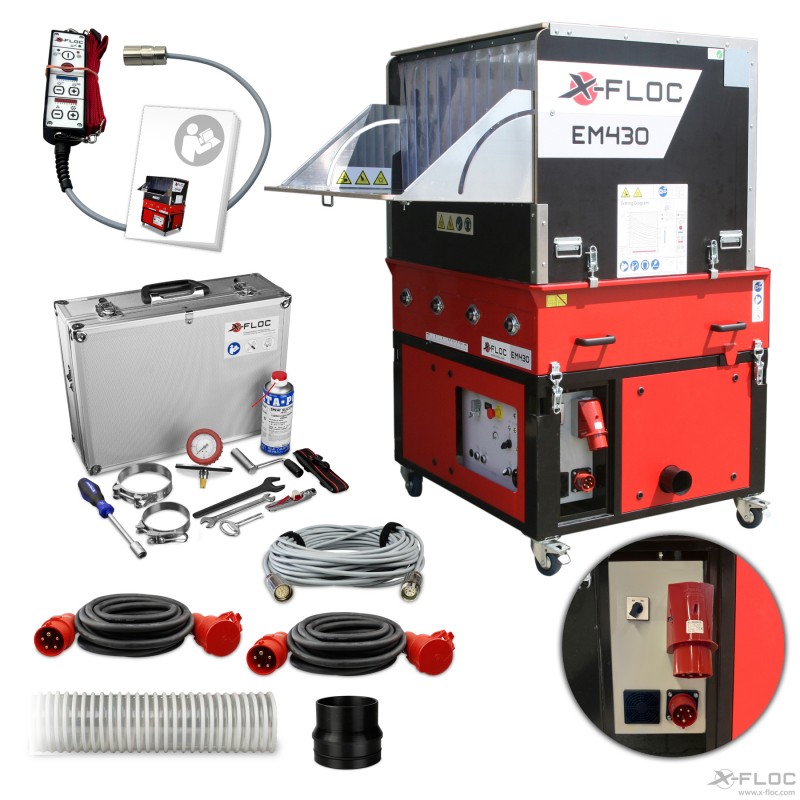

Scope of delivery:
- Fully functional blow-in machine, consisting of machine base, upper part with fold-out bag support and dust extraction attachment
- Basic machine accessories, consisting of
1x small parts case with 1x cable remote control KFB2000 and carrying strap, 1x device crank, 1x pressure gauge, 1x switch cabinet key, 1x open-end spanner NW13, 1x open-end spanner NW24, 1x socket spanner NW13, 1x silicone spray, 1x double open-end spanner SW 10x13, 1x hose clamp NW90, 1x quick-release clamp NW75, 1x reducer 90-76 with O-ring, 1x mains cable 400V / 10m (Schuko-CEE), 1x 50m control cable ring PUR, approx. 2m intake air hose NW90, machine folder incl. operating instructions, test reports and CE declaration of conformity

Options:
- Radio remote control FFB2000 -Pro instead of cable remote control (art. No. 5243 or 5154)
- EM4XX: Additional option DS - Adjustable valve speed 16/32A (art. No. 12245)
- Additional option AE - blow-off unit (art. No. 4038)
- Additional option box wall attachment V 0.914m³ (art. No. 8522)
- Mounting foot (art. No. 5301) or mounting elements for blow-in machine (art. No. 7294) or forklift shoes for trailer mounting (art. No. 10742)
- Suction nozzle NW90 / 90° (art. No. 5613)
- Direct reduction NW90-75 (EM4XX-NW90 from model year 06/2018) (item no. 8936)
- Accessory set NW75/63 for loose insulation materials (non-abrasive) (art. No. 5246)
- Reducing piece PE 90-76 with O-ring (item no. 5145)
- Airlock orifice plate for finer dosing (item no. 1121
