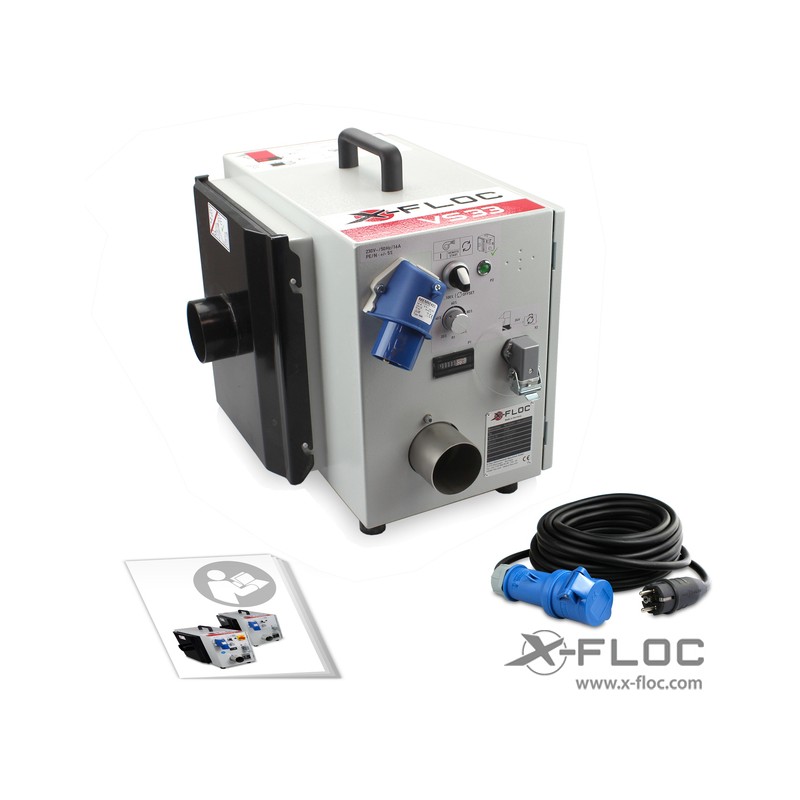

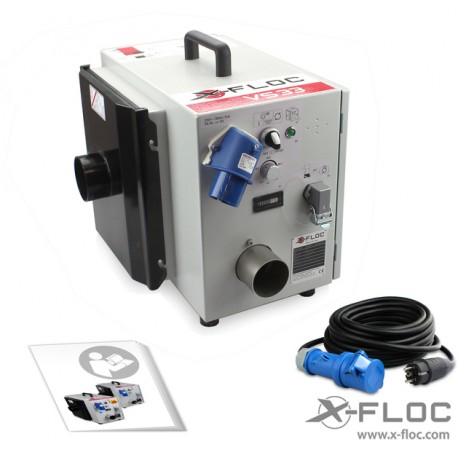

VS: Amplifier and vacuum station VS33

Amplifier and vacuum station completely assembled and ready for operation in the sheet steel casing, consists of:

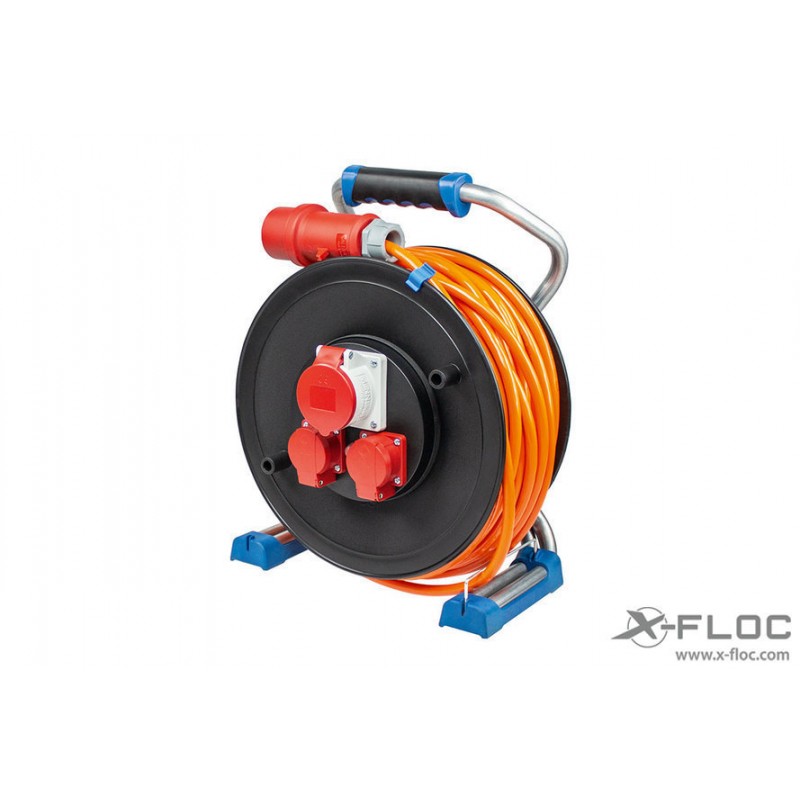

- Net cable 10m (Schuko-plug, CEE-socket)
- Operating mode selector switch hand- / synchronic- / automatic operation
- Continuous level adjustment of 20-100%
- Light to display the operational readiness

Ideal for the following applications:
- Suction and ventilation of rotary nozzles
- Site cleaning, vacuuming foreign materials
- Dismantling of elements
- Amplifying the insulation blowing machines

Technical details:
- Dimensions: approx. 482x358x418 (LxWxH)
- Electricity connection: 230V~, 16A (including mains cable 10m, CEE/Schuko, circuit breakers C Series, safety screws and fuse)
- Connected value: 3,3kW
- Conveying pressure: max. 350mbar (adjustable)
- Underpressure: max. 320mbar (adjustable)
- Air flow (nominal/gauged): appr. 420/400m³/h
- Outlet NW63 (2½")
- Intake air duct NW75 (3")
- Easy to clean suction filter
- Operating hours meter for better maintenance interval monitoring
- Weight approx. 19,8kg

Operation available in three modes: manual, automatic, automatic with power synchronisation for main machine

Options:
- Mains voltage display, display of the applied supply voltage (prod. No. 4604)
- VS: Connecting Set for Amplifier NW63/NW75-NW75 (Art.-Nr. 4934)
- Connection cable for automatic operation with the insulation blowing machine: L 2m, 25m, 50m

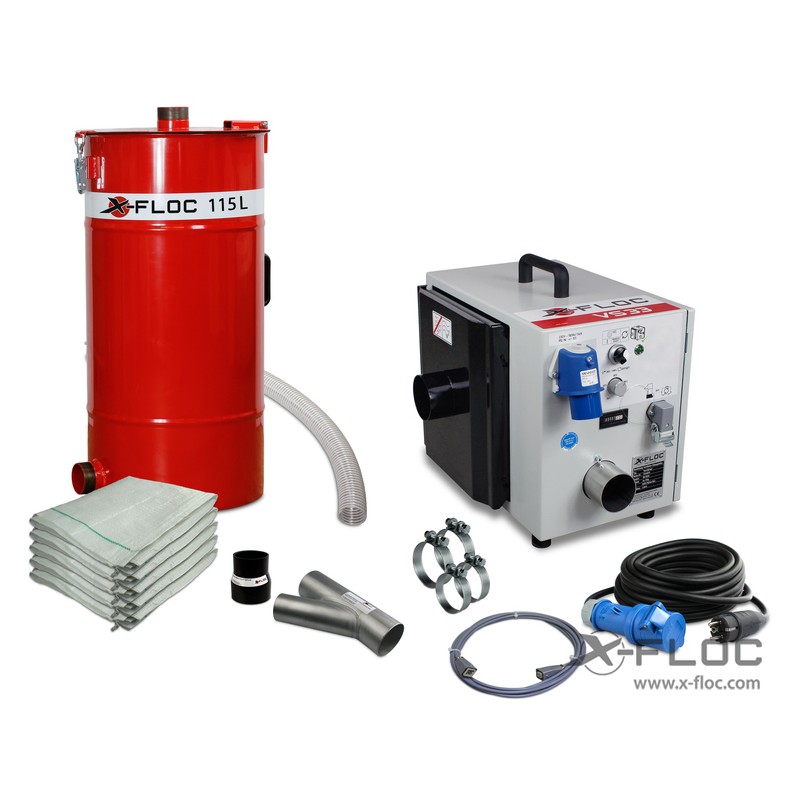

- Suction drum V approx. 115l (prod. No. 1160)
- Preparation for cable / radio operation (prod no. 3864)
- FFB 500 - Radio remote control bidirectional (prod no. 6708 only in connection with prod no. 3864)
