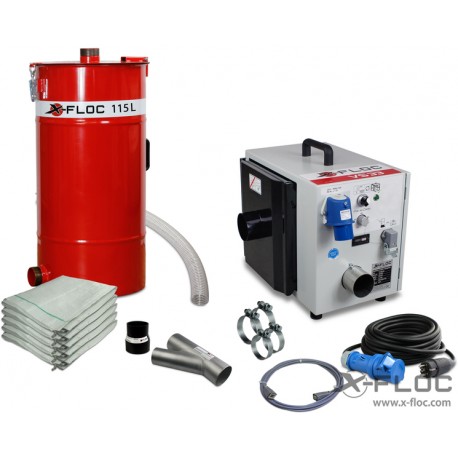

VS: Amplifier/ vacuum station VS33 complete set 115 l

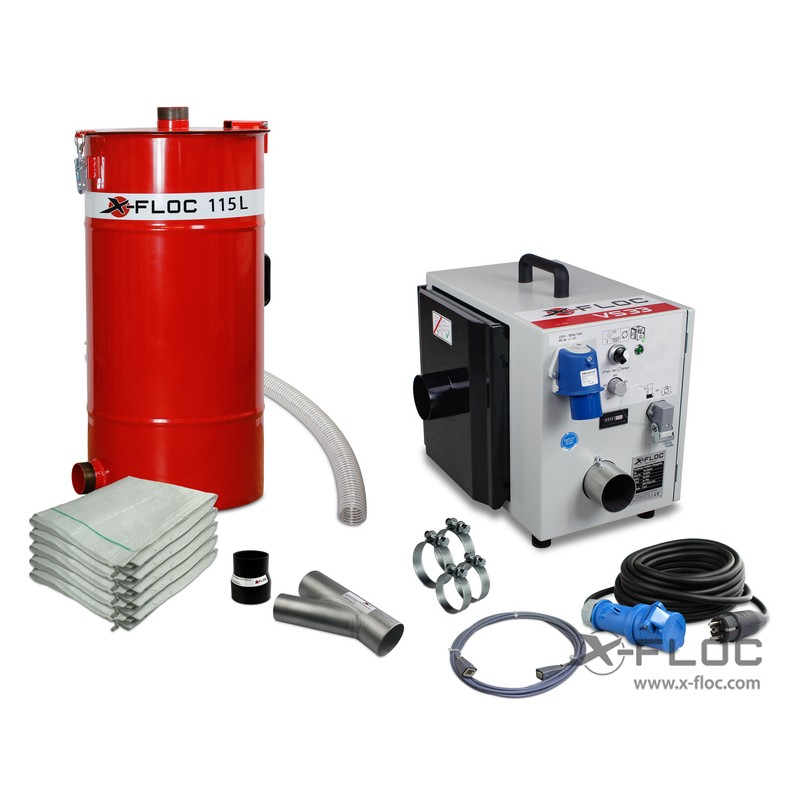

Complete set consists of:
- 3,3kW amplifier/ vacuum station, Suction drum (V 115l) with practical hinged lid incl. 5 woven polypropylenebags
- 10m power cable (earthed plug, CEE socket)
- 1.5 m NW75 hose
- 0,1m NW75 hose
- 1.5m NW 63 hose
- 2x NW75 quick-connect hose clamps
- 2x NW63 hose clamps
- Y-piece stainless steel for connection to amplifier station (NW75/63-75 (Zellofant) oder NW63/63-63 (Minifant))
- NW75-63 (or 75-50) reducer tube (plastic),
- connecting control cable (L 5m) for Master-Slave operation of any blowing machine (please specify when placing order).

Description:
Amplifier/ vacuum station in sheet metal casing, completely assembled and ready for use, with the following control elements: master switch, manual or automatic operation, stepless power regulation from 20-100%. Ideal for the following:
- Dust extraction from rotary nozzles
- Construction site cleaning, vacuuming of other materials.
- Element removal
- Amplification of blowing machine power

Technical Details:
- Dimensions (WxHxD) amplifier station: 420 x 300 x 330mm
- Dimensions suction drum: Ø450 x 860mm
- Electrical connection: 230V~, 16A including 10m mains connecting cable (CEE/earthed)
- Fusing: 3,3kW type C circuit breaker, screw- / melting fuse
- Conveying pressure: max. 350mbar (adjustable)
- Negative pressure: max. approx. 320mbar (adjustable)
- Air flow (nominal/gauged): 420/400m³/h
- Electrical power requirement: 3,3kW
- Weight: approx. 45kg

Special features:
- Operating hours meter included for better monitoring of when maintenance work is due
- Complete separation of working and cooling air
- Therefore, better collector cooling
- Motor and electrical areas less vulnerable to dirt
- Less deformation with high levels of negative pressure (i.e. with suction operation)
- Bigger filter box with a filter approx. 2.5 times the size of the old filter

Optional:
- Mains voltage display, display of the applied supply voltage (prod. No. 4604)
- Cable/radio remote control
- Control cable (L 2m or 50m
- Alternatively with 250 l suction drum
- Preparation for cable / radio operation (prod no. 3864)
- FFB 500 - Radio remote control bidirectional (prod no. 6708 only in connection with prod no. 3864
