EM 440-3x230V/10,0kW High-powered insulation blowing machine View larger

EM 440-3x230V/10,0kW High-powered insulation blowing machine


New product

EM 440-3x230V/10,0kW High-powered insulation blowing machine


€ 0,00

Add to wishlist


Heavy duty insulation blowing machine for processing certified insulation materials, e.g. cellulose, wood fibre, rock wool and many more professionally. Due to its design, the machine is ideally suited for both stationary plant use and mobile use on-site.

Important features:
The 2-stage material conditioning unit, consisting of four shredding shafts and one shredder, can easily break up and finely shred highly compacted processing materials (max. 200kg/m³ packing density). The material flow volume can be conveniently selected via the cable or radio remote control (optional) in approx. 20 levels by positioning the electric airlock feed gate. The three primary and two additional high performance radial compressors generate the required air power effortlessly. For optimum cooling, the amplifier blowers suck in their cooling air from an external source. The engine room is actively cooled with ambient air with a fan in every operating condition. All important machine settings can be set directly from the injection point by cable or radio remote control. The machine is equipped with three 230V~/16A power connections. For more information, see product data sheet.

Technical details:
- Power/material throughput: up to 2.250 kg/h (based on cellulose), depending on application, material and delivery
- Hopper volume: 1,0 m³
- Dimensions: 1300 x 1020 x 1800 (L x W x H)
- Empty weight: 460 kg
- Filling height: 1260 mm
- Conditioning: 4x shredding shafts, 1x shredder
- Material setting: controllable via control by setting the electrical airlock feed gate
- Machine control: cable control KFB2000 (standard) or FFB2000/FFB2000-Pro (optional)
- Electrical connection: 3x 230V/50 Hz/16A (full load) (+/- 5%), operation with 2x 230V/50 Hz/16A or 1x 230V/50 Hz/16A at reduced air power possible
- Inside the insulation blowing machine, frequency guided drives are installed. The electrical connection must be made according to the applicable national electrical regulations.
- Power rating: 10,0 kW
- Blower: 5x high-powered radial fans (2x 1,8 kW, 3x 1,45 kW)
- Conveying pressure: max. 420 mbar
- Air flow (nominal/gauged): 975/850 m³/h
- Airlock volume: 20 L
- Outlet: NW90 (3 1/2'') (direct reduction to NW75 (3'') optional)
- Airlock chamber ventilation for optimal processing throughputs
- Incoming air filter with quick fastener, NW90 intake air duct
(All values are approximate)

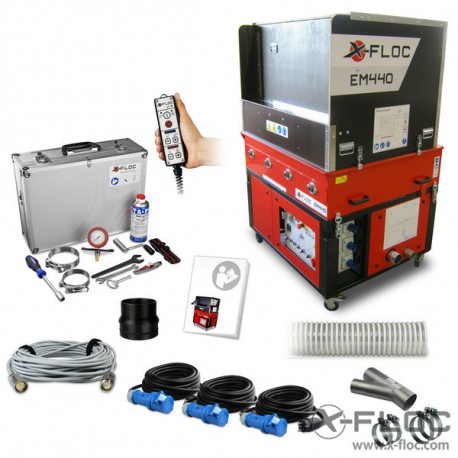

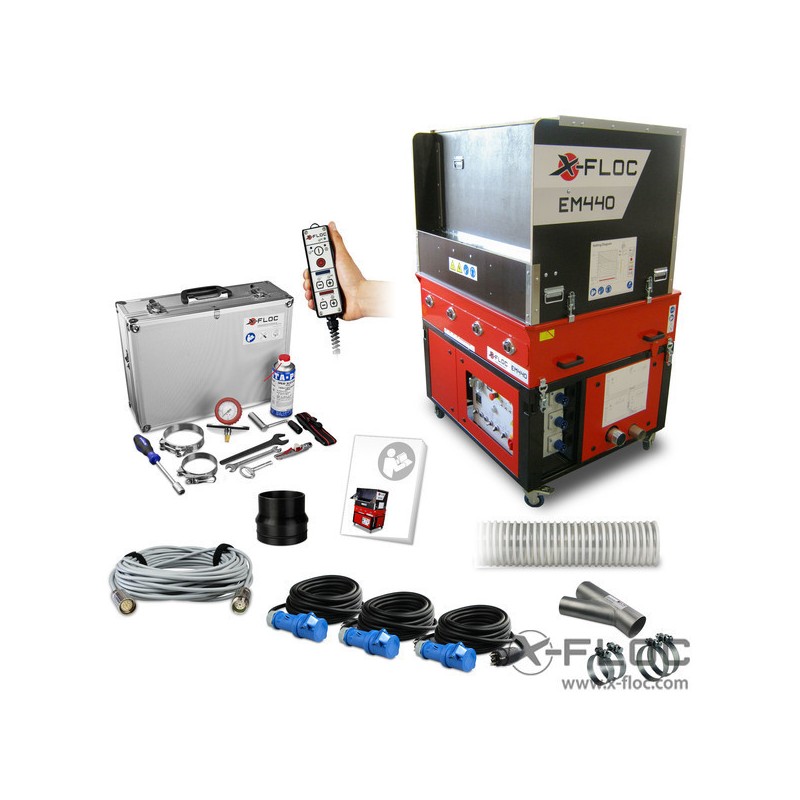

Scope of delivery:
- Fully functional insulation blowing machine, consisting of machine base, machine top with foldable support and dust-reducing attachment
- Basic machine set, consisting of:
1x small-parts case with 1x cable remote control KFB2000 and carrying belt, 1x crank tool, 1x pressure gauge, 1x control cabinet key, 1x open-ended spanner NW13, 1x open-ended spanner NW24, 1x socket spanner NW13, 1x silicone spray, 1x double open-ended spanner, 1x hose clamp NW90, 1x quick-connect clamp NW75, 1x belt tension measuring device, 3× 230V/10m power cable, 1x 50m control cable ring PUR, approx. 2m NW90 air suction hose, approx. 2m NW75 air suction hose, 1x connection set for amplifier (hoses, clamps, Y-piece) machine folder incl. Operating instructions, inspection records and EC declaration of conformity

Optional equipment:
- Radio remote control FFB2000 -Pro instead of cable remote control (prod. No. 5243 or 5154)
- Optional add-on AE - blow-off unit (EM440-3x230V/10.0kW only) (prod. No. 6526, obligatory)
- Optional add-on DS - Adjustable airlock rotation speed (prod. No. 5060)
- Additional option hopper top piece V 0,914m³ (prod. No. 8522)
- Mounting foot (prod. No. 5301) or Mounting elements for blowing machine (prod. No. 7294) or Forklift shoes for trailer mounting (prod. No. 10742)
- Intake socket 90° NW90 (prod. No. 5613)
- Intake socket 90° NW75 (prod. No. 5614)
- Direct reducer piece NW90-75 (3½-3'') (EM4XX-NW90 after year 06/2018) (Prod. No. 8936)
- Accessories set NW75/63 for loose-fill insulation (nonabrasive) (prod. No. 5246
