Heavy duty compact insulation blowing machine for processing certified insulation materials, e.g. cellulose, wood fibre, mineral fibre as well as granules and other materials. Due to ist compact design, the machine is ideally suited for mobile use on-site.

Important features:
The innovative 2-stage material conditioning unit with the three shafts and an additional shredding shaft can easily break up and finely shred highly compacted processing materials (max. 220kg/m³ packing density). The material flow volume can be set by the airlock feed gates position and the airlock rotors rotational speed. A 3-stage turbine and two additional high-powered radial fans generate the required air power effortlessly and can be used for suction purposes, too. All important machine settings can be set directly from the injection point by cable or radio remote control. The machine is equipped with one 400V/16A three-phase power connection (CEKON) and one 230V power connection. For more information, see product data sheet.

Technical details:
- Power/material throughput: up to 1400kg/h (based on cellulose), depending on application, material and delivery
- Hopper volume: 0,315 m³
- Dimensions: 990 x 830 x 1740 (L x W x H)
- Empty weight: 302kg
- Filling height: 1250 mm
- Conditioning: 3x shafts, 1x shredding shaft
- Material setting: controllable via control by setting the airlock rotors rotational speed or manually by setting the airlock feed gate
- Machine control: cable control KFB2000 (standard) or FFB2000/FFB2000-Pro (optional)
- Electrical connection: 1x 400V/ 50Hz/16A (+/- 5%) and 1x 230V~/16 A each with 16A (type B or C circuit breaker or slow blow screw in plug fuse)
- Inside the insulation blowing machine, frequency guided drives are installed. The electrical connection must be made according to the applicable national electrical regulations.
- Power rating: 9,2 kW
- Blower: 1x 3-stage turbine 4,0 kW and 2x high-powered radial fans with 3,3 kW total power
- Conveying pressure: max. 420 mbar
- Air flow (nominal/gauged): 795/660 m³/h
- Airlock volume: 18.5 L
- Outlet airlock: NW75 (3'') (direct reduction to NW63 (2½'') or NW50 (2) possible)
- Outlet amplifier: NW63 (2½'')
- Airlock chamber ventilation for optimal processing throughputs
- Incoming air filter with quick fastener, NW90 intake air duct
(All values are approximate)

Scope of delivery:

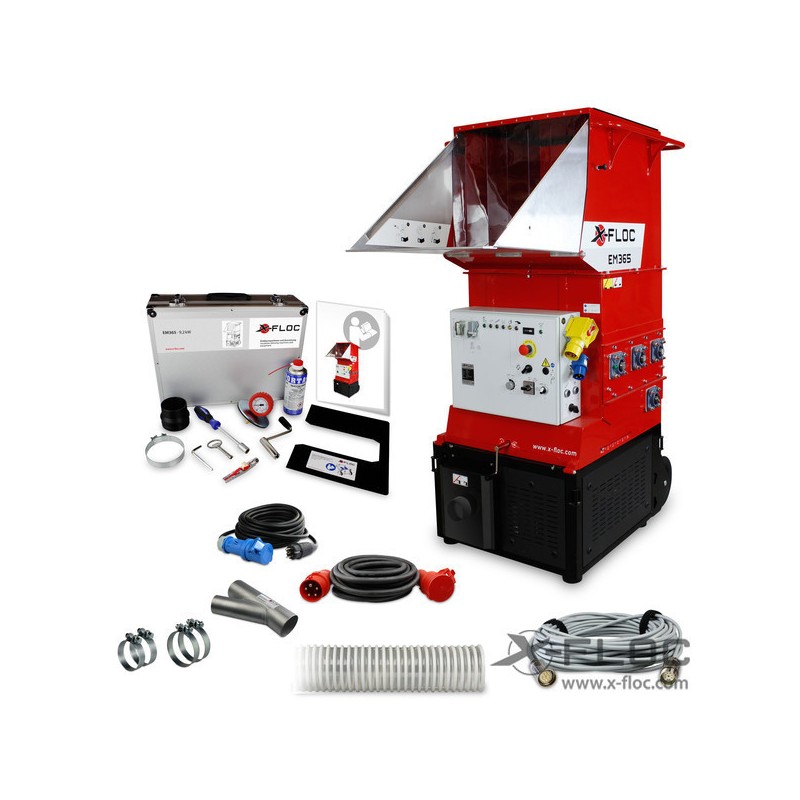

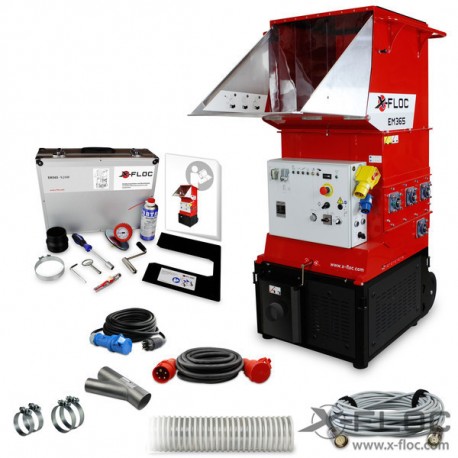

- EM365 insulation blowing machine, ready for connection and operation
- Basic machine accessories, consisting of:

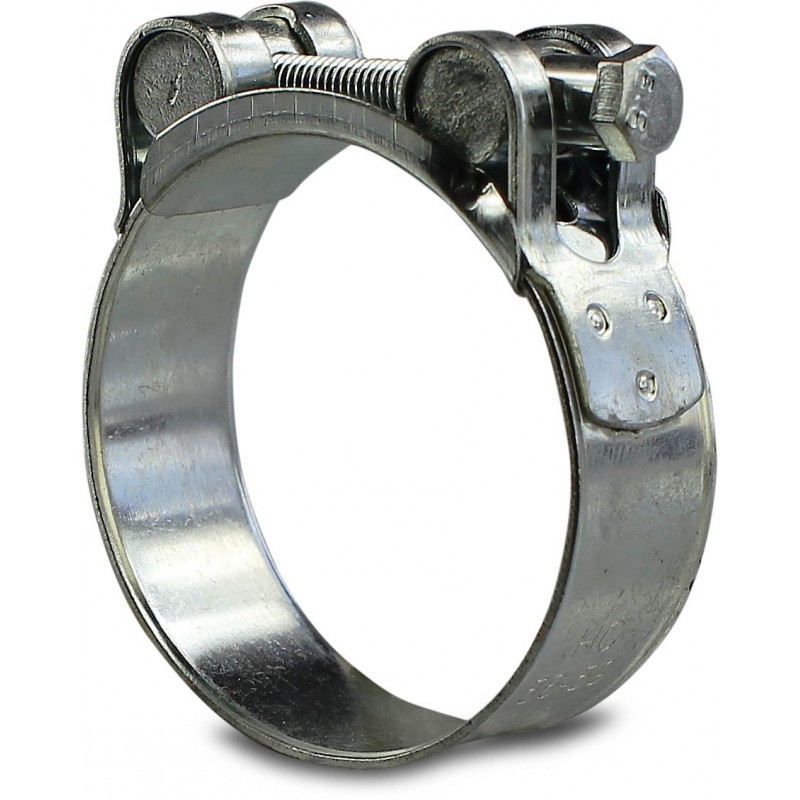

Accessories case with cable remote control KFB2000, pressure gauge, switch cabinet spanner, socket spanner SW13, hose clamp NW90, material slide crank, airlock cover plate, mains cable 400V/10.0m (CEE-CEE), mains cable 230V/10.0m (CEE-Schuko), control cable ring PVC (50. 0m), air intake hose NW90 (approx. 2.0m long), air intake hose NW75 (approx. 2.0m long), connection set for amplifier (hoses, Y-piece, terminals), machine folder with operating instructions, test reports and CE declaration of conformity
Optional equipment:
- Radio remote control FFB2000 -Pro instead of cable remote control (prod. No. 5243 or 5154)
- Additional option airlock feed gate controllable via remote (prod. No. 7449)
- Direct extension NW75-90 (3-3,5) (prod. No. 6746, conveyor line NW90 (3,5) necessary)
- Accessory set for loose insulation material NW75/63 (3/2,5) (nonabrasive, prod. No. 5246)
- Mains voltage display for 230V connection (prod. No. 4604)
- EM3XX: Fastening element set for blowing machine (prod. No. 10372)
- Insulation blowing tools (various prod. No.)
- For more accessories, see price list / available on request

Power supply options:
- 400V phase adaptor and neutral conductor monitor with cut-out protective system (prod. No. 4553)
- Power adaptor 400V, 25m ring (prod. No. 2492)

At on-site feeding point with a 32A connection:
- Power adaptor socket strip 400V / 32A - 2x400V / 16A (prod. No. 7273)
- Power adaptor 400V/32A, 10m ring,
