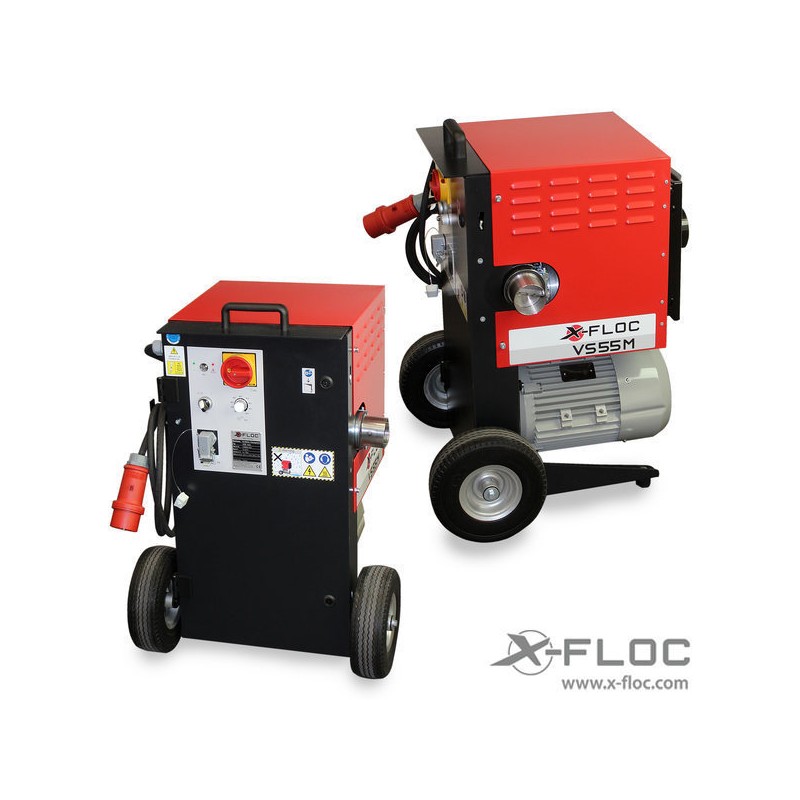

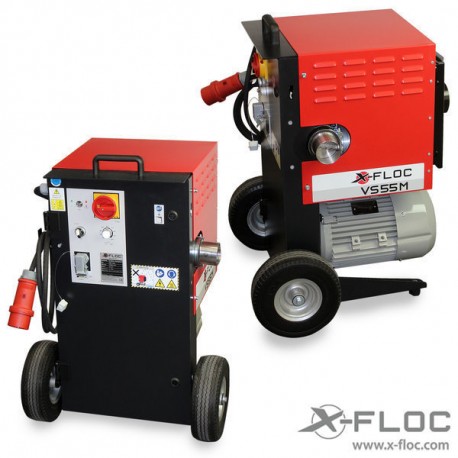

VS: Amplifier- / Suction station VS55 mobil

High-performance turbine booster/exhaust station completely assembled and ready for operation. Flexible use on construction sites or in the factory. Good manageability by means of sack truck function.

Ideally suited for the following applications:
- Reinforcement of blow-in machines
- Site cleaning, suction of foreign materials, dismantling of elements (in connection with a suction barrel)
- Dedusting of blowing machines

Technical data:
- Intake manifold: NW90 (3½'')
- Blow-out nozzle: NW63 (2½'')
- Power supply: 400V/50Hz/3x16A/N/PE (+/- 5%)
- Rated power 5,5kW
- Max. overpressure: approx. 470 mbar (adjustable)
- Max. negative pressure: approx. 430 mbar (adjustable)
- Max. air volume: approx. 355 m³/h (free blowing)
- Operating mode switch manual / synchronous operation
- Infinitely variable level control from 20-100% (via potentiometer or blow-in machine)
- Control lamp for indicating operational readiness
- Dimensions: approx. 605 x 560 x 750mm (LxWxH)
- Weight: approx. 65kg

Note on the power connection: Frequency-controlled drives are integrated in the amplifier/suction station. The electrical connection must be made in accordance with the applicable national electrical regulations.

- Stable, practical transport frame
- 5-stage high-performance turbine made of aluminium with motor and belt drive, intake filter and check valve
- Electrical switchgear incl. Master-slave connection, mains connection with CEE plug and connecting cable approx. L 1m, main switch, ready indicator and operating elements

Options:
- VS: Connecting control cable for control from the blowing machine (L approx. 5m) (Prod. No. 1856)
- VS: Connecting Set for Amplifier NW63/NW63-NW63 (Prod. No. 4935)
- VS: Connecting Set for Amplifier NW63/NW75-NW75 (Prod. No. 4934)
- VS: Connection set for amplifier NW63/NW90-NW90 (Prod. No. 7870)
- VS: Suction drum V 115L (Prod. No. 1160)
- VS: Suction drum V 250L (Prod. No. 3075)
