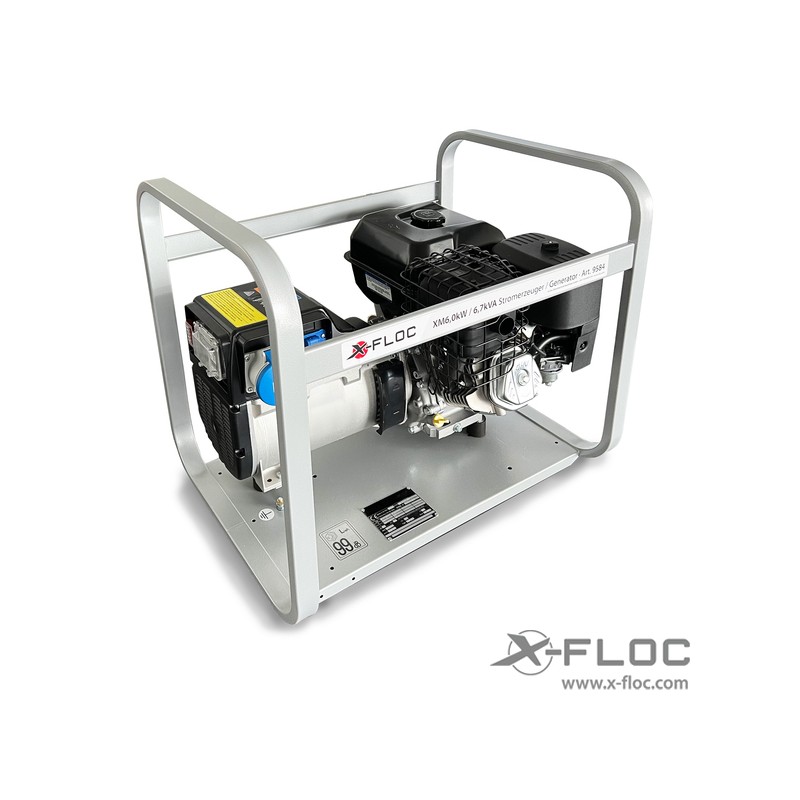

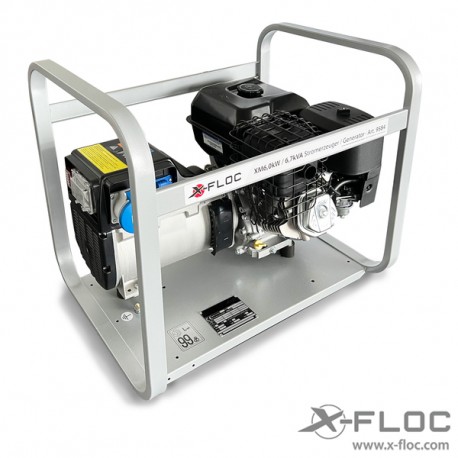

Power generator XM6,0kW / 6,7kVA

Compact, mobile single-phase synchronous generator, self-regulating.

Specifications:
- Engine:Honda GX 390 petrol engine air-cooled
- Power, 1~phase (stand-by): 6kW / 6.7kVA / 230 V / 29.1 A
- Power, 1~phase (P.R.P.): 5kW / 5.5kVA / 230 V / 23.9 A
- Running time (75% load): 2.5h
- Noise level, measured: 99 LWA (74 dB(A) - 7 m
- tank capacity: 6,6 l
- 50 Hz, synchronous, self-exciting, self-regulating, brushless
- Power connections: 2x230V 16A 2P + T (Schuko)
- Three-phase rated power 12KVA / 400V / 17A
- 4-times starting current
- 3-amplified phases
- Thermal circuit breaker
- Protection class IP 23
- Dimension mm: 770x520x650
- Weight: Approx. 75 kg
- Robust frame and construction
- Protective separation with insulation monitoring and shutdown

For example, suitable for the following machine types:
- EM100
- M99, M99-DS and M99-DS-Pro
- VS28 and VS33
- M95-230V-3.6kW, M95-230V-3.7kW, M95-2x230V-5.1kW

Options:
- Power generator XM: FI circuit breaker for XM6.0kW/6.7kVA (art. no. 9822)
- Power generator XM: Chassis CM8 (Art.-No. 9821)
