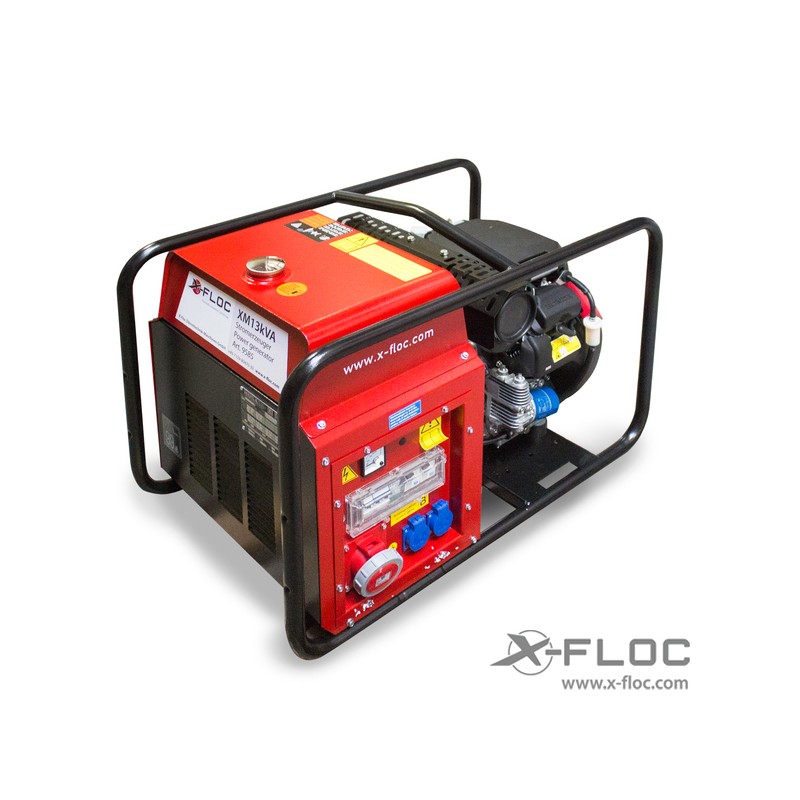

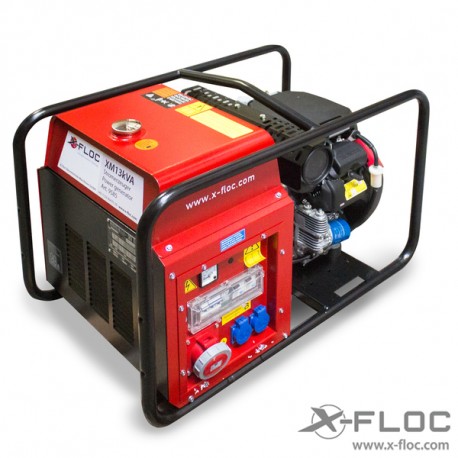

Power generator XM13kVA/10,4kW petrol (IP54)

9585

New product

Power generator XM13kVA/10,4kW petrol (IP54)

Details

€ 0,00 tax excl.

Add to wishlist

Details

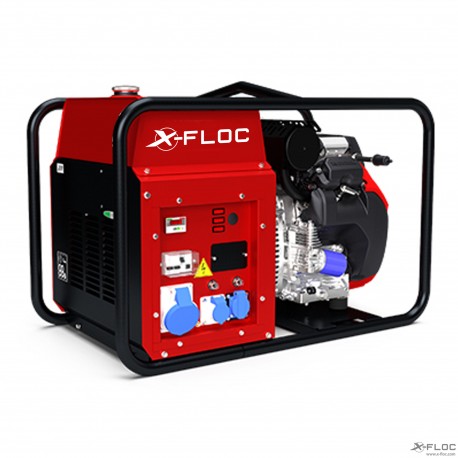

Power generator for operating an X-Floc insulation blow-in machine and suitable machines and consumers.

----------------------------------------------------------------------
Features:
- Electric starter with ignition key
- Voltage control (electronic)
- Sturdy frame with central lifting bracket
- Brushless power generator
- Clear and protected connection and control panel
- Operating hours counter
- Manually controllable throttle valve
- Air control
- Voltmeter
- Oil warning light (LED)
- Engine cut-off in case of insufficient oil pressure
- Automatic fuse
- Magneto-thermal switch (three-phase output)
- Magnetothermal switch (single-phase output)
- Insulation monitoring
- Thermoswitch for protection against 230V earthed sockets: 2x16A
- Earth terminal
- Conforms to EU directives for noise and safety

----------------------------------------------------------------------
Technical data:
- Power 3-phase LTP: 13kVA (10.4kW), 400V, 18.7A
- Power 3-phase PRP: 12kVA (9.6kW), 400V, 17.3A
- Power 3-phase COP: 6kVA, 230V, 26A
- Connections:
1x 400V/16A CEE (IP67)
2x 230V/16A Schuko
- Motor speed: 3000 rpm
- Engine cooling: Air
- Fuel: petrol
- Tank capacity: 18 l
- Running time at 75% PRP: approx. 4.6h
- Sound level: 99 db(A)
- Protection class: IP54
- Dimensions: 935 x 525 x 645 mm (L x W x H)
- Empty weight: approx. 160 kg

----------------------------------------------------------------------
For example, suitable for the following machine types:
Beispielsweise geeignet für folgende Maschinentypen:
Beispielsweise geeignet für folgende Maschinentypen:
- EM100, EM100 + VS28, EM100 + VS33, EM100 + VS55M
- M99, M99 + VS28, M99 + VS33,
- M99-DS, M99-DS + VS28, M99-DS + VS33,
- M99-DS-Pro, M99-DS-Pro + VS28, M95-DS-Pro + VS33
- M95-230V, M95-230V + VS28, M95-230V + VS33,
- M95-2x230V, M95-400V, M95-400V, M95-400V
- EM 320-2x230V, EM 325-3x230V
- EM 340-400V, EM 345-400V+230V (u.v.)
- EM 360-400V, EM 365-400V+230V
- EM400-400V
- EM430-400V
- EM440-3x230V (u.v.)

----------------------------------------------------------------------
Optional accessories on request (selection):
- Manual chassis
- Lockable tank cap
- Earthing kit
