Impact Excitation Test Bench

4179

New product

Impact Excitation Test Bench

Details

€ 0,00 tax excl.

Add to wishlist

Details

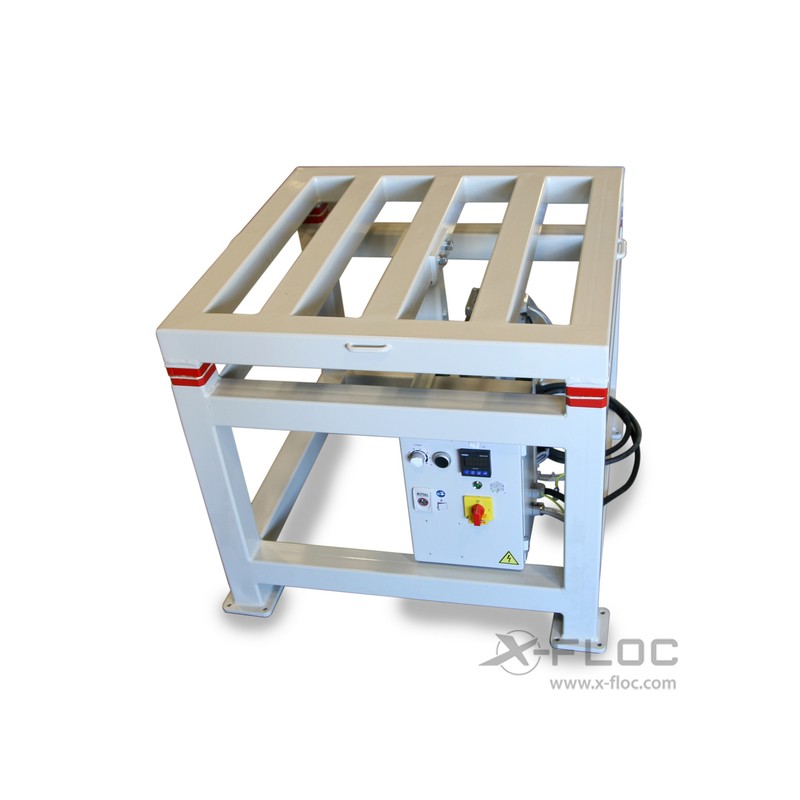

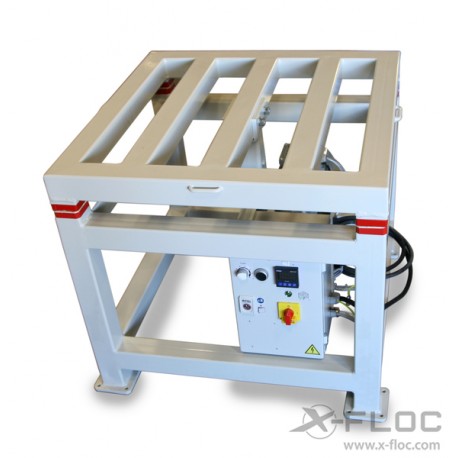

Test rig for settling for the determination of settlement of loose fill insulation respective open blow insulating material. Suitable for test basket 0,1 m³ or other test bodies. Test rig follows the specifications in the draft of the technical standard ISO/CD 18393 resp.. prEN 15101-1:2010

Lift table with 4 pieces linear units maintained.
Lift: 10 to 110 mm, adjustable in 5 steps.
Power supply: 230V / 50 Hz / PN
Power rating: Appr. 0,8kW
Lift velocity: stepless adjustable
Test cycles adjustable from 11000 (and more)
Maximum load: appr. 60 kg
Inclusive butt strap to clamp the test body
Rugged frame made of steel profiles, surface coated
Dimensions: appr. 750 x 750 x 670 (L x W x H)
Weight: appr. 101kg

Options:
- Measurement devices: Testing basket (perforated metal crate) V 0.1m³ (Art.-Nr. 315)
- Measurement device: 0.1 m³ testing unit (Art.-Nr. 3946)
