Injection lance round, NW75/50

2675

New product

Injection lance round, NW75/50

Details

€ 906,30 tax excl.

Add to wishlist

Details

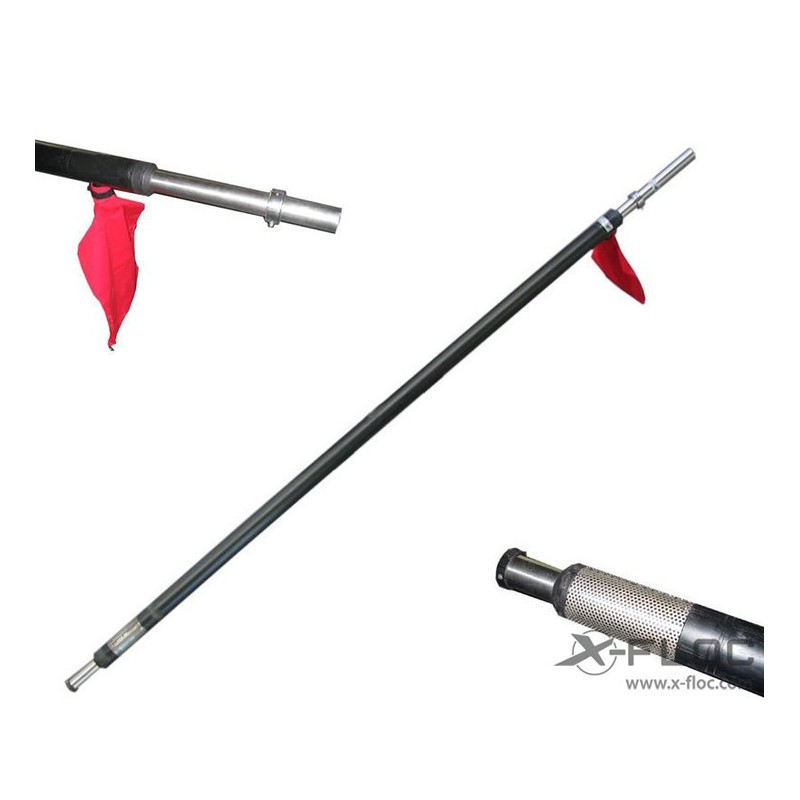

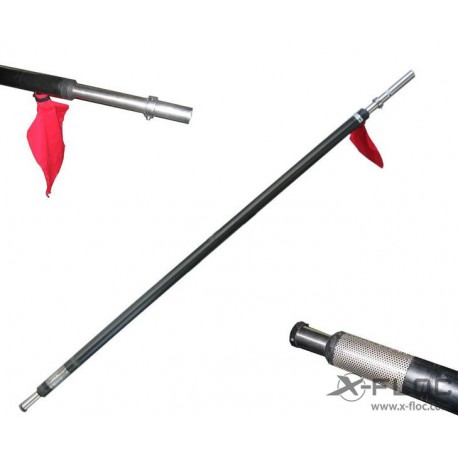

Ventilated injection lance for the filling of lying or slightly inclined wall- and roof elements
------------------------------------------------------------------------------
Advantages:
- Wide selection of lengths
- Easy to operate
- Enables an uniform distribution and compression of the insulation material
- Active/passive ventilation
------------------------------------------------------------------------------
Technical details:
- Useful lengths: 2500 / 2800 / 3200 / 3500 / 3800 / 4700 / 5550 (all figures in mm)
- Overall lengths: 2950 / 3250 / 3650 / 3950 / 4250 / 5150 / 6000 (all figures in mm) The desired length needs to be specified when ordering.
- Outer pipe made of PE black, D 75
- Inner pipe made of aluminium, 50x1,5 (if required, optionally available as made of stainless steel)
- Ventilation connection for an active (vacuum station) or passive (dust bag) ventilation
------------------------------------------------------------------------------
Scope of delivery:
- Injection lance
- Dust bag
- Operating instructions
------------------------------------------------------------------------------
Optional accessories:
- VS: Amplifier-/vacuum station VS28 complete set 115 l (prod. no. 2886)
- VS: Amplifier-/vacuum station VS28 complete set 250 l (prod. no. 5017)
- VS: Amplifier-/vacuum station VS33 complete set 115 l (prod. no. 5939)
- VS: Amplifier-/vacuum station VS33 complete set 250 l (prod. no. 5940)
- DDE: Hole saw with ejection system complete D 85,5mm (prod. no. 4977)
- Reducer tube connector NW 75-50 (aluminium) (prod. no. 1262)
------------------------------------------------------------------------------
Alternative article:
- Injection lance NW75, Telescope- (prod. no. 4626)

------------------------------------------------------------------------------
++++++ Specification required for an order ++++++
The specification of the desired useful length is required for an order.
The useful length usually corresponds to the length of the longest compartment to be filled.
The total length is approx. 40cm more than the useful length.
Example: Compartment length: 3,200mm --- Useful length 3-200mm

Required for the order Useful length L ______mm
+++++++++++++++++++++++++++++++++++++++++++++++++
