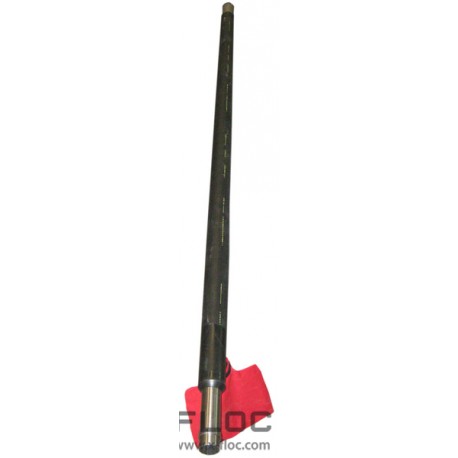

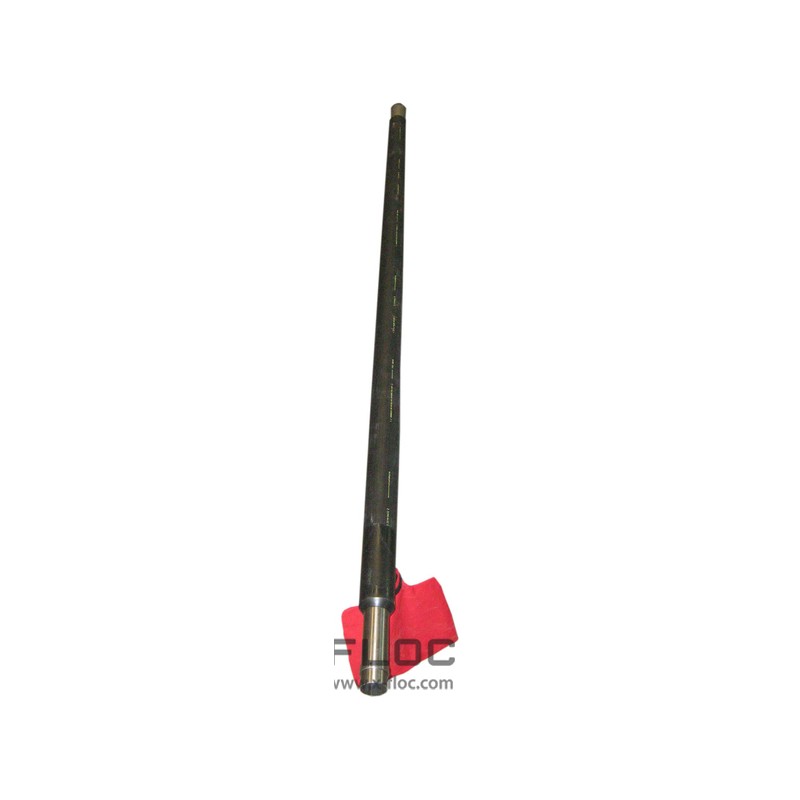

Injection lance round, NW90/63

Ventilated injection lance for the filling of lying or slightly inclined wall- and roof elements
------------------------------------------------------------------------------
Advantages:
- Wide selection of lengths
- Easy to operate
- Enables an uniform distribution and compression of the insulation material
- Active/passive ventilation
------------------------------------------------------------------------------
Technical details:
- Standard length: 3000mm
- Overall length: 3300 mm
The desired length needs to be specified when ordering
- Outer pipe made of PE black, D 90
- Inner pipe made of aluminium, 63,5x1,5 (if required, optionally available as made of stainless steel)
- Ventilation connection for an active (vacuum station) or passive (dust bag) ventilation
------------------------------------------------------------------------------
Scope of delivery:
- Injection lance
- Dust bag
- Operating instructions
------------------------------------------------------------------------------
Optional accessories:
- VS: Amplifier-/vacuum station VS28 complete set 115 l (prod. no. 2886)
- VS: Amplifier-/vacuum station VS28 complete set 250 l (prod. no. 5017)
- VS: Amplifier-/vacuum station VS33 complete set 115 l (prod. no. 5939)
- VS: Amplifier-/vacuum station VS33 complete set 250 l (prod. no. 5940)
- DDE: Hole saw with ejection system complete D 102mm (prod. no. 7537)
- Reducer tube connector NW90-75 (aluminium) (prod. no. 1971)

------------------------------------------------------------------------------
++++++ Specification required for an order ++++++
The specification of the desired useful length is required for an order.
The useful length usually corresponds to the length of the longest compartment to be filled.
The total length is approx. 40cm more than the useful length.
Example: Compartment length: 3,200mm --- Useful length 3-200mm

Required for the order Useful length L ______mm
+++++++++++++++++++++++++++++++++++++++++++++++++
