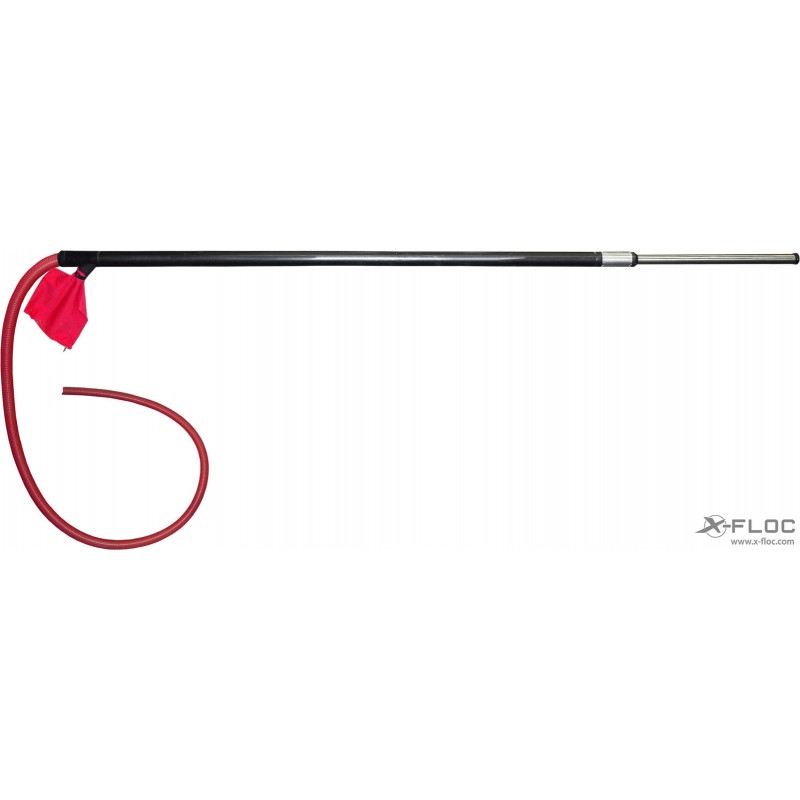

Injection lance NW75, telescope-

Ventilated telescope injection lance for the filling of lying or slightly inclined wall- and roof elements

------------------------------------------------------------------------------
Advantages:
- The expendable telescope injection lance enables a filling of very long elements
- Wide selection of lengths
- Easy to operate
- Enables an uniform distribution and compression of the insulation material
- Active/passive ventilation

------------------------------------------------------------------------------
Technical details:
- Useful lengths: 2000mm up to max. 11300mm
The desired length needs to be specified when ordering
- Outer pipe made of PE black, D 75
- Inner pipe made of aluminium, 50x1,5 (if required, optionally available as made of stainless steel)
- Ventilation connection for an active (vacuum station) or passive (dust bag) ventilation

------------------------------------------------------------------------------
Scope of delivery:
- Injection lance
- Dust bag
- Operating instructions

------------------------------------------------------------------------------
Optional accessories:
- VS: Amplifier-/vacuum station VS33 complete set 115 l (prod. No. 5939)
- VS: Amplifier-/vacuum station VS33 complete set 250 l (prod. No. 5940)
- DDE: Hole saw with ejection system complete D 85,5mm (prod. No. 4977)
- Reducer tube connector NW 75-50 (aluminium) (prod. No. 1262)

Alternative articles:
- Injection lance NW90/63, telescopic (art. No. 10254)

------------------------------------------------------------------------------
++++++ Specification required for an order ++++++
The specification of the desired useful length is required for an order.
The useful length usually corresponds to the length of the longest compartment to be filled.
The retracted length is approx. 40cm more than the useful length divided by 2.
Example: Compartment length: 7.400mm --- Useful length 7.400mm
The retracted length is then: 7,400 : 2 + 400mm approx. 4,100mm

+++++++++++++++++++++++++++++++++++++++++++++++++++++
Usable length L ______mm required for the order
Example:
Effective length longest fillable element: approx. 7,000mm
Total length when extended: approx. 7,400mm
Total length with telescope retracted: 3500 + approx. 400 approx. 3,900mm
++++++++++++++++++++++++++++++++++++++++++++++++++++++
