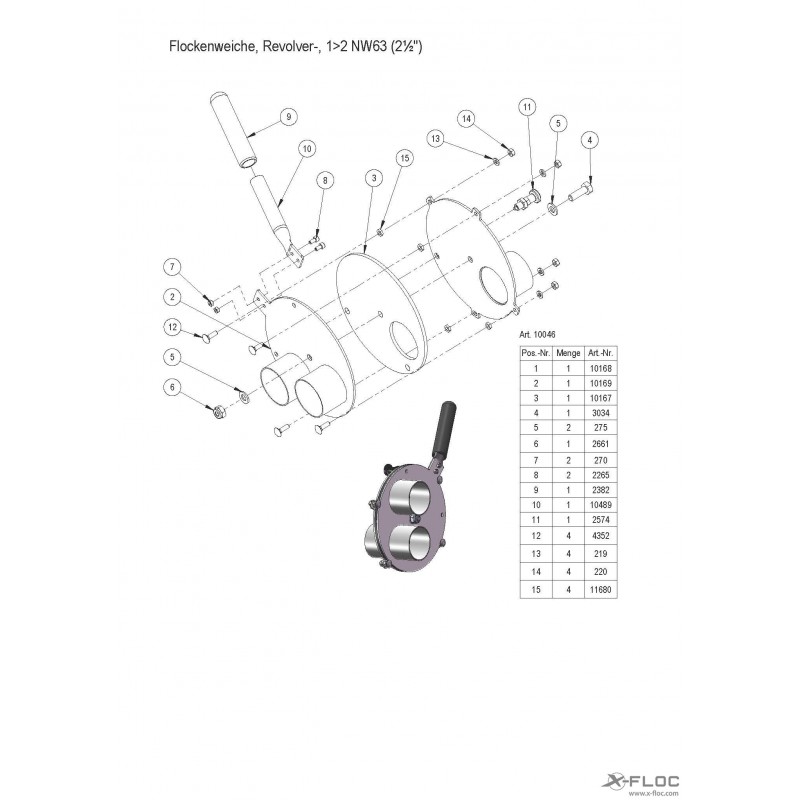

Fibre switch/material switch/pipe switch 1-2 NW63 (2½'')

Material diverter NW63 (2½'') with one inlet and two outlets. Can be used for various applications.

Application examples:
- Exhaust control on machines with integrated amplifier or on external amplifier units connected to an injection machine.
- Filling of elements by diverting the material flow without switching off the injection machine (position 1: running element, position 2: following element etc.)
- Filling of elements which have been fitted with several hoses (position 1: first outlet, position 2: second outlet or "pre-hosing").
-----------------------------------------------------------------------------
Technical data:
- Inlet: 1x NW63 (2½'')
- Outlet: 2x NW63 (2½'')
- Weight: approx. 2.25 kg
- Material: stainless steel

Translated with www.DeepL.com/Translator (free version)

Optional accessories (e.g. for use as an exhaust air diverter for an EM440):
- Hose, cooling water hose NW63 (0.1 piece 0.1m art. No. 3760)
- Hose clamp NW63 (2½'') 68-73 (hinge bolt clamp) (2 pieces art. No. 2822)
