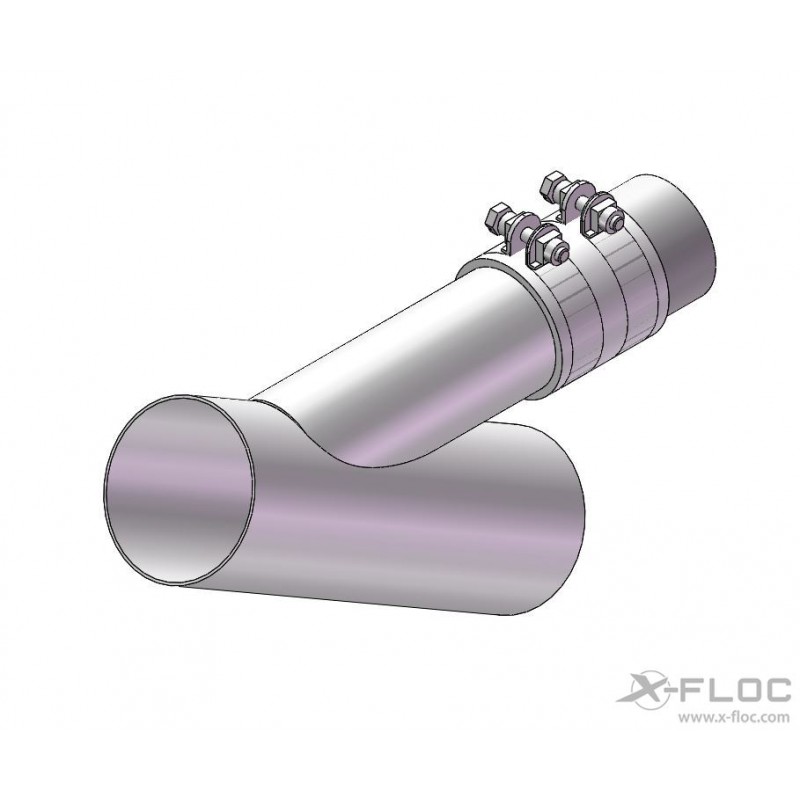

Y-Piece NW75/63-75 (3''/2½''-3'') stainless steel with non-return valve

Stainless steel Lateral pipe fitting with approx. 30° branch angle. Typically used for coupling booster air into a delivery line. Due to the use of thin-walled pipe material, material blockages are practically impossible. The pre-assembled non-return flap effectively prevents any possible backflow of insulating material.

-----------------------------------------------------------------
Technical data:
Connection input 1 (amplifier): NW63(2½)
Connection input 2 (machine): NW75(3)
Outlet: NW75(3)
Material Y-piece: Stainless steel
Material hose clamps: Galvanised steel
Dimensions: approx. 320 x 200 x 75mm (L x W x H)

-----------------------------------------------------------------
Suitable accessories:
- Hose clamp NW75 (3) (item no. 177)
- Hose clamp NW75 (3), quick-release clamp with hook (item no. 223)
- Hose clamp NW63 (2½) (item no. 176)
