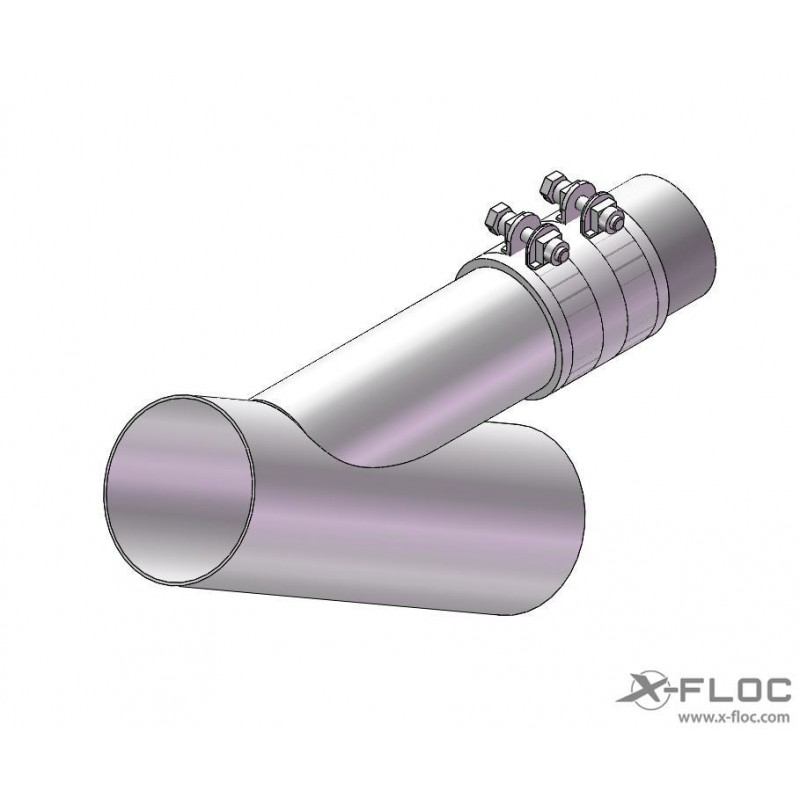

Y-Piece NW90/63-90 (3½''/2½''-3½'') stainless steel with non-return valve

Stainless steel Lateral pipe fitting with approx. 30° branch angle. Typically used for coupling booster air into a delivery line. Due to the use of thin-walled pipe material, material blockages are practically impossible. The pre-assembled non-return flap effectively prevents any possible backflow of insulating material.

-----------------------------------------------------------------
Technical data:
Connection input 1 (amplifier): NW63(2½)
Connection input 2 (machine): NW90(3½)
Outlet: NW90(3½)
Y-piece material: Stainless steel
Material hose clamps: Galvanised steel
Dimensions: approx. 343 x 202 x 90mm (L x W x H)

-----------------------------------------------------------------
Matching accessories:
- Hose clamp NW90 (3½) (item no. 1923)
- Hose clamp NW90 (3½), quick-release clamp with hook (item no. 8816)
- Hose clamp NW63 (2½) (item no. 176)
