VS: Connection set for amplifier MVS40 (NW63/NW90-NW90)

Accessories for connecting a separate amplifier station MVS40 ("module amplifier") with NW63 outlet to a blowing machine with NW90 outlet and a blowing plate with NW90 inlet. A butterfly non-return valve NW63 to prevent material backflow is included in the MVS40

-----------------------------------------------------------------
Technical data:
Connection input 1 (amplifier): NW63(2½)
Connection input 2 (machine): NW90(3½)
Outlet: NW90 (blowing plate): (3½)
Material Y-piece: Stainless steel
Hose material: PU
Material hose clamps: Galvanised steel
Length of connection cable: 3,6 m

-----------------------------------------------------------------

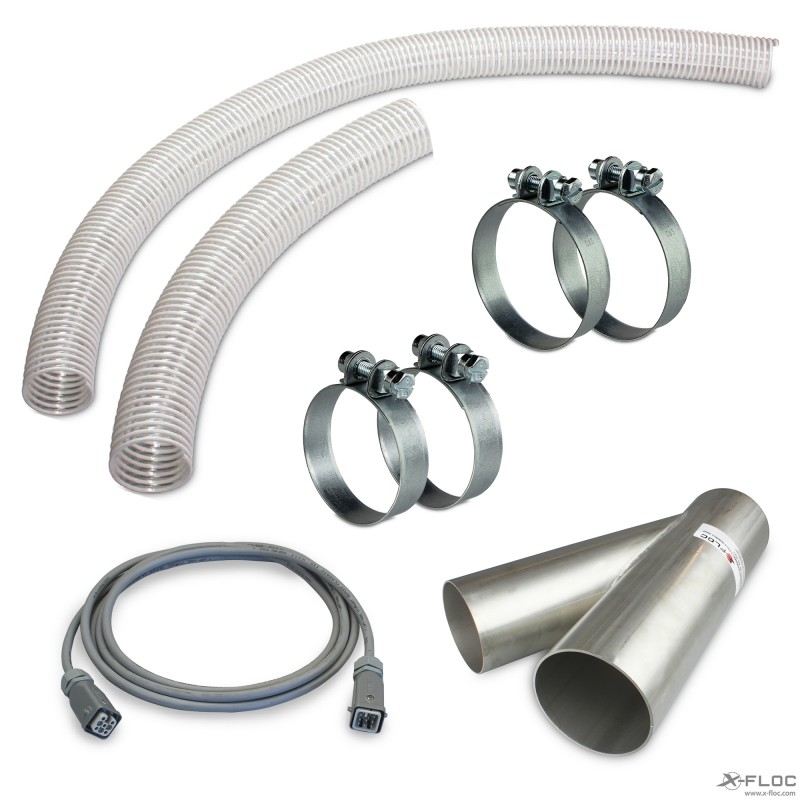

Scope of delivery:
- 1x MVS40: Connection control cable L approx. 3.6 m (art. No. 10962)
- Y-Piece NW90/63-90 (3½''/2½''-3½'') stainless steel (art. No. 6670)
- 1.5m delivery hose NW63 (2½)
- 0.5m delivery hose NW90 (3½)
- 2x hose clamp NW63 (2½) (item no. 176)
- 2x hose clamp NW90 (3½") (item no. 1923)
