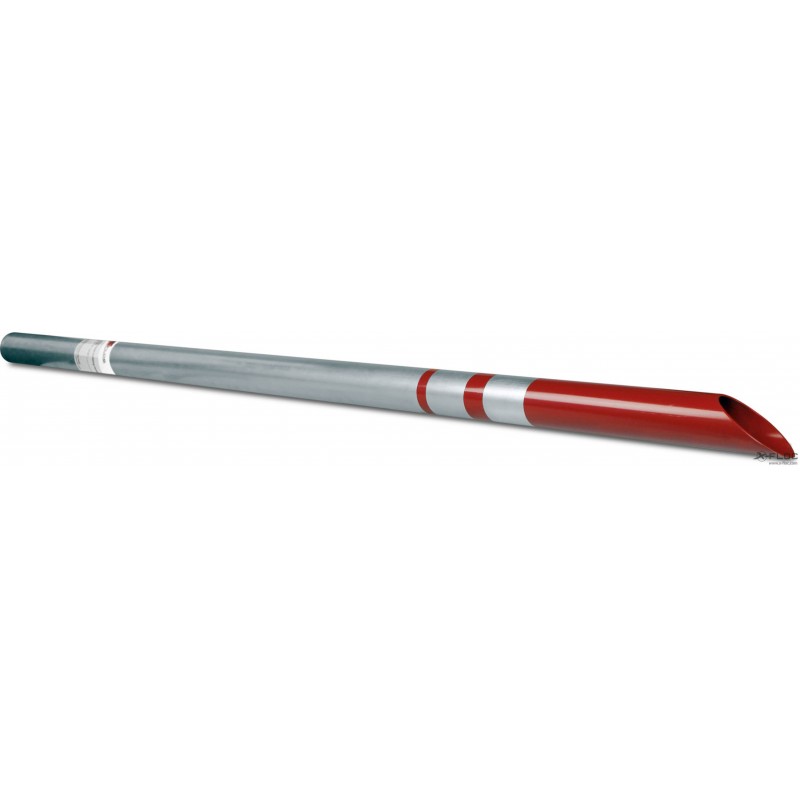

Insulating needle NW75-straight

Straight insulating needle with slanting outlet for blowing lying elements. Enables a pinpoint insertion and repressing of the insulation material. A special shaped top with continuous tagging directs the material current.

Hose connector and diameter: NW75
Material: Aluminium
Max. total length: up to 6m
Required blow-in opening: -Ø 76mm

(Price applies to all insulating needles with a length of up to 3m max; more special lengths (max. 6m) are to be calculated as follows: price divided through 3 x the desired length in metres.)

Optional Accessories:
- Insulating needle: connector set NW75-50 (prod. no. 6103)
- Insulating needle: connector set NW75-63 (prod. no. 6124)

Similar articles:
Insulating needle, bent
- NW38-90 (prod. no. 5304) | NW50-80 (prod. no. 6180)
- NW50-144 (prod. no. 5303) | NW50-184 (prod. no. 5153)
- NW63-124 (prod. no. 5836) | NW63 -184 (prod. no. 6390)
- NW75-120 (prod. no. 6710) | NW75 -180 (prod. no. 6711)

Insulating needle, straight (L up to 6m)
NW38-straight (prod. No. 6028) | NW50-straight (prod. No. 5730)
NW63-straight (prod. No. 5839)

Notes:
- Max. usable length that can be ordered L approx. 5.85m
- Total length insertion depth +15cm
- From approx. 1.5m total length upwards, the goods are bulky goods and, depending on the length, must be sent in separate parcels or as general cargo with a forwarding agent.

+++Deviating version +++
Useful length: L _______ (Please specify when ordering)
++++++++++++++++++++++++
