Details

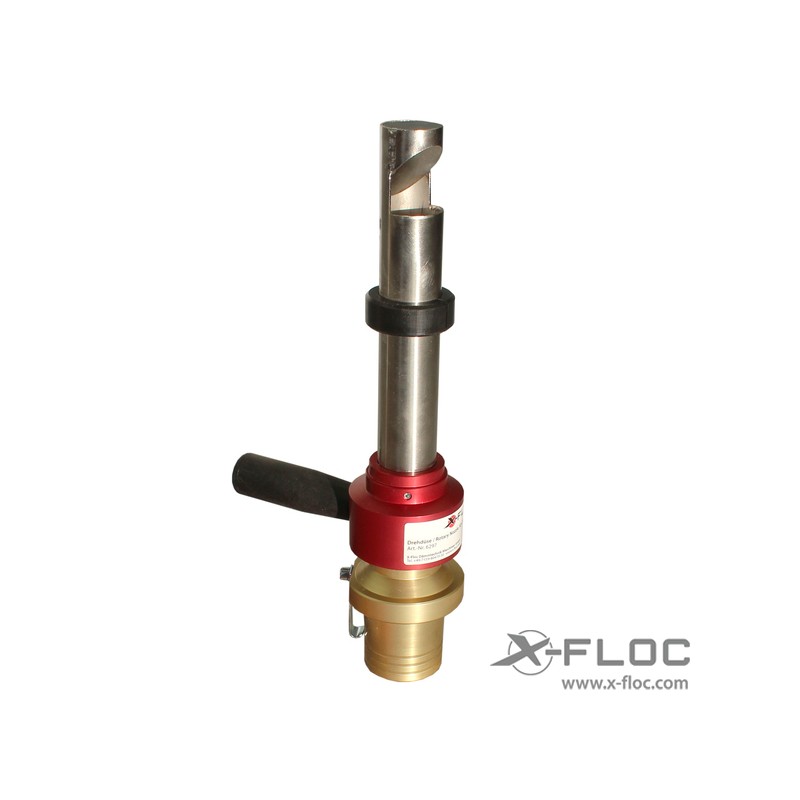

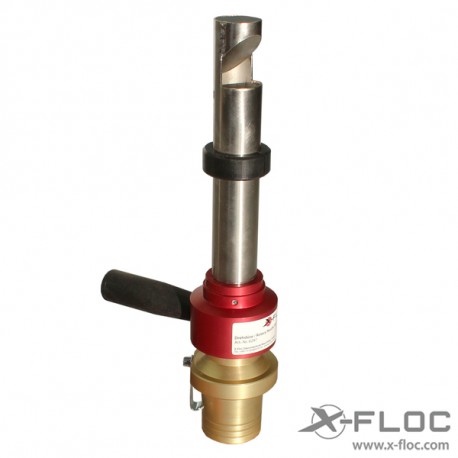

Rotary nozzle for injecting insulation material.
Well suited for insulation works at large filling radii and when processing loose bulkware (e.g. SLS20, Rigibead, HK35, Thermofill S, Knauf Perlite and many more.). Enables a good suggestibility of the material flow.
Technical details:
- Material: aluminium, steel
- Insertion depth: max. 195 mm
- Overall length: 337 mm
- Nozzle pipe: inner diameter 32 mm, outer diameter 35 mm
- Hose connection: NW50 (2), rotatable
- Nozzle outlet: angled, 45°
- Bore hole: 35 mm
Scope of delivery:
- Rotary nozzle with carrying belt, distance ring and operating instructions
