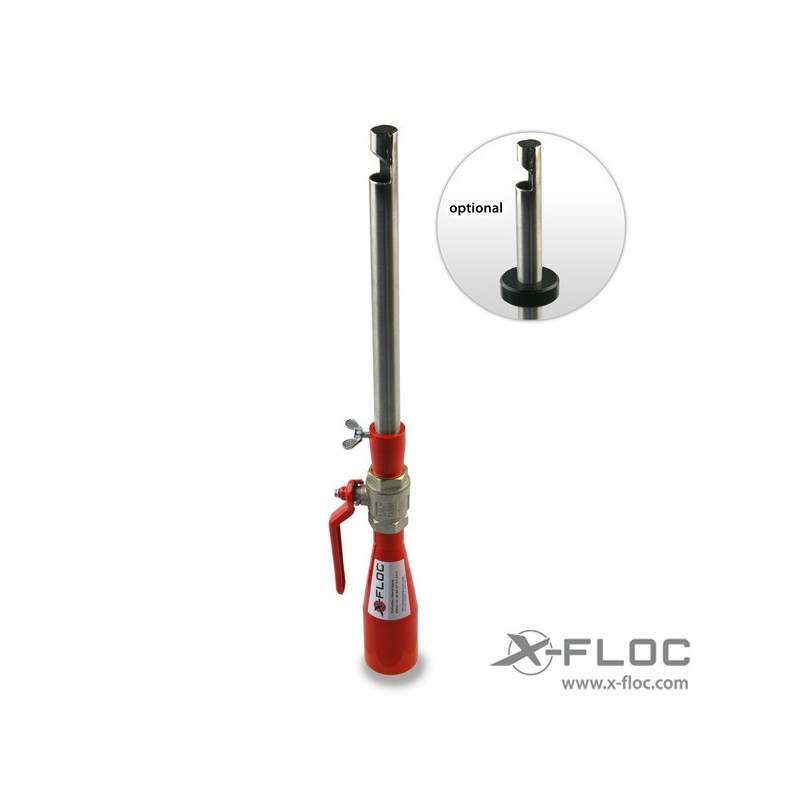

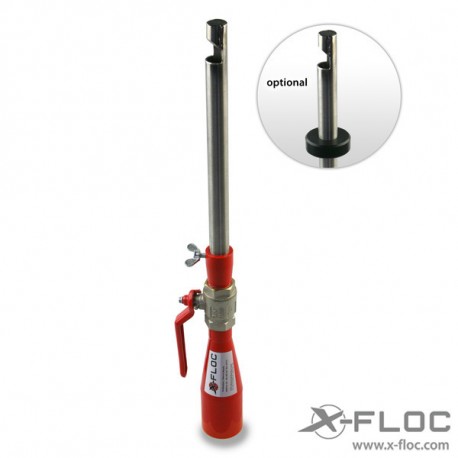

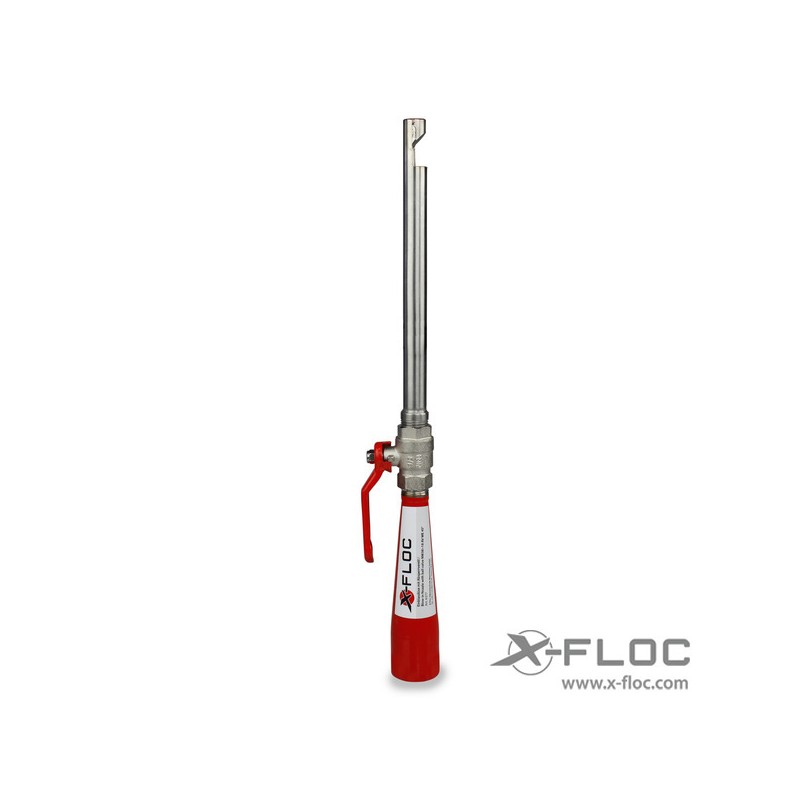

Injection nozzle NW50-24 AV (with shut-off valve), 45° outlet (increased wear-resistance)

Rigid injection nozzle with shut-off valve for injection and post-compaction of loose insulation materials.
------------------------------------------------------------------------------
Advantages:
- Shut-off valve for fast, efficient insulation processing
- Exchangeable nozzle pipe, fastening by means of wing screw
- For large insertion depths, the use of very long pipes is possible
- Pipe outlet with 45° insert, wear-resistant, for lateral deflection of the material flow
------------------------------------------------------------------------------
Technical details:
- Diameter pipe: approx. 24mm
- Insertion depth: approx. 130mm (standard)
+++ other lengths possible on request, please specify when ordering +++
- Material: steel
- Weight: approx. 0,8kg
- Total length: approx. 510mm
- Hose connection: NW50 (2)
- Required drill hole: diameter -24mm
- Valve: ball valve

------------------------------------------------------------------------------
Optional accessories:
- Spacer Mat. PE D24 (Art.-Nr. 2333)
- Hammer drill SDS+ 25mm (Art.-Nr. 11222)

++++++++++++++++++++++++++++++++++++++++++++++++++++
Insertion depth deviating from the standard (130mm): ___________ mm
++++++++++++++++++++++++++++++++++++++++++++++++++++
