VS: Connection set for amplifier EM325/345/365 (NW63/NW75-NW75)

Accessories for connecting the built-in amplifier station with outlet connection NW63 to the outlet connection NW75 of an X-Floc insulation blowing machine EM325, EM345 or EM365.
Including butterfly non-return valve NW63 to prevent material backflow.

-----------------------------------------------------------------
Technical data:
Connection input 1 (amplifier): NW63(2½)
Connection input 2 (machine): NW75(3)
Outlet: NW75(3)
Material Y-piece: Stainless steel
Hose material: PU
Material hose clamps: Galvanised steel
Length of connection cable: 5 m

-----------------------------------------------------------------

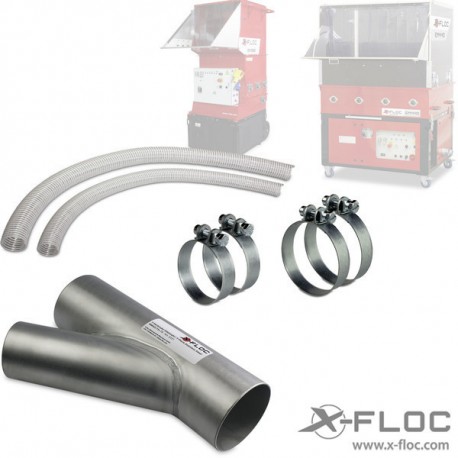

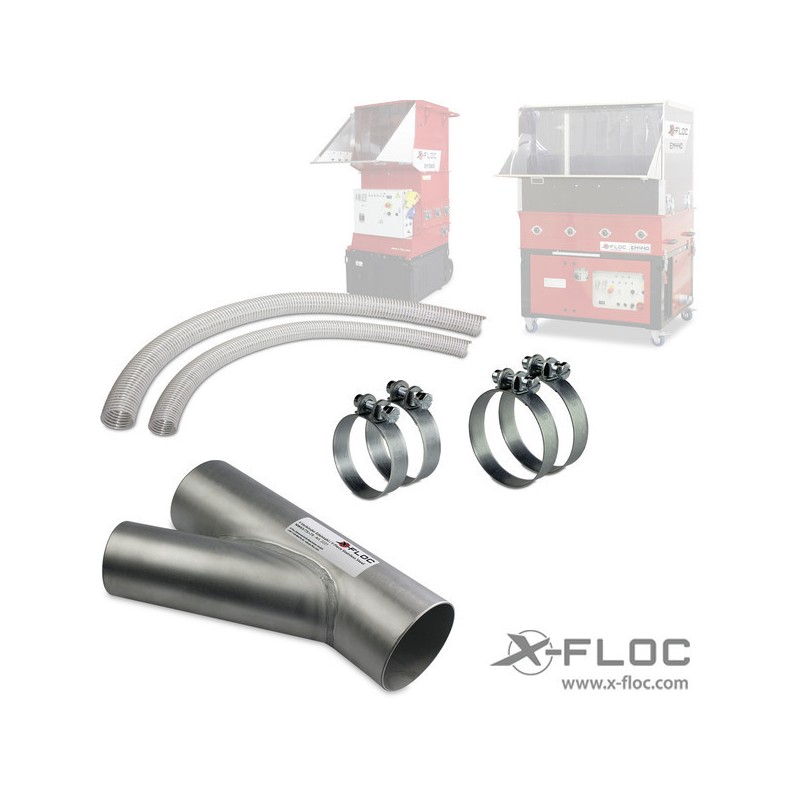

Scope of delivery:

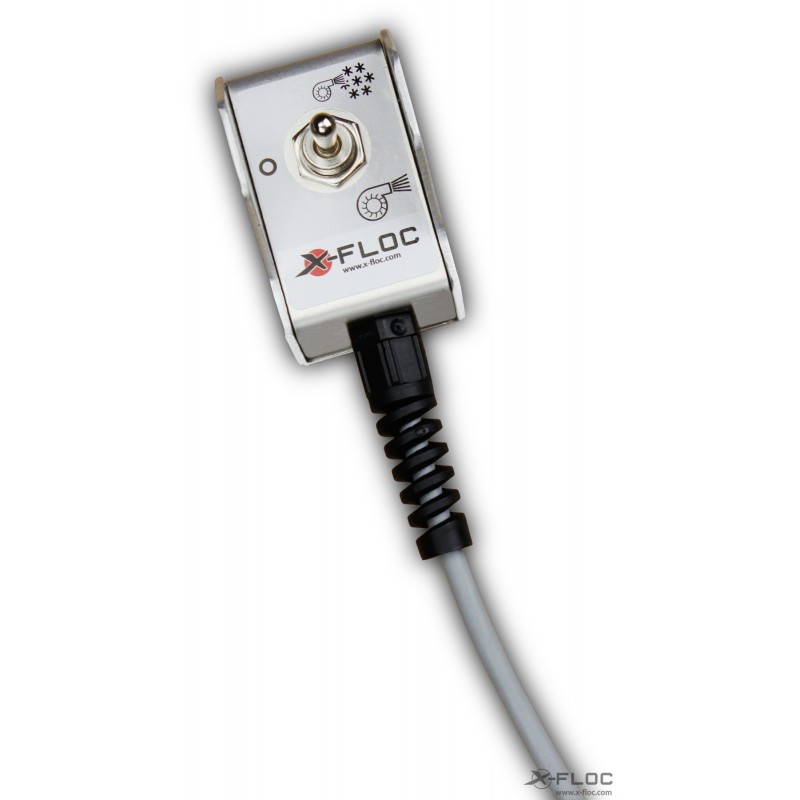

- 1x VS: Connection control cable L approx. 5 m for control via blow-in machine (art. No. 1856)
- Y-Piece NW75/63-75 (3''/2½''-3'') stainless steel with non-return valve (art. No. 10258)
- 1.5m delivery hose NW63 (2½)
- 1.5m delivery hose NW75 (3)
- 2x hose clamp NW63 (2½) (item no. 176)
- 2x hose clamp NW75 (3") (item no. 177)
