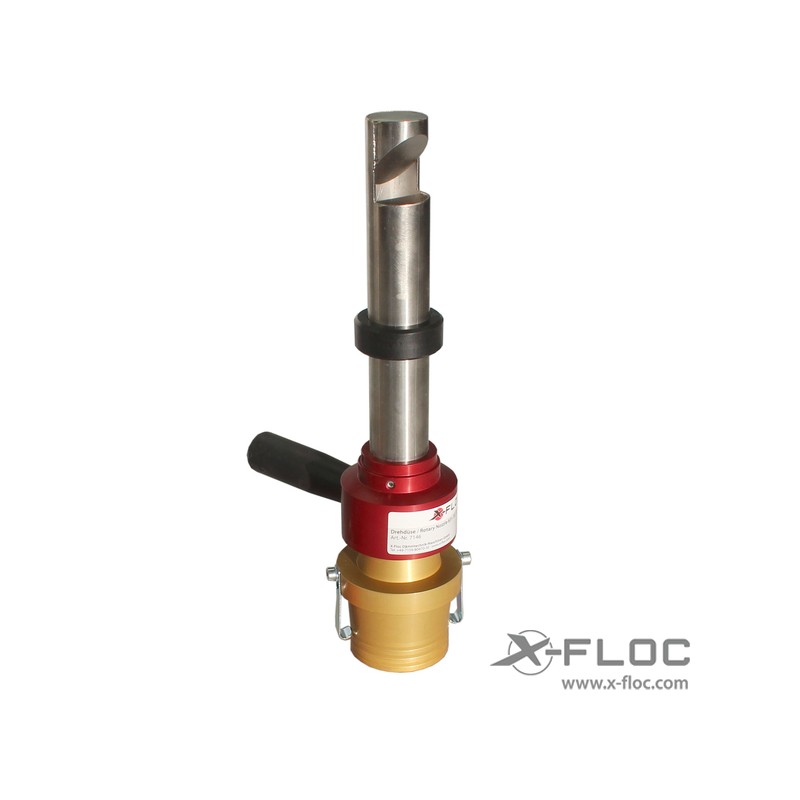

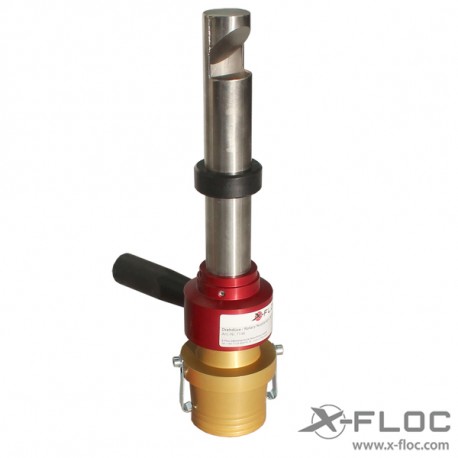

DD: Rotary nozzle 63-35mm / 45° outlet (increased wear-resistance)
7146
New product
DD: Rotary nozzle 63-35mm / 45° outlet (increased wear-resistance)
Details
Rotary nozzle for injecting insulation material.
Well suited for insulation works at large filling radii and when processing loose bulkware (e.g. SLS20, Rigibead, HK35, Thermofill S, Knauf Perlite and many more.). Enables a good suggestibility of the material flow.
Technical details:
- Material: aluminium, steel
- Insertion depth: max. 195 mm
- Overall length: 333 mm
- Nozzle pipe: inner diameter 32 mm, outer diameter 35 mm
- Hose connection: NW63 (2,5), rotatable
- Nozzle outlet: angled, 45°
- Bore hole: 35 mm
Scope of delivery:
- Rotary nozzle with carrying belt, distance ring and operating instructions
Well suited for insulation works at large filling radii and when processing loose bulkware (e.g. SLS20, Rigibead, HK35, Thermofill S, Knauf Perlite and many more.). Enables a good suggestibility of the material flow.
Technical details:
- Material: aluminium, steel
- Insertion depth: max. 195 mm
- Overall length: 333 mm
- Nozzle pipe: inner diameter 32 mm, outer diameter 35 mm
- Hose connection: NW63 (2,5), rotatable
- Nozzle outlet: angled, 45°
- Bore hole: 35 mm
Scope of delivery:
- Rotary nozzle with carrying belt, distance ring and operating instructions
