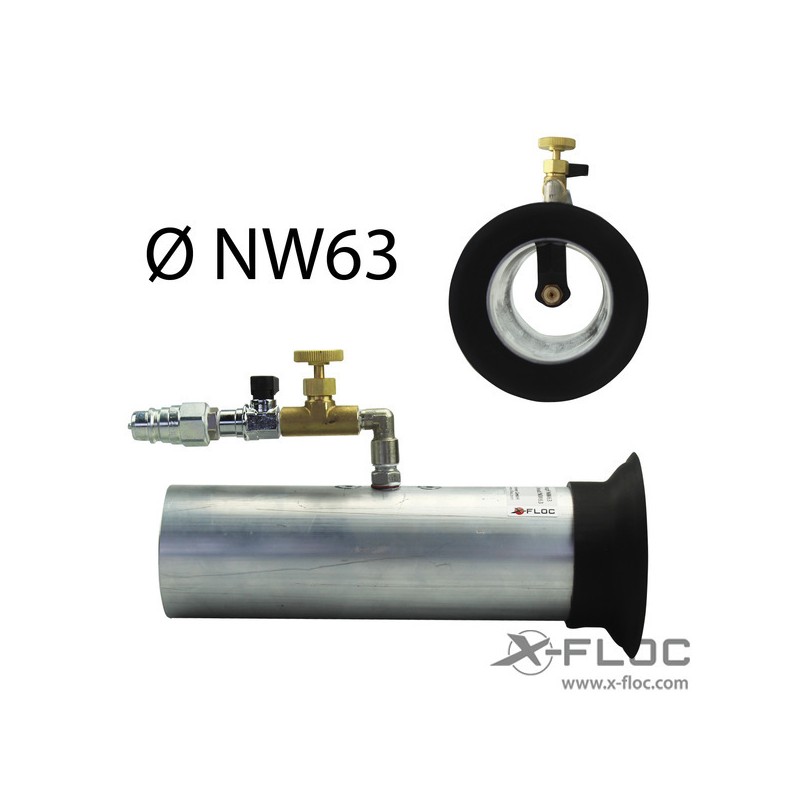

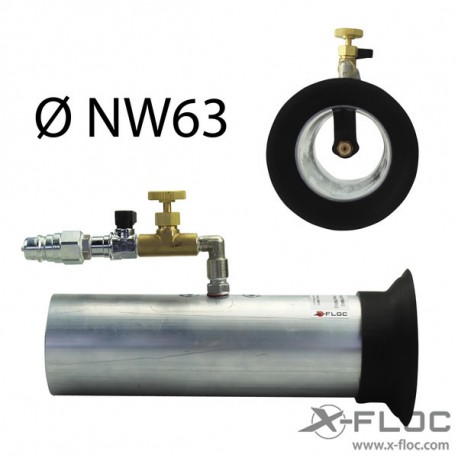

FSE: Spray head, Inline- type III NW63 (2½'') - set complete

In-line spray head for wet spray applications
------------------------------------------------------------------------------
Suitable for/as:
- Open inflation with the addition of water
- Hose connector with humidification function (inline humidifier), for dust reduction during the blow-in process (De-Dust)
------------------------------------------------------------------------------
Advantages:- Dust reduction during the injection process- Bundled material flow- Less material waste-
Easy and quick installation
------------------------------------------------------------------------------
Technical data:
- Dimensions (LxW): approx. 130x110mm
- Weight: approx. 235g - Hose connection: NW63 (2½'')
- Water pipe connection: NW12 - Number of nozzles: 1
- Pressure range: -10bar
- Pre-installed spray nozzle: FSE: Axial full cone nozzle 1.6l/min at 2bar
- Water quantity: approx. 1.21l/min at 1bar, approx. 3.05l/min at 10bar- Material: aluminum
------------------------------------------------------------------------------
Comments:
- If desired, the hose connection can be equipped with another plug system or a hose nozzle
- In combination with a solenoid valve, the water flow can be stopped when the machine is switched off
- Inline humidification is possible in combination with a diaphragm pump or a water tap connection.
-----------------------------------------------------------------------------
Optional accessories:
- FSE: Axial full cone nozzle 2.0 l/min (prod. No. 3539)
- FSE: Axial full cone nozzle 1,25 l/min (Art.-Nr. 3540)
- Hose connector turnable SDV63 (2½'') (prod. no. 6896)
- Hose connector NW63 (2½''), stainless steel (prod. no. 236)
- Reducer tube connector NW 75-63 (aluminium) (prod. no. 1261)
- FSE: Diaphragm pump p 20bar (prod. no. 206)
- FSE: High pressure hose, suitable for high pressure pumping system, available in lengths 15/30/50m (prod. no. 715/5054/5055)
- Magnetic valve, 2/2-ways, G 1/4" (prod. no. 8334)
- FSE: One-hand connector 1/4" (prod. no. 577)
- FSE: One-hand coupling 1/4" (prod. no. 576)
