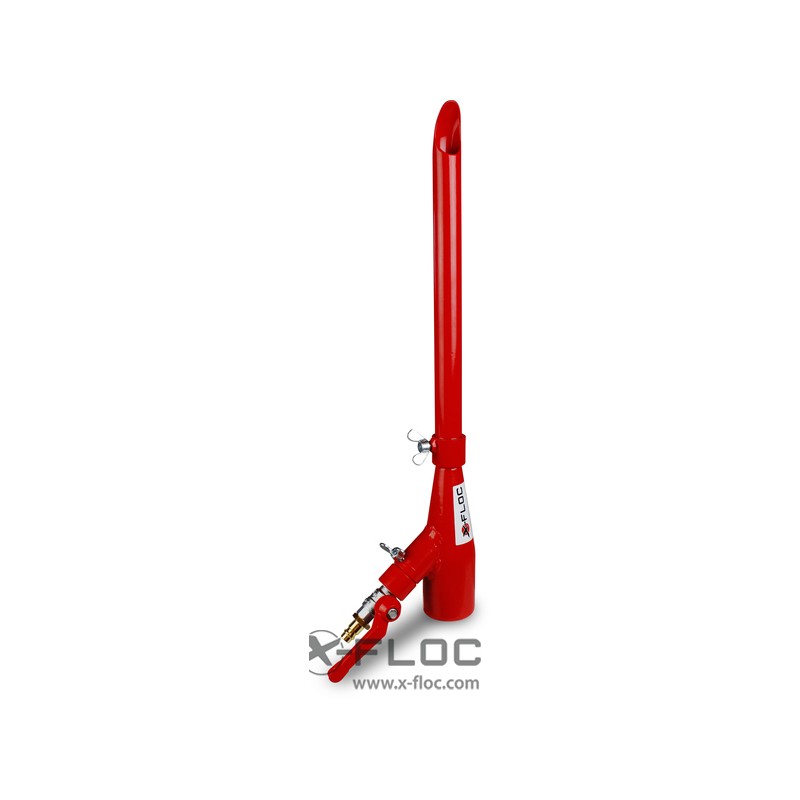

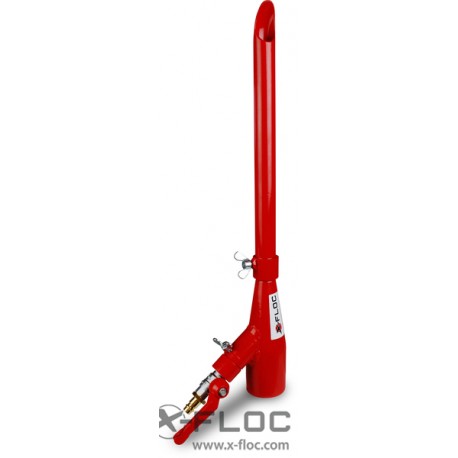

FSE: Spray head, Inline / adhesive- NW50-24

Adhesive spray head, Inline NW50-24

Spray head with inline nozzle for injection and adhesion of EPS granules. A complete wetting of the EPS beads enables a permanent solidification of the hollow layers insulation after the adhesive has been hardened. Settlements, material trickling out through gaps and cracks or subsequent changes can therefore not occur. The thin-walled nozzle pipe with its special shaped outlet enables a high processing speed at a relatively small bore diameter.

Characteristics:
- Hose connection for insulation material: NW50 (2)
- Nozzle pipe: outer diameter D 24mm, insertion depth approx. 260mm, spoon shaped outlet
- Easy to change nozzle pipe insert
- Connection for liquid adhesive: single-lever coupling (1/4) with shut-off valve (max. pressure 20bar)
- Material throughput: approx. 0,25l/min. at 10bar
- Weight: approx. 0,95kg

Note:
- Recommended liquid adhesive: Adhesive XF10 for bonding EPS granulate (art. no. 7976).

Other versions available at no extra charge:
- Fog nozzle with bore diameter 1.0mm, AG 1/4 (Art.-No. 9632)
- Fog nozzle with bore diameter 1.2mm, AG 1/4 (art. no. 9633)
