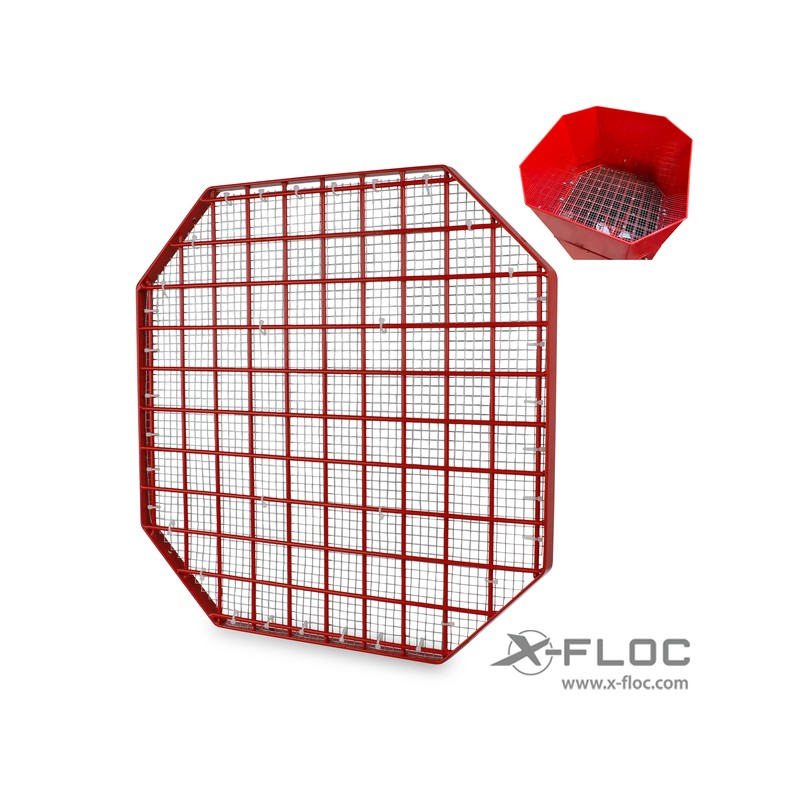

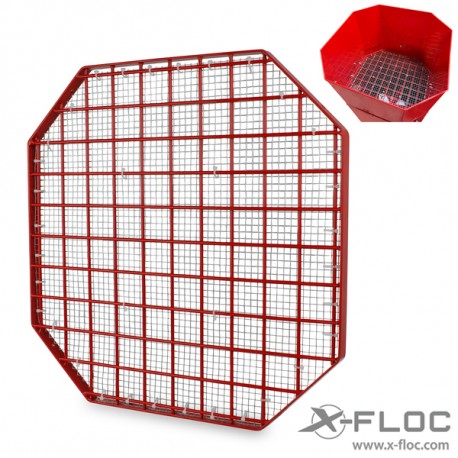

EM99: Detention grid for bulk materials

Detention grid for installation in the filling hopper of the X-Floc insulation blowing machine Minifant M99
------------------------------------------------------------------------------
By using the detention grid, insulation material particles with a diameter -10mm falling in the machines hopper bottom area and therefore into the conditioning unit and the rotary airlock can be prevented.
------------------------------------------------------------------------------
In the powder-coated grid (hole size 50x50mm) with surrounding robust metal frame, a weld grid with a hole size of 10x10mm is inserted.
------------------------------------------------------------------------------
Application:
Processing of loose bulk materials, e.g. EPS- or mineral granules
------------------------------------------------------------------------------
Advantage:
Due to the two-layer structure, the hole size can be easily adjusted to the applications requirements and may vary infinitely between 10x10 and 50x50mm.
------------------------------------------------------------------------------
Technical details:
Material (grid/frame): steel
Surface (grid/frame): powder coating, red (RAL3000)
Material (grid shelf): steel
Surface (grid shelf): galvanised
Dimensions: approx. 0.53x0.53m
Weight: approx. 2.98kg
------------------------------------------------------------------------------
Scope of delivery:
Detention grid, mounted ready for use
