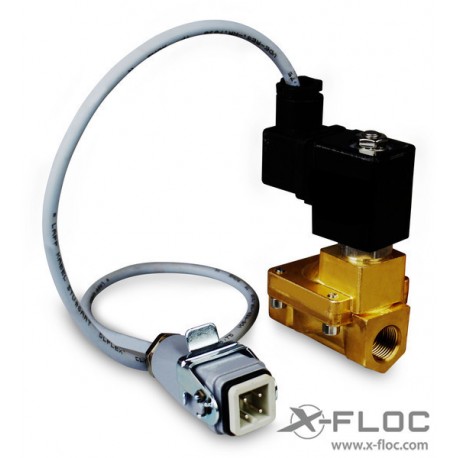

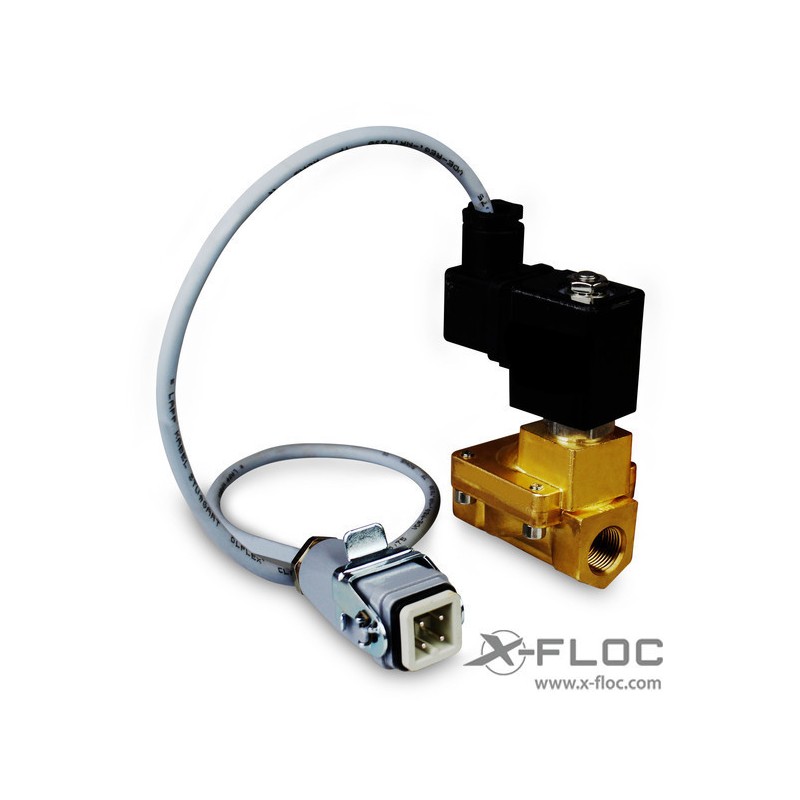

Magnetic valve, 2/2-ways, G 1/4"

2/2-ways magnetic valve
------------------------------------------------------------------------------
Magnetic valve for installation into the water promoting hose at the Inline-humidification
------------------------------------------------------------------------------
Suitable for:
- Inline-humidification
- Applications with damp-spraying
------------------------------------------------------------------------------
Advantages and limitations:
The water flow will be stopped when switching the machine off. Note: If the air flow is active, the magnetic valve is open. For this reason, we recommend to start/stop the air- and material flow always at the same time.
------------------------------------------------------------------------------
Technical details:
Power supply: 24V DC
Thread: G ¼
Diameter: 3mm
Length: 40mm
Working pressure: 0-13bar
Throughput: 3,2l/min.
Weight: 360g
Material: brass
Operating temperature: approx. -10°C to 80°C
------------------------------------------------------------------------------
Scope of delivery:
- 1x Magnetic valve with control cable and auxiliary power plug (length approx. 0.5m)

------------------------------------------------------------------------------
Advice:
For connection with blowing machine extra control cable is required (Art.-No. 1856, 1351, 1193, 1192)
