Details

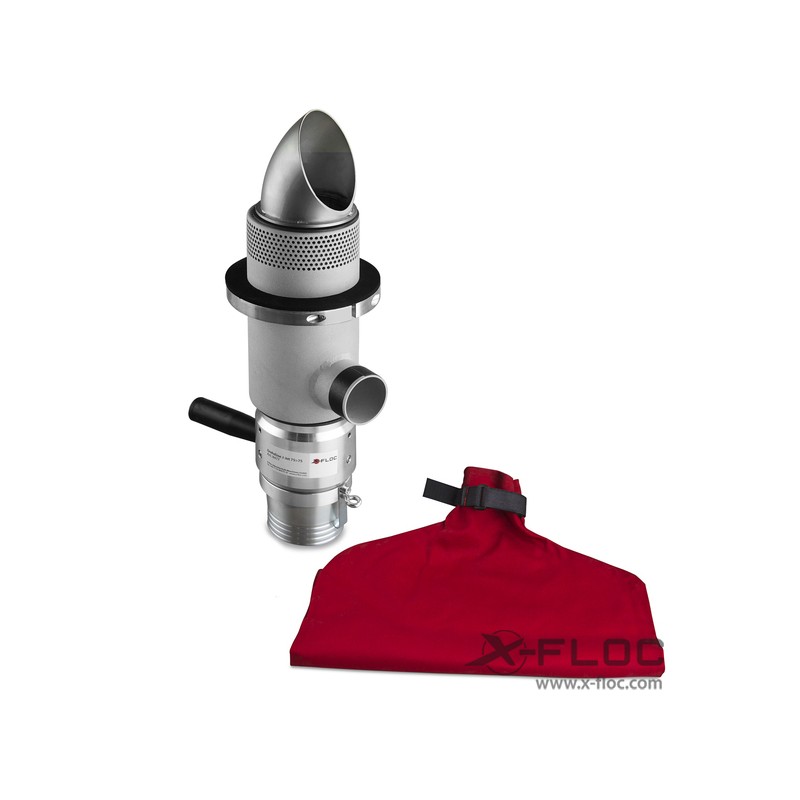

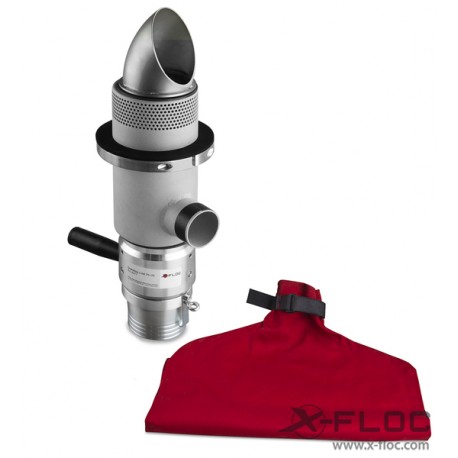

Vented rotary nozzle J-Jet 75-75 for blowing in wall constructions.
Product description:
Rotatable nozzle tube d 85 for filling corners. Hose connection NW75 (3'') with easily rotatable coupling piece. Venting via perforated aluminium cage and dust bag. Fixation in the injection hole by means of a lever-locked sash lock. Adjustable flange for planking materials of different thicknesses (10..75 mm).
Applicability with regard to insulation thickness:
-145 mm: optimal application, fixable with sash lock
120..160 mm: can be used without fixation
Drill hole diameter for fixing: Ø 105-120 mm (larger drill holes possible with adapter)
Dimensions: approx. 360 mm x 105 mm (LxD)
Hose connection: NW75 (3'')
Tube diameter: 75 mm (outside)
Weight: approx. 2.6 kg
Optional accessories:
- Cylinder saw hard metal tipped D 105 mm (art. no. 4966)
