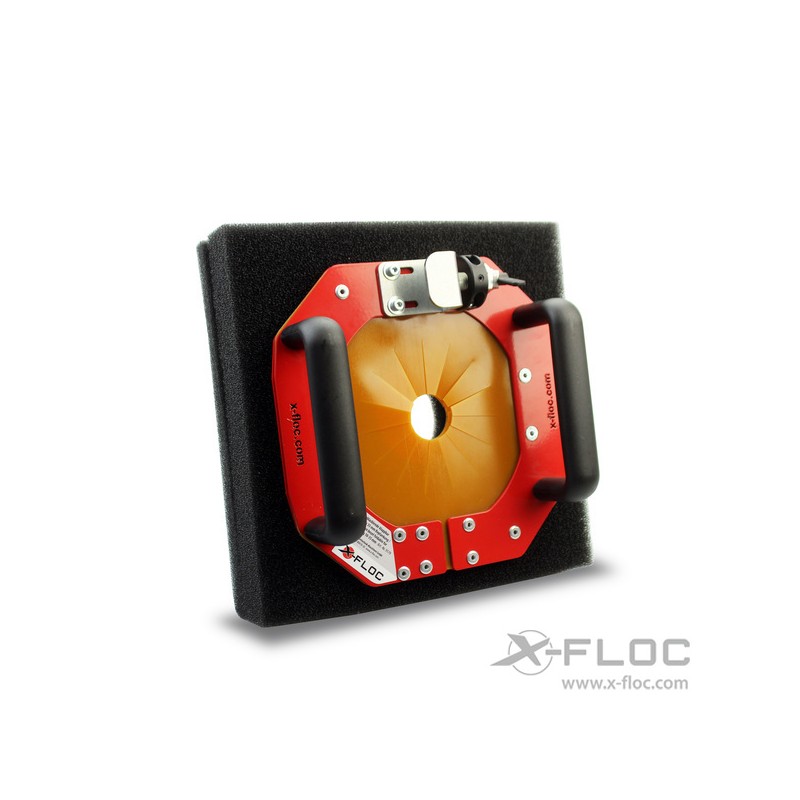

Universal injection bezel for panelling t 12..25mm

The universal injection bezel is a handy tubing port for fastening in the drill hole by clamps. Due to the clamping mechanism, the injection bezel can be easily fixed in a drill hole or long hole. When used eliminates the need to manually seal the injection port against unwanted material or dust outlet.
The hands remain free to guide the hose or the injection tool and the operation of the machine control. The extremely tear-resistant rubber membrane reliably seals against both smooth surfaces (e.g., insulating needles) or hoses (e.g., injection or delivery hose). The air-permeable sealing sponge compensates for different planking thicknesses and allows the excess air coming into the compartment to be easily vented.

Depending on the version can be used for:
- All injection nozzles of diameter D 30 to 75mm
- All rotary nozzles of diameter D 45 to 75mm
- Insulating needles NW38(1½''), NW50(2''), NW63(2½'') and NW75(3'')
- Injection hoses and delivery hoses NW38(1½''), NW50(2''), NW63(2½''), NW75(3'') and NW90(3½'')

Technical data:
- Can be used with panelling depth s approx. 12 to 25mm
- Required drilling hole: D 95 to 120mm
- Rubber membrane to seal the injection bezel
- Default: rubber membrane D 45mm best suitable for hoses and injection needles NW50(2") to NW63(2½")

Note / Option / Different versions possible (please specify when ordering):
-- Rubber membrane D 68mm (Art.No. 8904) best suitable for hoses and injection needles NW63(2½") to NW75(3")
-- Rubber membrane D 30mm (Art.No. 8842) best suitable for hoses and injection needles NW38(1½") to NW50(2")
