WB: System EM430 + EP800 for factory filling of wooden frame elements

Factory filling system including insulation blowing machine, blowing panel based on 5 spring-mounted blow-out nozzles, automatic logging of all relevant blow-in parameters. Incl. 40m transport hose (with earthing strand) and 50m connecting line between blow-in machine and blow-in panel.
The factory filling system consists of components which can be used individually and complies with the applicable machinery directive (CE conformity). The system, which is linked from several components, forms an independent system which also has CE conformity.

Technical data insulation blowing machine and blowing plate:
- Technical data blow-in machine EM430 see brochure.
- Dimensions (standard): approx. 3,000x900x500mm (LxWxH, different lengths possible, see options and "Technical data blow-in panel EP800")
- Weight: approx. 280-400kg (depending on length and options)
- Power supply: 230V/50Hz/16A
- Compressed air supply: filtered compressed air required, pressure 6-10 bar at approx. 55l/min
- Number of spring-loaded injection nozzles: 5 pieces (different number possible/required, see options)
- Hose connection and internal tubing: NW90 (3½'')
- Throughput: depending on the blow-in thermal insulation material used and the upstream blow-in machine, up to 1,800kg/h
- Control: PLC panel PC (Beckhoff) with touch display (alternatively with wireless tablet PC on request).
- Quality control: Automatic in conjunction with optional weighing unit of the blow-in machine or GBF or GBA or GBL
- Networking with X-Floc injection machines for an automatic injection process possible.
- Blowing-in process: System-guided / Automatic

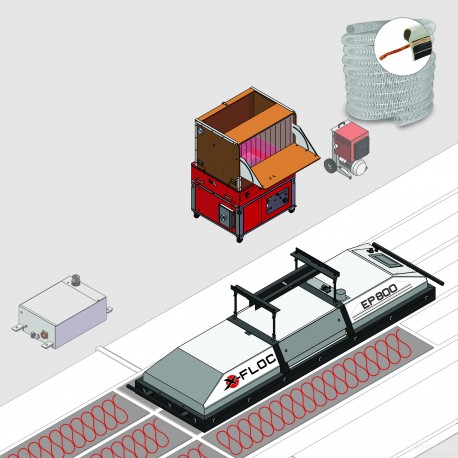

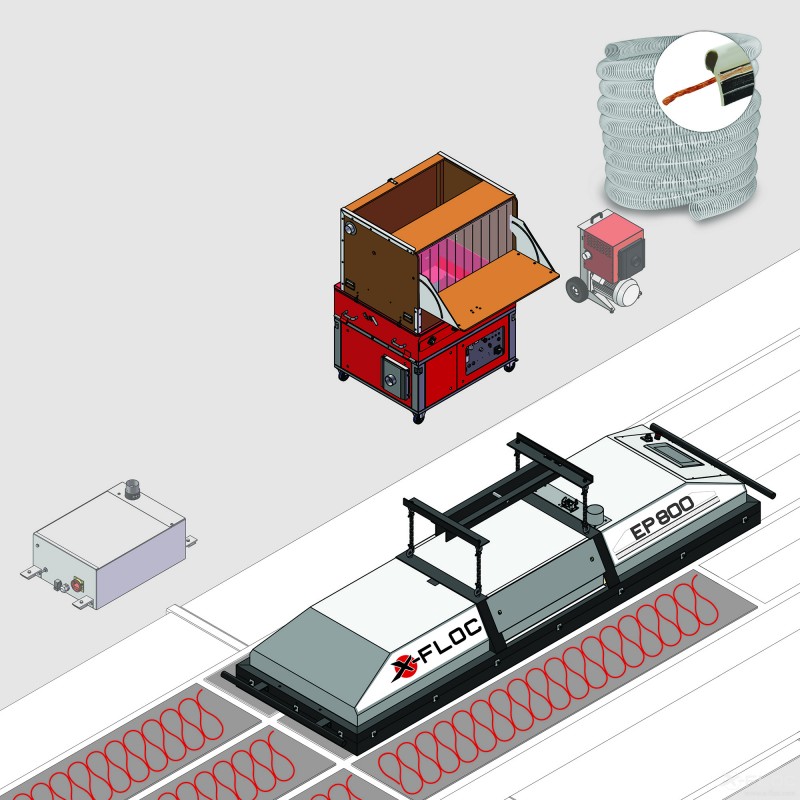

Factory filling plant, consisting of:
01. EM 430-400V/9,5kW High-powered insulation blowing machine (prod. no. 5802)
02. EM4XX/5XX: Additional option DS - Adjustable airlock rotation speed (prod. no. 5060)
03. EM4XX: Additional package for integrating the insulation blowing machine into a factory filling system (prod. no. 8615)
04. WB: EP800-NW75-Blowing Panel for industrial element filling (prod. no. 7992)
05. EP: Additional package for integrating the insulation blowing panel (EP) into a factory filling system (prod. no. 8617)
06. Control cable 50m for interlinking EM4XX -- Blowing panel (prod. no. 8618)
07. Conveyor hose NW90 (3½'') with flexible earthing braids, L 20m (2 pcs. Art.-Nr. 8911)
08. Hose connector NW90 (3½'') stainless steel (Art.-Nr. 1452)
09. Hose clamp NW90 (3½'') (4 pcs. Art.-Nr. 1923)

Options:
- Protective hose with Velcro fastener for cable package blow-in machine - blow-in panel (art. no. 10291, e.g. 16m).
- EP800: Surcharge for built-in panel PC with 10.1'' touch screen instead of 7.0" (Art.-No. 10843)
- EP800: Extension by 500mm (surcharge) (Art. No. 11035)
- EP800: Extension with 1 piece injection module (Art. No. 11030)
- Direct reducer piece NW90-75 (3½-3'') (EM4XX-NW90 after year 06/2018) (Art.-Nr. 8936)
- EM4XX: Additional option hopper top piece V 0,914m³ (Art.-Nr. 8522)
- Accessories set NW75/63 for loose-fill insulation (nonabrasive) (Art.-Nr. 5246)
- Accessories set NW90/75 for loose-fill insulation (nonabrasive) (Art.-Nr. 9188)
- VS: Amplifier station module amplifier VS40 (Art.-Nr. 10309) or VS: Amplifier- / Suction station VS55 mobil (Art.-Nr. 9455) of VS: Amplifier- / Suction station VS75 mobil (Art.-Nr. 9793), recommended for the processing of wood fibre and rock wool for hose lengths of more than 30-40m between the insulation blowing machine and the blowoing panel
- VS: Connection set for amplifier NW63/NW90-NW90 (Art.-Nr. 7870)
- VS: Suction drum V 115L (Art.-Nr. 1160)
- VS: Suction drum V 250L (Art.-Nr. 3075)

Costs in addition with delivery, commissioning, training and modification on the respective insulation materials and applications.
