WB: EP800-NW90-Blowing Panel for industrial element filling

Blowing panel for the industrial processing of suitable, loose insulation materials, such as cellulose, wood fibre, glass fibre, mineral fibre, etc.
Suitable for filling elements that are open on one side, such as wall, floor or roof elements in timber frame construction.

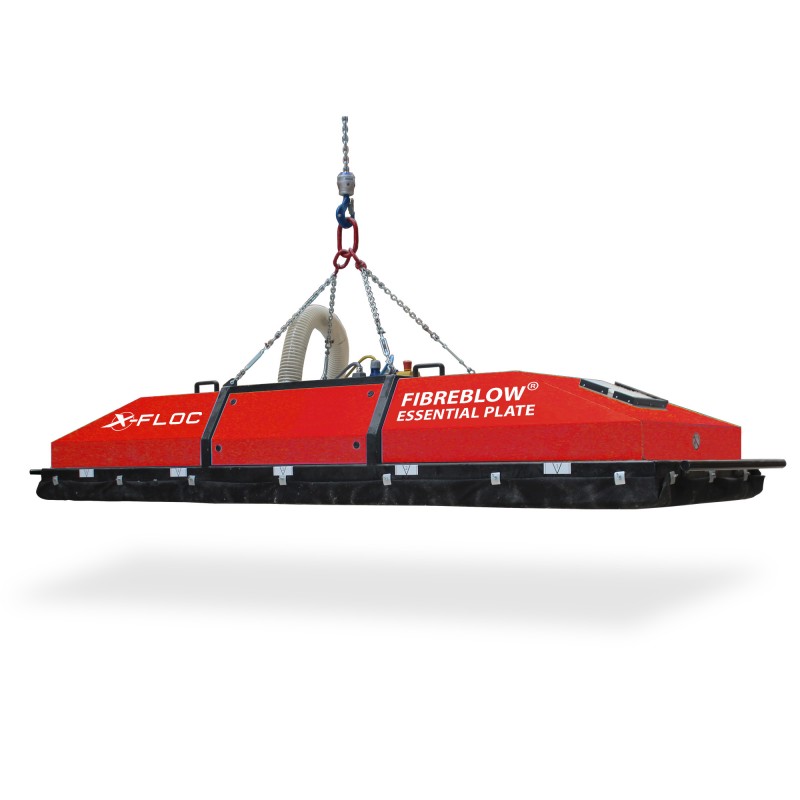

The blowing panel can be placed on the horizontal, open-top elements by means of a (gantry or hall) crane, bridge or robot and can be filled manually or automatically with loose insulating material.

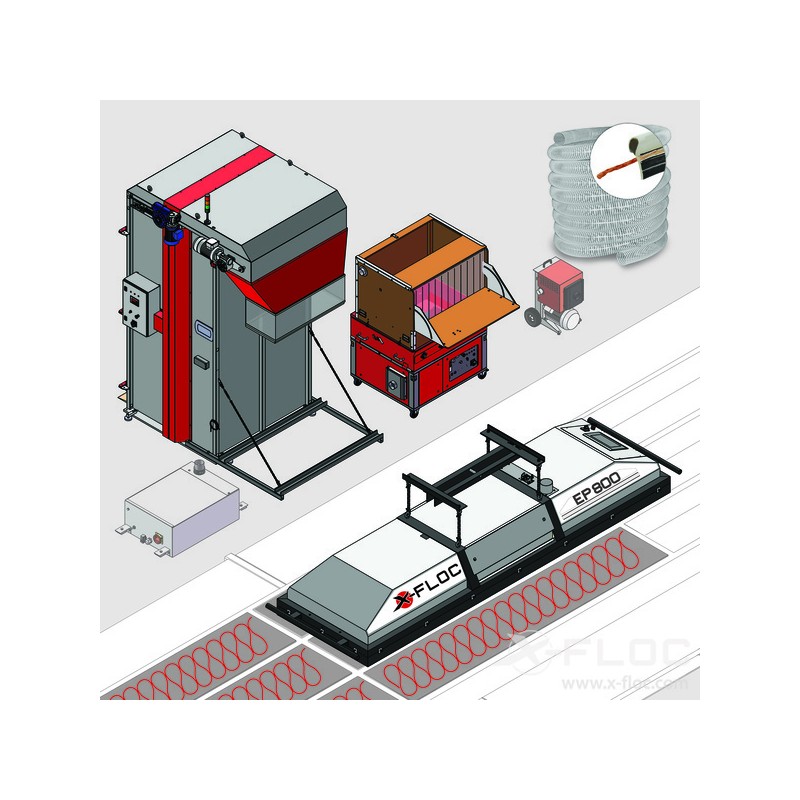

Integration into an automated production line and control by a control system is possible.

-----------------------------------------------------------
Advantages:
- Fast, efficient and reliable insulation process
- Simplification of the production steps
- Easy to understand control system
- Homogeneous filling through five or more injection openings
- Precise quality control by means of a display in conjunction with weighing
- Simple selection of element geometry
- Simple activation/deactivation of injection nozzles
- Manual or automated filling of the elements with a homogeneous density distribution
- Logging of the blowing process (blowing mass, blowing time, project name, element designations)

-----------------------------------------------------------
Technical data:
- Dimensions (standard): approx. 3,000x900x500mm (LxWxH, different lengths possible, see options and Technical data of EP800 blow-in panel)
- Weight: approx. 280-480kg (depending on length and options)
- Power supply: 230V/50Hz/16A
- Compressed air energy supply: filtered compressed air required, pressure 6-10 bar at approx. 55l/min
- Number of spring-loaded injection nozzles: 5 pieces (different number possible/required, see options)
- Hose connection and internal tubing: NW90 (3½)
- Throughput: up to 1,800 kg/h depending on the blow-in thermal insulation material used and the upstream blow-in machine
- Control: built-in industrial PC with 10 touch display (real-time PLC)
- 1-channel emergency stop safety circuit for interlinking with compatible components
- WiFi industrial router for integration into a network and remote access
- Networking with X-Floc blowing machines for an automatic blowing process possible.
- Blowing process: System-guided / automatic

-----------------------------------------------------------
Evaluation:
Settings, blowing time, blowing quantity, date, installation density, (if weighing unit available) and other data are logged automatically and continuously.

-----------------------------------------------------------
Notes:
Every company has different processes and construction requirements.
We can customise the blow-in system to your individual requirements with individual advice. This allows you to maximise the benefits for your processes. Get in touch with us!

-----------------------------------------------------------
Options:
- WB: Connection set for WBS800 (item no. 12064)
- WB: Protective hose with Velcro fastener for cable package blowing machine---blowing plate (art. No. 10291)
- EP800: Extension by up to 500mm (surcharge) (art. No. 11035)
- EP800: Extension by 1 blow-in module (item no. 11030)
- VS: Amplifier station module amplifier VS40 (art. No. 10309)
- Fixed pipework NW90 (3½) (item no. 10645)
- Control cable 50m for linking EM4XX -- blow-in plate (item no. 8618)
- USB stick 1GB USB2.0 (industrial grade) (item no. 12482)

Example weight specifications:
- EP800-L 3,200mm (without amplifier, incl. Weighting): ___kg
- EP800-L 4,000mm (without amplifier, incl. Weighting): 412kg
